TLV3501AIDBVR

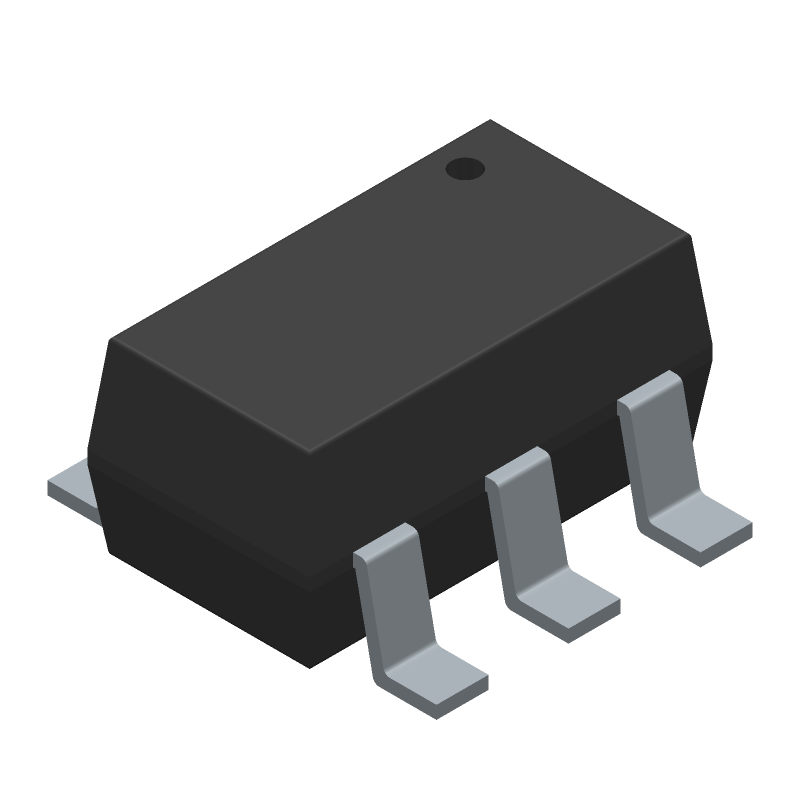

High-speed comparator featuring a 4.5ns response time and 10ns propagation delay. This single-channel, rail-to-rail comparator operates from a 2.7V to 5.5V supply voltage, with a maximum supply current of 5mA. It offers a 70dB Common Mode Rejection Ratio and 100dB Power Supply Rejection Ratio. The device is housed in a 6-pin SOT-23 surface-mount package and supports TTL, Push-Pull output types. Operating temperature range is -40°C to 125°C.
Similar Components
CD4011
The CD40117BPWE4 is an 8-bit termination IC from Texas Instruments, featuring a TSSOP-14 package and operating within a temperature range of -55°C to 125°C. This IC is designed to be RoHS compliant and is suitable for use with an operating supply voltage of 18V. It is available in quantities of 1080, packaged in rail/Tube packaging. The CD40117BPWE4 is a member of the 4000B series.
CD4069
CMOS Hex Inverter 14-CDIP -55 to 125
CD4543
CMOS BCD-to-Seven-Segment Latch/Decoder/Driver for Liquid-Crystal Displays. Features 4 input lines, 7 output lines, and a 400ns propagation delay. Operates with a minimum supply voltage of 3V and a maximum of 18V, supporting a bandwidth of 8MHz. This demultiplexer and decoder IC is designed for LCD displays and operates across a temperature range of -55°C to 125°C. Packaged in a 16-PDIP with a non-inverting polarity.
NE5534D
10MHz Low-Noise Op Amp, 15V, 1-Ch, 8-SOIC
INA2126UAE4
Dual instrumentation amplifier with a 9kHz bandwidth and 200kHz -3dB bandwidth. Features a 74dB Common Mode Rejection Ratio, 500µV input offset voltage, and 50nA input bias current. Operates with dual supply voltages from ±1.35V to ±18V or a single supply from 2.7V to 36V. Offers 80dB voltage gain, 0.4V/µs slew rate, and 35nV/√Hz input voltage noise density. Packaged in a D surface-mount case, this RoHS compliant component is suitable for a wide operating temperature range of -40°C to 85°C.
NE555D
Standard Timer Single 0°C 70°C 8-Pin SOIC Tube
About TLV3501AIDBVR
The Texas Instruments TLV3501AIDBVR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High-speed comparator featuring a 4.5ns response time and 10ns propagation delay. This single-channel, rail-to-rail comparator operates from a 2.7V to 5.5V supply voltage, with a maximum supply current of 5mA. It offers a 70dB Common Mode Rejection Ratio and 100dB Power Supply Rejection Ratio. The device is housed in a 6-pin SOT-23 surface-mount package and supports TTL, Push-Pull output types. Operating temperature range is -40°C to 125°C.. Key parameters include Common Mode Rejection Ratio: 70dB, Hysteresis: 6mV, Input Bias Current: 10pA, Input Offset Voltage (Vos): 6.5mV, and Lead Free: Lead Free. TLV3501AIDBVR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TLV3501AIDBVR specifications
Click to ask a quick question:
Parameters
| Common Mode Rejection Ratio | 70dB |
| Hysteresis | 6mV |
| Input Bias Current | 10pA |
| Input Offset Voltage (Vos) | 6.5mV |
| Lead Free | Lead Free |
| Max Input Current | 10pA |
| Max Operating Temperature | 125°C |
| Max Supply Current | 5mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 74mA |
| Output Type | TTL, PUSH-PULL |
| Package/Case | SOT-23-6 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 100dB |
| Propagation Delay | 10ns |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 0.0045us |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Technology | CMOS |
| TME | —1$3.05—$2.61—pcsView offer |
| Type | General Purpose |
