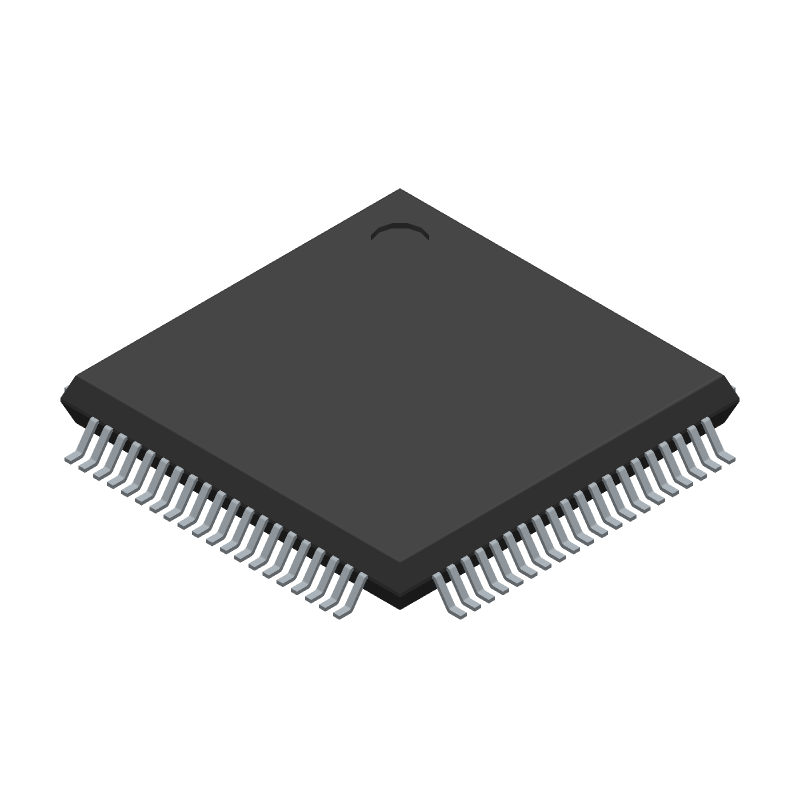

MSP430FR5994IPNR
16-bit RISC microcontroller featuring 256KB of FRAM and 8KB of SRAM. Operates at up to 16 MHz with a 24 MHz maximum clock frequency. Includes Low-Energy Accelerator (LEA), AES hardware encryption, a 12-bit ADC, comparator, and DMA. Supports UART, SPI, and I2C communication interfaces, along with PWM channels. Housed in an 80-terminal QUAD LQFP package, rated for industrial temperatures from -40°C to 85°C, with a supply voltage range of 1.8V to 3.6V.
Similar Components
MSP430F5529IPN
16-bit microcontroller operating at 25MHz, featuring 128KB Flash and 8KB RAM. This MCU offers a 12-bit ADC with 16 channels, a comparator, and DMA for efficient data transfer. Integrated peripherals include UART, SPI, I2C, and USB, alongside a hardware multiplier. Packaged in an 80-pin LQFP, it supports a wide operating temperature range of -40°C to 85°C and a supply voltage from 1.8V to 3.6V.
MSP430FR5969IRGZT
16-bit RISC microcontroller featuring 64KB of Ferroelectric RAM (FRAM) and 2KB of SRAM. Operates at a maximum clock frequency of 24 MHz, with a typical speed of 16 MHz. Includes an integrated 12-bit Analog-to-Digital Converter (ADC), comparator, and DMA controller. Supports UART, SPI, and I2C communication interfaces. Packaged in a 48-VQFN with a temperature grade of INDUSTRIAL (-40°C to 85°C).
MSP430G2553IN20
16-bit RISC microcontroller operating at up to 16 MHz. Features 16KB of FLASH program memory and 512 bytes of SRAM. Includes a 10-bit Analog-to-Digital Converter (ADC), comparator, and multiple communication interfaces: UART, SPI, and I2C. Offers 16 I/O lines and a timer with PWM capabilities. Supplied in a 20-pin PDIP package, rated for industrial temperature ranges of -40°C to 85°C.
About MSP430FR5994IPNR
The Texas Instruments MSP430FR5994IPNR Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 16-bit RISC microcontroller featuring 256KB of FRAM and 8KB of SRAM. Operates at up to 16 MHz with a 24 MHz maximum clock frequency. Includes Low-Energy Accelerator (LEA), AES hardware encryption, a 12-bit ADC, comparator, and DMA. Supports UART, SPI, and I2C communication interfaces, along with PWM channels. Housed in an 80-terminal QUAD LQFP package, rated for industrial temperatures from -40°C to 85°C, with a supply voltage range of 1.8V to 3.6V.. Key parameters include Bit Size: 16, Clock Frequency-Max: 24, DAC Channels: NO, DMA Channels: YES, and Eccn Code: 5A992C. MSP430FR5994IPNR is manufactured by Texas Instruments as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about MSP430FR5994IPNR specifications
Click to ask a quick question:
Parameters
| Bit Size | 16 |
| Clock Frequency-Max | 24 |
| DAC Channels | NO |
| DMA Channels | YES |
| Eccn Code | 5A992C |
| Has ADC | YES |
| JEDEC Package Code | S-PQFP-G80 |
| Lead Free | Yes |
| Length | 12 |
| Max Operating Temperature | 85 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of I/O Lines | 68 |
| Number of Terminals | 80 |
| PWM Channels | YES |
| RAM (bytes) | 8192 |
| REACH | Compliant |
| RoHS | Yes |
| ROM Programmability | FRAM |
| ROM (words) | 256K |
| Speed | 16 |
| Supply Voltage-Max | 3.6 |
| Supply Voltage-Min | 1.8 |
| Supply Voltage-Nom | 2.2 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Width | 12 |
