OPA365AIDBVR

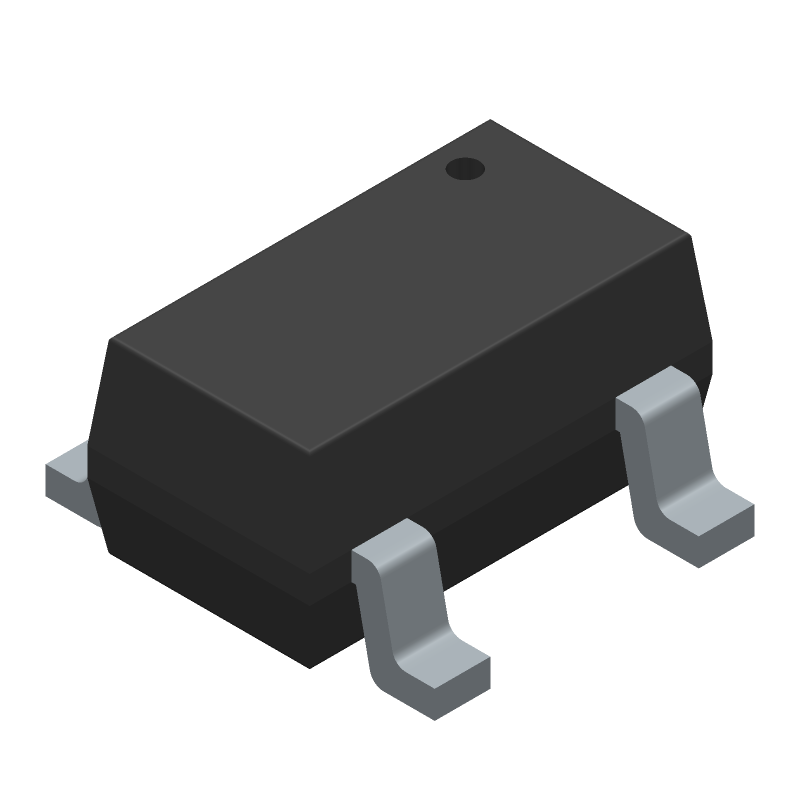

Single-supply, rail-to-rail operational amplifier featuring 50MHz bandwidth and 25V/µs slew rate. This general-purpose amplifier offers 120dB voltage gain and 100dB CMRR/PSRR, with low input bias current of 10pA and 200µV input offset voltage. Operating from a 2.2V to 5.5V supply, it delivers 65mA output current and consumes 4.6mA supply current. Packaged in a compact SOT-23, this CMOS device operates from -40°C to 125°C.
Similar Components
CD4049
6-channel CMOS buffer/inverter IC, operating from 3V to 18V, features 6 independent inverting logic gates. This surface-mount device in a 16-SOIC package offers a high level output current of -5.2mA and a low level output current of 4.3mA. With a propagation delay of 50ns and a quiescent current of 4uA, it supports a wide operating temperature range of -55°C to 125°C. The component is lead-free, RoHS compliant, and utilizes gold contact plating.
CD4017BE
The CD4017BE is a 10-bit counter IC from Texas Instruments, packaged in a DIP with a through-hole mount. It features a positive edge trigger type and operates over a temperature range of -55°C to 125°C. This lead-free device is RoHS compliant and suitable for use in synchronous applications.
ULN2003ADR
Seven-channel NPN Darlington transistor array for surface mounting in a 16-SOIC package. Features a 50V collector-emitter breakdown voltage and a maximum collector current of 500mA. Operates within a temperature range of -20°C to 70°C. This RoHS compliant component is designed for automotive applications and AEC-Q100 qualification.
CD4030BE
Dual XOR Gate IC, 14-Pin DIP, 5V, 18V, -55C to 125C
CD4027
Dual JK-type master-slave flip-flop IC, positive edge triggered, featuring two independent elements. Operates with a 3V to 18V supply voltage, offering a maximum frequency of 24MHz. This CMOS logic component provides 4.2mA high-level and 4.2mA low-level output current, with a typical quiescent current of 4uA. Packaged in a 16-pin PDIP with gold contact plating, it supports through-hole mounting and is RoHS compliant.
LM318N/NOPB
15MHz Op Amp, 70V/µs Slew Rate, 20V, 1-Ch, DIP
About OPA365AIDBVR
The Texas Instruments OPA365AIDBVR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single-supply, rail-to-rail operational amplifier featuring 50MHz bandwidth and 25V/µs slew rate. This general-purpose amplifier offers 120dB voltage gain and 100dB CMRR/PSRR, with low input bias current of 10pA and 200µV input offset voltage. Operating from a 2.2V to 5.5V supply, it delivers 65mA output current and consumes 4.6mA supply current. Packaged in a compact SOT-23, this CMOS device operates from -40°C to 125°C.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 50MHz, Common Mode Rejection Ratio: 100dB, Gain Bandwidth Product: 50MHz, and Height: 1.45mm. OPA365AIDBVR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about OPA365AIDBVR specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 50MHz |
| Common Mode Rejection Ratio | 100dB |
| Gain Bandwidth Product | 50MHz |
| Height | 1.45mm |
| Input Bias Current | 10pA |
| Input Offset Voltage (Vos) | 200uV |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max I/O Voltage | 200uV |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.2V |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 4.6mA |
| Output Current | 65mA |
| Output Current per Channel | 65mA |
| Package/Case | SOT-23 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 100dB |
| Quest | 2728——$4.4——View offer |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 25V/µs |
| Supply Current | 5mA |
| Technology | CMOS |
| Thickness | 1.2mm |
| Unity Gain Bandwidth Product | 50MHz |
| Voltage Gain | 120dB |
| Width | 1.6mm |
