TCA9535PWR

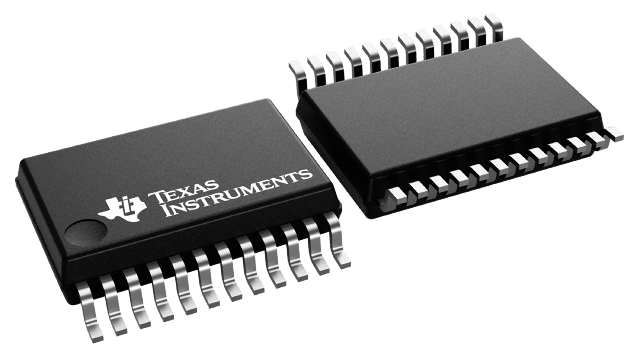

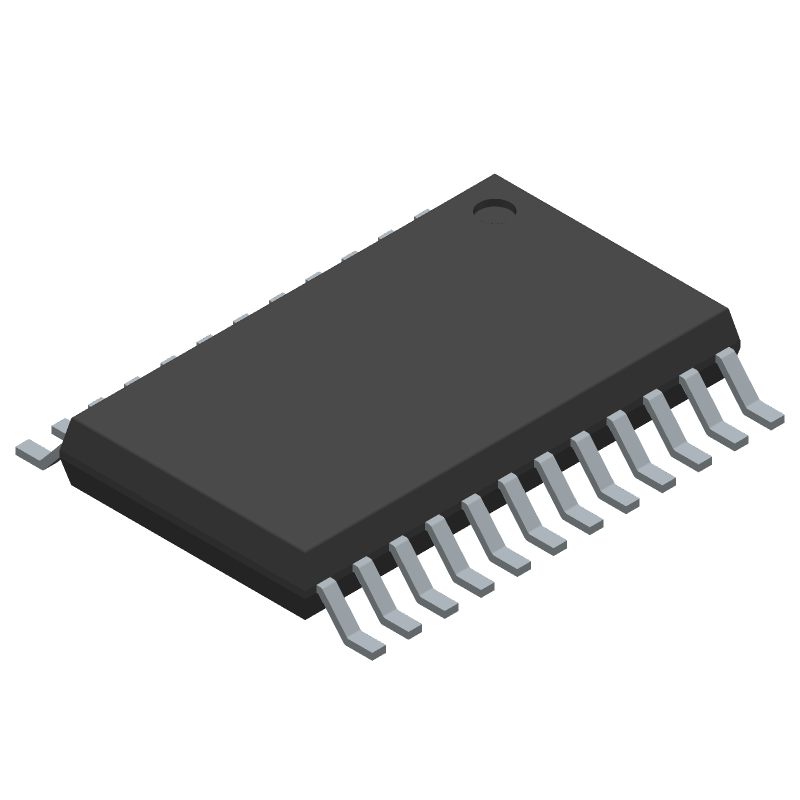

16-channel I/O Expander with I2C/SMBus interface supporting 100kHz and 400kHz communication frequencies. Features a maximum supply voltage of 5.5V and a minimum of 1.65V, operating across a temperature range of -40°C to 85°C. This component utilizes a push-pull output type and is housed in a compact 24-pin TSSOP package measuring 7.8mm x 4.4mm x 1.2mm. Supplied on tape and reel with 2000 units per package, it is RoHS compliant.
Similar Components
OPA2350UA
Dual, single-supply, rail-to-rail operational amplifier featuring 38MHz bandwidth and 22V/µs slew rate. This general-purpose amplifier offers low input bias current of 10pA and input voltage noise density of 7nV/sqrt Hz. Operating from 2.7V to 5.5V, it provides 40mA output current per channel and boasts a 122dB voltage gain. The 8-SOIC package is RoHS compliant and suitable for operation between -40°C and 85°C.
MAX232D
Dual Transmitter/Receiver RS-232 Interface IC, full duplex operation with two transmitters and two receivers. Features 120Kbps data rate, 5V operating supply voltage (4.5V to 5.5V range), and 10mA max supply current. Surface mountable in a 16-pin SOIC package (3.91mm width, 9.9mm length, 1.58mm height) with ESD protection. Operating temperature range from -40°C to 85°C, lead-free and RoHS compliant.
CD4532BE
8-Bit Priority Encoder CMOS 3-Output 16-Pin PDIP
LMC555CMM/NOPB
Single Timer IC, 3MHz, 15V, 150uA, MSOP, Surface Mount
LM318
Single operational amplifier featuring a 15MHz bandwidth and 70V/µs slew rate. This general-purpose amplifier offers a 70dB common mode rejection ratio and a voltage gain of 106.02dB. Designed for through-hole mounting in an 8-pin DIP package, it operates from a 5V to 20V dual supply voltage. The component is lead-free, RoHS compliant, and suitable for operation between 0°C and 70°C.
CD4069
CMOS Hex Inverter 14-CDIP -55 to 125
About TCA9535PWR
The Texas Instruments TCA9535PWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 16-channel I/O Expander with I2C/SMBus interface supporting 100kHz and 400kHz communication frequencies. Features a maximum supply voltage of 5.5V and a minimum of 1.65V, operating across a temperature range of -40°C to 85°C. This component utilizes a push-pull output type and is housed in a compact 24-pin TSSOP package measuring 7.8mm x 4.4mm x 1.2mm. Supplied on tape and reel with 2000 units per package, it is RoHS compliant.. Key parameters include Frequency: 400kHz, Height: 1.2mm, Lead Free: Lead Free, Length: 7.8mm, and Max Frequency: 400kHz. TCA9535PWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TCA9535PWR specifications
Click to ask a quick question:
Parameters
| Frequency | 400kHz |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Number of I/Os | 16 |
| Output Type | PUSH-PULL |
| Package/Case | TSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 1,1405—$3.3134—$2.4014PackView offer |
| Thickness | 1mm |
| TME | 1,3131$0.87—$0.83—pcsView offer |
| Weight | 0.007478oz |
| Width | 4.4mm |
