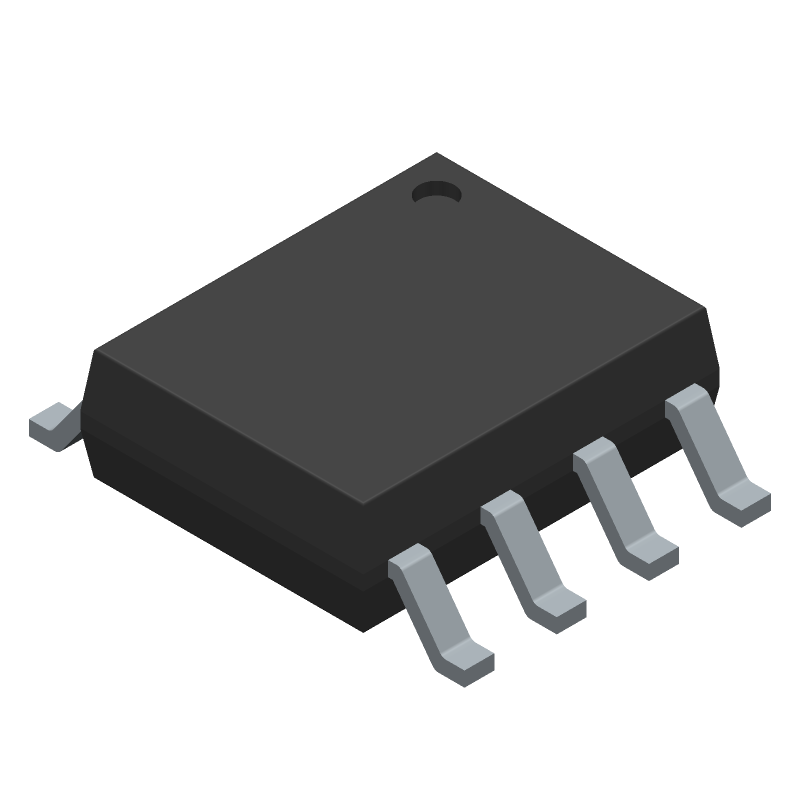

TCAN1042HVDQ1
Automotive 70-V bus-fault-protected CAN transceiver with I/O level shifting and flexible data-rate 8-SOIC -55 to 125
Similar Components
NE5534D
10MHz Low-Noise Op Amp, 15V, 1-Ch, 8-SOIC
LM675T/NOPB
Power Op Amp, 5.5MHz BW, 3A Out, TO-220, 8-30V Dual Supply
ADS1256IDBTG4
24-Bit 30kSPS 8-Ch Delta-Sigma ADC, SPI, SSOP
LMC555CMM/NOPB
Single Timer IC, 3MHz, 15V, 150uA, MSOP, Surface Mount
ADS1015IDGSR
A precision 12-bit Analog-to-Digital Converter (ADC) offers up to four single-ended or two differential input channels, featuring an integrated programmable gain amplifier (PGA), internal reference, and oscillator for streamlined sensor measurement. It provides flexible sampling rates ranging from 128 SPS to 3300 SPS, leveraging a Sigma-Delta architecture to achieve high accuracy across PGA input ranges from ±256 mV to ±6.144 V. Designed for space-constrained applications, it communicates via an I2C-compatible interface supporting four pin-selectable addresses. Operating over a wide supply voltage range of 2.0V to 5.5V, the ADC maintains a low typical current consumption of 150 µA in continuous-conversion mode, suitable for extended operation in environments from -40°C to +125°C. Additional integrated features include a programmable comparator and single-shot mode with auto power-down, all housed in an ultra-small 10-pin VSSOP package. The ADS1015 is an ultra-small, low-power, 12-bit precision analog-to-digital converter (ADC) featuring an internal reference, oscillator, and a programmable gain amplifier (PGA). It is designed for space-constrained sensor measurement applications with an I2C-compatible interface.
LMD18200T/NOPB
3A 55V 2-Ch Brushed Motor Driver IC TO-220
About TCAN1042HVDQ1
The Texas Instruments TCAN1042HVDQ1 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Automotive 70-V bus-fault-protected CAN transceiver with I/O level shifting and flexible data-rate 8-SOIC -55 to 125. Key parameters include Eccn Code: EAR99, JEDEC Package Code: R-PDSO-G8, Lead Free: Yes, Length: 4.905, and Max Operating Temperature: 125. TCAN1042HVDQ1 is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TCAN1042HVDQ1 specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| JEDEC Package Code | R-PDSO-G8 |
| Lead Free | Yes |
| Length | 4.905 |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -55 |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| REACH | Compliant |
| RoHS | Yes |
| Screening Level | AEC-Q100 |
| Supply Current-Max | 110 |
| Supply Voltage-Nom | 5 |
| Temperature Grade | MILITARY |
| Terminal Position | DUAL |
| Width | 3.895 |
