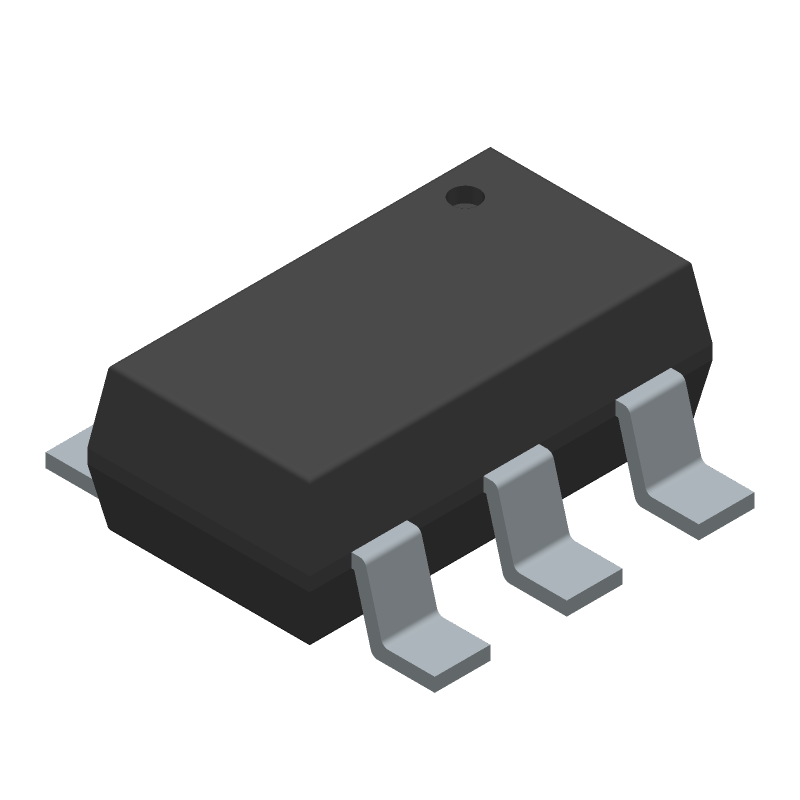

TPS563201DDCR
4.5 V to 17 V input, 3 A output, synchronous step-down converter in Eco-mode 6-SOT-23-THIN -40 to 125
Similar Components
LM2940CT-15/NOPB
15V LDO 1A TO-220 Positive Fixed Output Regulator
TPS63020DSJT
Buck-Boost Converter, 3A, 5.5V, 96% Eff, 1.8-5.5V In, VSON
LM1117
Adjustable positive linear voltage regulator, 800mA output current, 1.2V dropout voltage, and 1% output voltage accuracy. Features a maximum input voltage of 15V and an adjustable output voltage range from 1.25V to 13.8V. This surface mount component is housed in a TO-252 package, operating from -40°C to 125°C. RoHS compliant and lead-free.
LM338T/NOPB
5A Adj. LDO Regulator, 40V In, TO-220, 1.24-32V Out
LM2576S-ADJ
The LM2576S-ADJ is a DC/DC controller with a maximum operating temperature of 125°C and a temperature grade of AUTOMOTIVE. It has a single terminal position and a pin count of 4. The device is packaged in a TO-263 with dimensions of 8.635mm in width and 10.16mm in length. It can handle input voltages between 8V and 40V.
LM2940
Positive fixed 15V output voltage regulator, delivering up to 1A output current. Features a low 500mV dropout voltage and a maximum input voltage of 26V. Offers high 66dB power supply rejection ratio (PSRR) and operates across a -40°C to 85°C temperature range. Packaged in a TO-220 through-hole mount for reliable integration.
About TPS563201DDCR
The Texas Instruments TPS563201DDCR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 4.5 V to 17 V input, 3 A output, synchronous step-down converter in Eco-mode 6-SOT-23-THIN -40 to 125. Key parameters include Eccn Code: EAR99, Input Voltage-Max: 17, Input Voltage-Min: 4.5, JEDEC Package Code: R-PDSO-G6, and Lead Free: Yes. TPS563201DDCR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TPS563201DDCR specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| Input Voltage-Max | 17 |
| Input Voltage-Min | 4.5 |
| JEDEC Package Code | R-PDSO-G6 |
| Lead Free | Yes |
| Length | 2.9 |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Number of Terminals | 6 |
| Quest | 15,62020———$0.52—View offer |
| REACH | Compliant |
| RoHS | Yes |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Width | 1.6 |
