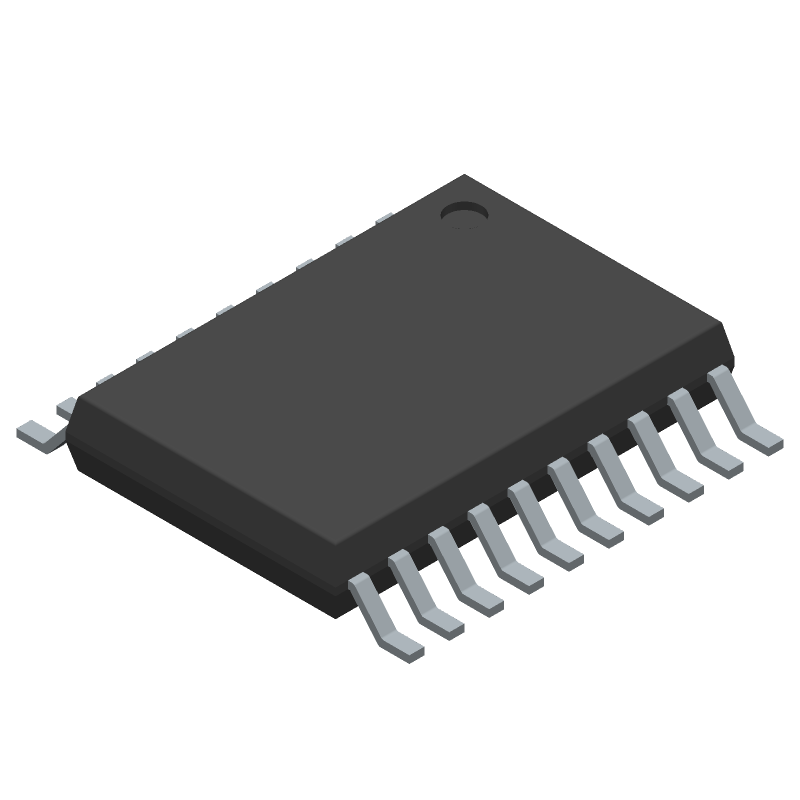

TXB0108PWR
8-bit bidirectional voltage level translator, featuring 8 channels and 3-state outputs. Operates with supply voltages from 1.2V to 5.5V, supporting data rates up to 100Mbps with a propagation delay of 4ns. Packaged in a 20-pin TSSOP for surface mounting, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
Similar Components
LM358D
Dual operational amplifier featuring a 700kHz bandwidth and 100dB voltage gain. This general-purpose op-amp offers a 0.3V/µs slew rate and operates with a wide supply voltage range from 3V to 32V. Designed for surface mounting, it comes in an 8-SOIC package with a 65dB common mode rejection ratio. The component boasts a 250nA input bias current and 7mV input offset voltage, with a typical operating supply current of 1mA.
CD4049
6-channel CMOS buffer/inverter IC, operating from 3V to 18V, features 6 independent inverting logic gates. This surface-mount device in a 16-SOIC package offers a high level output current of -5.2mA and a low level output current of 4.3mA. With a propagation delay of 50ns and a quiescent current of 4uA, it supports a wide operating temperature range of -55°C to 125°C. The component is lead-free, RoHS compliant, and utilizes gold contact plating.
TSC2007IPWR
12-Bit 4-Wire Touch Screen Controller, I2C/Serial, TSSOP
LM386N-3
Single-channel audio power amplifier IC featuring 1W output power and 700mW maximum output power into an 8-ohm load. Offers a voltage gain of 46dB and a bandwidth of 300kHz. Operates from a single supply voltage range of 4V to 12V, with a typical supply current of 4mA. Packaged in an 8-pin DIP (PDIP8) configuration.
TL072
The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1mV, typical), high slew rate (20V/µs), and common-mode input to the positive supply. High ESD (1.5kV, HBM), integrated EMI and RF filters, and operation across the full –40°C to +125°C range enable the TL07xH devices for use in the most rugged and demanding applications.
CD4051BE
Single 8:1 analog multiplexer, featuring an 8:1 multiplexer architecture with 8 inputs and 1 output. This through-hole component is housed in a 16-pin PDIP plastic dual in-line package with a 2.54mm pin pitch. Operating temperature range spans from -55°C to 125°C, with a maximum on-resistance of 1000 Ohms.
About TXB0108PWR
The Texas Instruments TXB0108PWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 8-bit bidirectional voltage level translator, featuring 8 channels and 3-state outputs. Operates with supply voltages from 1.2V to 5.5V, supporting data rates up to 100Mbps with a propagation delay of 4ns. Packaged in a 20-pin TSSOP for surface mounting, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.. Key parameters include Channel Type: Bidirectional, Data Rate: 100Mbps, Height: 1.15mm, High Level Output Current: -20uA, and Lead Free: Lead Free. TXB0108PWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TXB0108PWR specifications
Click to ask a quick question:
Parameters
| Channel Type | Bidirectional |
| Data Rate | 100Mbps |
| Height | 1.15mm |
| High Level Output Current | -20uA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Logic Function | Translator |
| Low Level Output Current | 20uA |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 8 |
| Number of Circuits | 1 |
| Number of Inputs | 8 |
| Output Current | 20uA |
| Output Type | 3-STATE |
| Package/Case | TSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Propagation Delay | 4ns |
| Quiescent Current | 3.5uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 1mm |
| Turn-On Delay Time | 9.5ns |
| Weight | 0.002716oz |
| Width | 4.4mm |
