SI7454DDP-T1-GE3

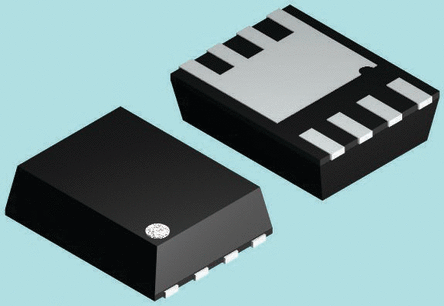

N-Channel Power MOSFET, 100V Drain-Source Voltage (Vdss), 21A Continuous Drain Current (ID), and 33mΩ Max Drain-Source On-Resistance (Rds On). Features include a 1.5V Threshold Voltage, 550pF Input Capacitance, and fast switching times with 10ns Turn-On Delay and 9ns Fall Time. This surface-mount device operates from -55°C to 150°C with a Max Power Dissipation of 29.7W. Packaged in a leadless, HALOGEN FREE and ROHS COMPLIANT POWERPAK SOP-8, it is suitable for demanding power applications.
Similar Components
SI2300DS-T1-GE3
N-channel MOSFET, surface mount, SOT-23-3 package. Features 30V drain-source voltage, 3.6A continuous drain current, and 68mΩ maximum drain-source on-resistance. Operates with a 12V gate-source voltage and offers fast switching with 10ns turn-on delay and 11ns fall time. Maximum power dissipation is 1.7W, with operating temperatures from -55°C to 150°C. RoHS compliant.
MMSZ4699
Zener Diode, 12V V(Z), 5%, 0.5W, Silicon, Unidirectional,
SI2305DS-T1-GE3
P-channel power MOSFET with 8V drain-source voltage (Vdss) and 3.5A continuous drain current (ID). Features low 52mR drain-to-source resistance (Rds On Max) and 1.25W maximum power dissipation. Operates across a -55°C to 150°C temperature range. Packaged in a SOT-23-3 surface-mount case, this RoHS compliant component offers fast switching with turn-on delay of 13ns and fall time of 25ns.
MMSZ4691
Zener Diode, 6.2V V(Z), 5%, 0.5W, Silicon, Unidirectional
IRF520
N-Channel Power MOSFET featuring 100V Drain-Source Voltage (Vdss) and 9.2A Continuous Drain Current (ID). This silicon Metal-oxide Semiconductor FET offers a low 270mΩ Drain-Source On-Resistance (Rds On) and a maximum power dissipation of 60W. Designed for through-hole mounting in a TO-220AB package, it exhibits fast switching characteristics with a turn-on delay of 8.8ns and a fall time of 20ns. Operating temperature range spans from -55°C to 175°C.
BZX55C3V3-TAP
Diode Zener Single 3.3V 6% 500mW Automotive 2-Pin DO-35 Ammo
About SI7454DDP-T1-GE3
The Vishay SI7454DDP-T1-GE3 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: N-Channel Power MOSFET, 100V Drain-Source Voltage (Vdss), 21A Continuous Drain Current (ID), and 33mΩ Max Drain-Source On-Resistance (Rds On). Features include a 1.5V Threshold Voltage, 550pF Input Capacitance, and fast switching times with 10ns Turn-On Delay and 9ns Fall Time. This surface-mount device operates from -55°C to 150°C with a Max Power Dissipation of 29.7W. Packaged in a leadless, HALOGEN FREE and ROHS COMPLIANT POWERPAK SOP-8, it is suitable for demanding power applications.. Key parameters include Continuous Drain Current (ID): 21A, Drain-source On Resistance-Max: 33MR, Drain to Source Breakdown Voltage: 100V, Drain to Source Resistance: 33mR, and Drain to Source Voltage (Vdss): 100V. SI7454DDP-T1-GE3 is manufactured by Vishay as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Vishay
- Category
- Semiconductors
Ask AI Assistant
Ask questions about SI7454DDP-T1-GE3 specifications
Click to ask a quick question:
Parameters
| Continuous Drain Current (ID) | 21A |
| Drain-source On Resistance-Max | 33MR |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 33mR |
| Drain to Source Voltage (Vdss) | 100V |
| Fall Time | 9ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.12mm |
| Input Capacitance | 550pF |
| Lead Free | Lead Free |
| Length | 6.25mm |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 29.7W |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package/Case | SO |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 33mR |
| Reach SVHC Compliant | Unknown |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | TrenchFET® |
| Threshold Voltage | 1.5V |
| Turn-Off Delay Time | 16ns |
| Turn-On Delay Time | 10ns |
| Width | 5.26mm |
