BSC093N15NS5

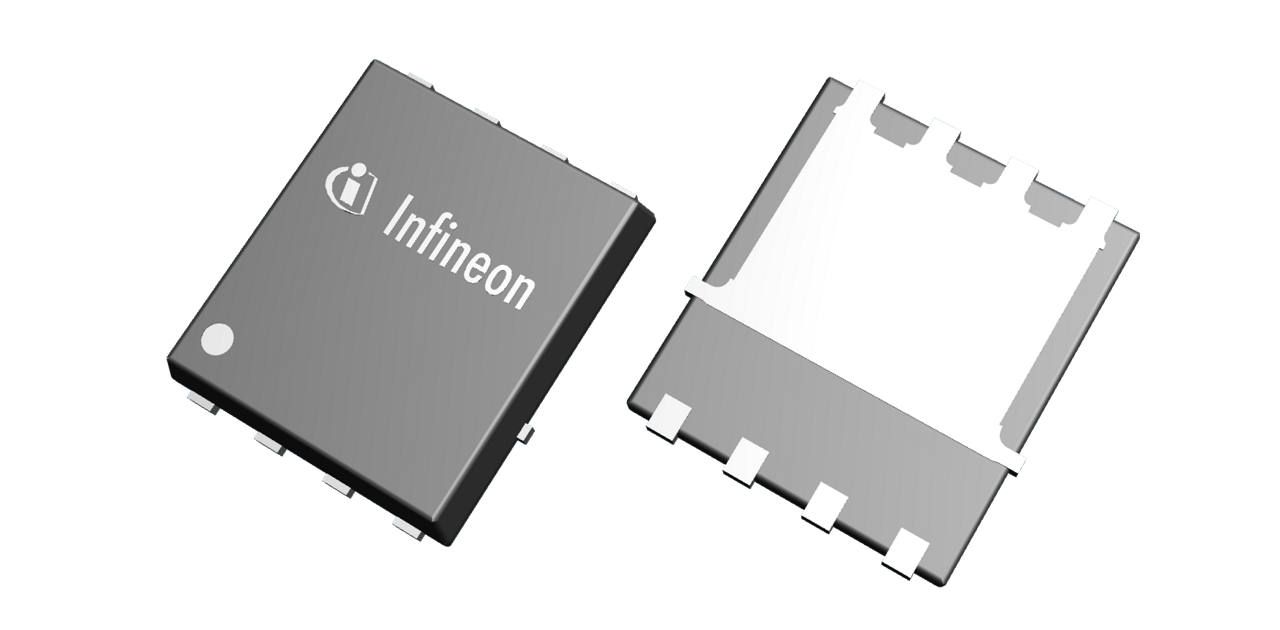

This device is an N-channel power MOSFET rated for 150 V drain-source voltage and up to 87 A drain current. It is specified with a maximum on-resistance of 9.3 mΩ and is housed in a SuperSO8 5x6 package identified by Infineon as PG-TDSON-8-7. The part belongs to the OptiMOS™ 5 150 V family and is intended for low-voltage drives, telecom equipment, and solar applications. Infineon highlights lower output charge, ultra-low reverse recovery charge, and increased commutation ruggedness for higher switching-frequency operation.
Similar Components
IPB020N08N5ATMA1
Power Field-Effect Transistor, 120A I(D), 80V, 0.002ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, TO-263, D2PAK-3/2
IRF3710PBF
This N-channel silicon power MOSFET is rated for 100 V drain-to-source voltage and 57 A continuous drain current at 25°C case temperature. It is specified with a maximum drain-to-source on-resistance of 23 mΩ at VGS = 10 V and uses the TO-220AB through-hole package. The device supports operation from -55°C to 175°C and is fully avalanche rated with fast switching characteristics. The datasheet also identifies dynamic dv/dt capability and lead-free construction for industrial applications.
BSC093N04LSGATMA1
N-channel power MOSFET featuring 40V drain-source voltage and 13A continuous drain current. Offers low on-state resistance of 9.3mΩ (typical) and 7.8mΩ (drain-to-source). Designed for surface mount applications with a TDSON-8 package, this silicon metal-oxide semiconductor FET operates within a -55°C to 150°C temperature range and supports a maximum power dissipation of 35W. Includes fast switching characteristics with turn-on delay of 3.6ns and fall time of 2.8ns.
BSC090N03LSGATMA1
N-channel silicon MOSFET featuring 30V drain-source voltage and 48A continuous drain current. Offers low on-state resistance of 7.5mR (typical) and 9mR (max) at 25°C. Designed for surface mount applications with a TDSON-8 plastic package. Operates across a wide temperature range from -55°C to 150°C, with a maximum power dissipation of 32W. Halogen-free and RoHS compliant.
BAT60B
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 10V V(RRM), Silicon, SOD-323, 2 PIN
BCP51-16
The BCP51-16 is a surface mount PNP transistor with a collector base voltage of 45V and a maximum collector current of 1A. It operates at a maximum frequency of 125MHz and has a maximum power dissipation of 2W. The transistor is packaged in a SOT-223 case and is RoHS compliant. It can withstand a maximum operating temperature of 150°C.
About BSC093N15NS5
The Infineon BSC093N15NS5 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: This device is an N-channel power MOSFET rated for 150 V drain-source voltage and up to 87 A drain current. It is specified with a maximum on-resistance of 9.3 mΩ and is housed in a SuperSO8 5x6 package identified by Infineon as PG-TDSON-8-7. The part belongs to the OptiMOS™ 5 150 V family and is intended for low-voltage drives, telecom equipment, and solar applications. Infineon highlights lower output charge, ultra-low reverse recovery charge, and increased commutation ruggedness for higher switching-frequency operation.. Key parameters include Eccn Code: EAR99, Military Spec: False, Number of Elements: 1, Number of Terminals: 5, and REACH: Compliant. BSC093N15NS5 is manufactured by Infineon as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Infineon
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BSC093N15NS5 specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| Military Spec | False |
| Number of Elements | 1 |
| Number of Terminals | 5 |
| REACH | Compliant |
| RoHS | Yes |
| Terminal Position | DUAL |
