OPA4227UA

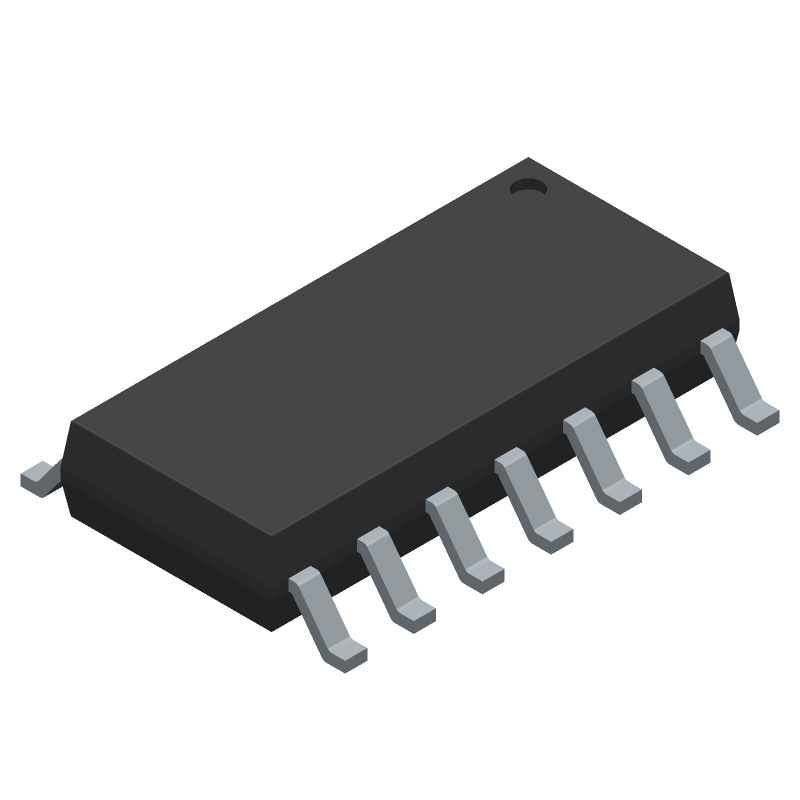

Quad high precision, low noise operational amplifier featuring 8MHz bandwidth and 2.3V/µs slew rate. Boasts 120dB CMRR and 126.02dB PSRR for superior signal integrity. Operates from 2.5V to 18V dual supply with a low 3.7mA operating supply current. Housed in a 14-SOIC package with gull wing terminals, suitable for industrial temperature ranges of -40°C to 85°C.
Similar Components
OPA333AIDBVT
Precision zero-drift CMOS operational amplifier featuring a 350kHz bandwidth and 17µA operating supply current. This single-channel op amp offers a low input offset voltage of 10µV and high CMRR of 106dB, operating from a minimum supply voltage of 1.8V up to 5.5V. Designed for precision applications, it boasts a 120dB PSRR and a 0.16V/µs slew rate, packaged in a compact SOT-23 for efficient integration.
TL084CN
Quad JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This BIFET technology device offers a 70dB common mode rejection ratio and operates with dual supply voltages from 3.5V to 18V. With four independent amplifiers in a 14-PDIP package, it boasts a low input bias current of 400pA and a nominal gain bandwidth product of 3MHz. The RoHS compliant component operates across a wide temperature range of -40°C to 125°C.
TPA3116D2DAD
Audio Amp Speaker 1-CH Mono/2-CH Stereo 50W Class-D 32-Pin HTSSOP EP Tube
ISO7741FDWR
Quad-channel, reinforced digital isolator featuring robust EMC performance. This interface circuit operates across a wide temperature range of -55°C to 125°C, with a nominal supply voltage of 2.5V, supporting a range of 2.25V to 5.5V. The device is housed in a 16-terminal SOIC package (JEDEC R-PDSO-G16) with dual terminal positions, measuring 7.5mm in width and 10.3mm in length.
MAX232N
Dual transmitter/receiver bus transceiver for RS-232 communication. Features two transmitters and two receivers, supporting full-duplex operation. Operates with a 5V supply voltage (4.5V to 5.5V) and offers a data rate of 120Kbps. Includes ESD protection and is RoHS compliant. Packaged in a 16-pin PDIP with through-hole mounting.
CD4030
The CD4030BE is a dual XOR gate IC with 14 terminals in a 14-pin DIP package. It operates over a temperature range of -55C to 125C and has a supply voltage range of 3V to 18V. The IC has a propagation delay of 280ns and a maximum power supply current of 30uA. It is a member of the 4000/14000/40000 logic IC family and is not a Schmitt trigger device.
About OPA4227UA
The Texas Instruments OPA4227UA Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Quad high precision, low noise operational amplifier featuring 8MHz bandwidth and 2.3V/µs slew rate. Boasts 120dB CMRR and 126.02dB PSRR for superior signal integrity. Operates from 2.5V to 18V dual supply with a low 3.7mA operating supply current. Housed in a 14-SOIC package with gull wing terminals, suitable for industrial temperature ranges of -40°C to 85°C.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 8MHz, Common Mode Rejection Ratio: 120dB, Gain Bandwidth Product: 8MHz, and Input Bias Current: 10nA. OPA4227UA is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about OPA4227UA specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 8MHz |
| Common Mode Rejection Ratio | 120dB |
| Gain Bandwidth Product | 8MHz |
| Input Bias Current | 10nA |
| Input Offset Voltage (Vos) | 200uV |
| JESD-30 Code | R-PDSO-G14 |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Max I/O Voltage | 200uV |
| Max Operating Temperature | 85°C |
| Min Dual Supply Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Moisture Sensitivity Level | 3 |
| Nominal Gain Bandwidth Product | 8MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Functions | 4 |
| Operating Supply Current | 3.7mA |
| Operating Supply Voltage | 18V |
| Output Current | 45mA |
| Output Current per Channel | 45mA |
| Package Body Material | Plastic |
| Package/Case | D |
| Package Quantity | 50 |
| Package Shape | Rectangular |
| Packaging | Rail/Tube |
| Peak Reflow Temperature (Cel) | 260°C |
| Power Supply Rejection Ratio (PSRR) | 126.02dB |
| Quest | 83—$16.0167$15.254——View offer |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 2.3V/µs |
| Supply Current | 3.8mA |
| Surface Mount | Yes |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Gold |
| Terminal Form | Gull Wing |
| Terminal Position | DUAL |
| Unity Gain Bandwidth Product | 8MHz |
| Voltage Gain | 160dB |
| Width | 3.9mm |
