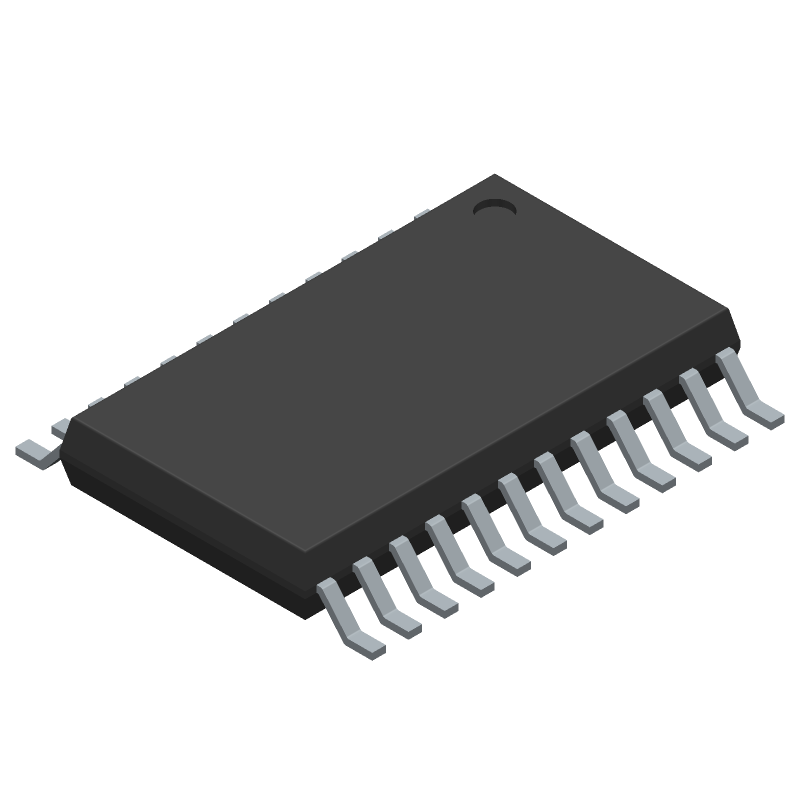

PCA9548APWR
The PCA9548APWR is an 8-channel I2C multiplexer from Texas Instruments, operating at a bandwidth of 400kHz and a supply voltage of up to 5.5V. It is packaged in a TSSOP-24 package and is RoHS compliant. The device has a nominal supply current of 50uA and an operating supply current of 9uA. It is designed to operate within a temperature range of -40°C to 85°C.
Similar Components
INA219AIDR
Bidirectional current and power monitor IC featuring zero-drift technology for high accuracy. Achieves 1% accuracy with a low input offset voltage of 10µV and 100dB common mode rejection ratio. Operates from a 3V to 5.5V supply, consuming 1mA operating supply current. Packaged in a lead-free SOIC with dimensions of 4.9mm x 3.91mm x 1.75mm, suitable for operation between -40°C and 125°C.
CD4029BE
4-Bit Binary/Decade Counter IC, CMOS, 11MHz, 18V, DIP
CD4518BPWE4
CMOS Dual BCD Up-Counter, 4-Bit, 8MHz, 18V, TSSOP
OPA2350UA
Dual, single-supply, rail-to-rail operational amplifier featuring 38MHz bandwidth and 22V/µs slew rate. This general-purpose amplifier offers low input bias current of 10pA and input voltage noise density of 7nV/sqrt Hz. Operating from 2.7V to 5.5V, it provides 40mA output current per channel and boasts a 122dB voltage gain. The 8-SOIC package is RoHS compliant and suitable for operation between -40°C and 85°C.
DRV8871DDA
45V 3.6A H-Bridge Motor Driver, 8-SO PowerPAD
CD4069UBF
CMOS Hex Inverter 14-CDIP -55 to 125
About PCA9548APWR
The Texas Instruments PCA9548APWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The PCA9548APWR is an 8-channel I2C multiplexer from Texas Instruments, operating at a bandwidth of 400kHz and a supply voltage of up to 5.5V. It is packaged in a TSSOP-24 package and is RoHS compliant. The device has a nominal supply current of 50uA and an operating supply current of 9uA. It is designed to operate within a temperature range of -40°C to 85°C.. Key parameters include Bandwidth: 400kHz, Lead Free: Lead Free, Logic Function: Multiplexer, Max Frequency: 400kHz, and Max Operating Temperature: 85°C. PCA9548APWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about PCA9548APWR specifications
Click to ask a quick question:
Parameters
| Bandwidth | 400kHz |
| Lead Free | Lead Free |
| Logic Function | Multiplexer |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Nominal Supply Current | 50uA |
| Number of Channels | 8 |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Number of Switches | 1 |
| Operating Supply Current | 9uA |
| Package/Case | TSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Propagation Delay | 1ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Weight | 0.003157oz |
