DRV8871DDAR

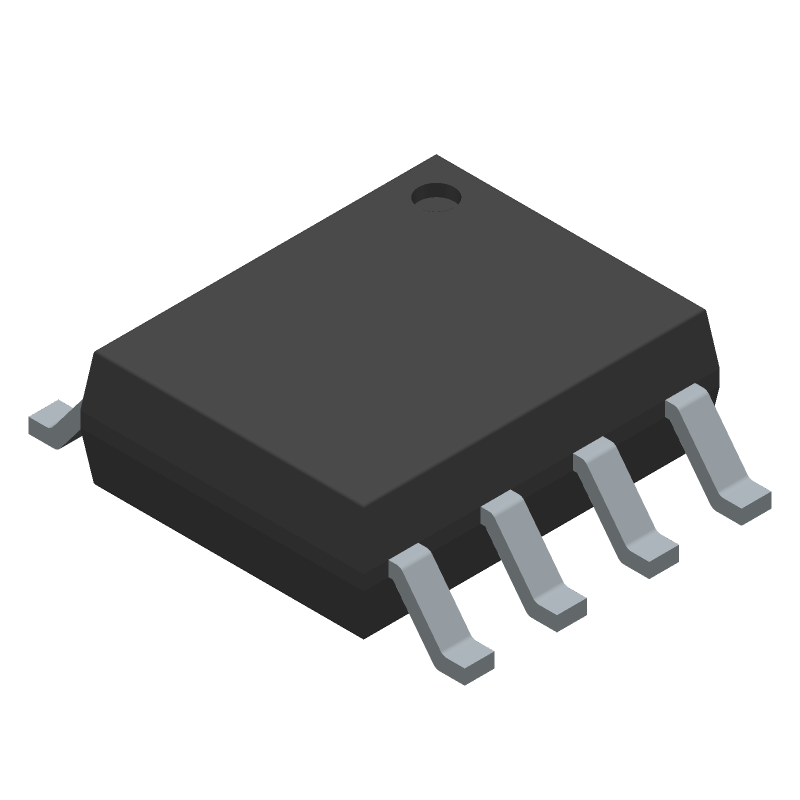

Automotive-grade H-bridge motor driver IC featuring integrated current sensing. Delivers up to 3.6A continuous output current and operates from a 6.5V to 45V supply voltage range. Designed for efficient motor control with a wide operating temperature range of -40°C to 125°C. Housed in an 8-pin SO PowerPAD package with a JEDEC R-PDSO-G8 designation.
Similar Components
CD4066
Quad SPST Analog Switch IC, featuring 4 independent circuits for versatile signal routing. Operates with dual or single supply voltages from 1.5V to 18V, with a maximum dual supply of 9V. CMOS technology ensures low quiescent current of 20nA and a maximum supply current of 5uA. Offers a bandwidth of 40MHz and is housed in a 14-pin PDIP package for through-hole mounting. Contact plating is gold, and the component is RoHS compliant.
LM324AN
Quadruple operational amplifier featuring a 1MHz bandwidth and 1.2MHz gain bandwidth product. This general-purpose amplifier offers a 100dB voltage gain and a 0.5V/µs slew rate. Designed for through-hole mounting in a 14-pin PDIP package, it operates with a dual supply voltage range of 1.5V to 16V, or a single supply from 3V to 32V. Key specifications include a 3mV input offset voltage and 100nA input bias current, with a 65dB common mode rejection ratio.
INA219AIDR
Bidirectional current and power monitor IC featuring zero-drift technology for high accuracy. Achieves 1% accuracy with a low input offset voltage of 10µV and 100dB common mode rejection ratio. Operates from a 3V to 5.5V supply, consuming 1mA operating supply current. Packaged in a lead-free SOIC with dimensions of 4.9mm x 3.91mm x 1.75mm, suitable for operation between -40°C and 125°C.
NE555D
Standard Timer Single 0°C 70°C 8-Pin SOIC Tube
MAX232INE4
Dual EIA-232 Transceiver, 120Kbps, 5V, 2 Drivers/2 Receivers, PDIP
SN75176BDR
Differential bus transceiver, half-duplex, featuring a single driver and receiver for robust data communication. Operates with a supply voltage of 5V (4.75V to 5.25V) and supports data rates up to 10Mbps. This integrated circuit is housed in an 8-SOIC package, with a maximum operating temperature of 70°C. RoHS compliant and lead-free, it offers an output current of 60mA and an operating supply current of 70mA.
About DRV8871DDAR
The Texas Instruments DRV8871DDAR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Automotive-grade H-bridge motor driver IC featuring integrated current sensing. Delivers up to 3.6A continuous output current and operates from a 6.5V to 45V supply voltage range. Designed for efficient motor control with a wide operating temperature range of -40°C to 125°C. Housed in an 8-pin SO PowerPAD package with a JEDEC R-PDSO-G8 designation.. Key parameters include Eccn Code: EAR99, JEDEC Package Code: R-PDSO-G8, Lead Free: Yes, Length: 4.9, and Max Operating Temperature: 125. DRV8871DDAR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about DRV8871DDAR specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| JEDEC Package Code | R-PDSO-G8 |
| Lead Free | Yes |
| Length | 4.9 |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| REACH | Compliant |
| RoHS | Yes |
| Supply Voltage-Max (Vsup) | 45 |
| Supply Voltage-Min (Vsup) | 6.5 |
| Supply Voltage-Nom (Vsup) | 12 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Width | 3.9 |
