TPS54540DDAR

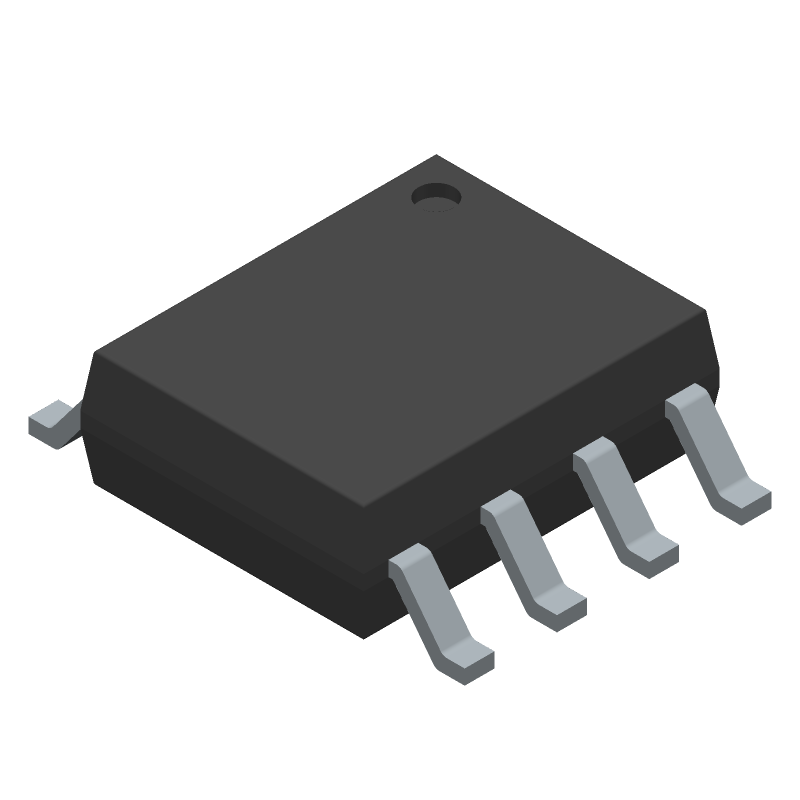

5A, 42V input, step-down DC-DC converter with adjustable output voltage from 800mV to 41.1V. Features Eco-Mode™ for reduced quiescent current (146µA) and a maximum operating temperature of 125°C. This surface mount component is housed in an 8-SO PowerPAD package (4.89mm L x 3.9mm W x 1.7mm H) and is RoHS compliant.
Similar Components
TPS63020
High efficiency single inductor buck-boost converter, featuring a 4A switch and 96% peak efficiency. This power management IC offers adjustable output voltage from 1.2V to 5.5V, supporting up to 3A output current. Designed for surface mount installation in a compact VSON package (4.15mm x 3.15mm x 0.95mm), it operates from 1.8V to 5.5V input voltage. With a quiescent current of 50µA and a wide operating temperature range of -40°C to 85°C, this RoHS compliant component is ideal for power-sensitive applications.
LM2588
Adjustable 5A DC-DC boost regulator with flyback topology, operating from a 4V to 40V input range. Features frequency synchronization and a maximum output current of 5A. Delivers up to 90% efficiency and supports adjustable output voltages from 1.23V to 12.6V. Packaged in a TO-263 surface-mount case, this component operates across a wide temperature range of -40°C to 125°C.
LM2577
Adjustable DC-DC converter with a 3A maximum output current. Features a wide input voltage range from 3.5V to 40V and an adjustable output voltage from 1.23V up to 60V. This boost converter offers up to 80% efficiency and operates within a temperature range of -40°C to 125°C. Packaged in a 5-pin TO-220 through-hole mount, it supports a single positive output.
TL431AIDBZR
Adjustable precision shunt regulator, SOT-23 package, offering an output voltage range from 2.495V to 36V with a 1% tolerance. Features a maximum input voltage of 37V and a maximum output current of 100mA. Operates across a wide temperature range of -40°C to 125°C. This RoHS compliant component requires a minimum cathode current of 700µA.
LM2575
Adjustable 1A step-down voltage regulator, featuring a 4V to 40V input voltage range and a 1.23V to 37V adjustable output voltage. This power management IC offers up to 1A output current with 77% efficiency, operating from -40°C to 125°C. Packaged in a TO-220-5 through-hole mount, it provides a single positive adjustable output. RoHS compliant and lead-free.
LM7905
Negative linear voltage regulator, fixed output voltage of -5V with 4% accuracy. Features a maximum output current of 1.5A and a dropout voltage of 1.1V. Operates within a temperature range of 0°C to 125°C, with a maximum input voltage of -25V. Packaged in a TO-220 through-hole mount.
About TPS54540DDAR
The Texas Instruments TPS54540DDAR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 5A, 42V input, step-down DC-DC converter with adjustable output voltage from 800mV to 41.1V. Features Eco-Mode™ for reduced quiescent current (146µA) and a maximum operating temperature of 125°C. This surface mount component is housed in an 8-SO PowerPAD package (4.89mm L x 3.9mm W x 1.7mm H) and is RoHS compliant.. Key parameters include Height: 1.7mm, Lead Free: Lead Free, Length: 4.89mm, Max Input Voltage: 42V, and Max Operating Temperature: 125°C. TPS54540DDAR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TPS54540DDAR specifications
Click to ask a quick question:
Parameters
| Height | 1.7mm |
| Lead Free | Lead Free |
| Length | 4.89mm |
| Max Input Voltage | 42V |
| Max Operating Temperature | 125°C |
| Max Output Current | 5A |
| Max Output Voltage | 41.1V |
| Max Supply Voltage | 42V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 800mV |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 146uA |
| Number of Outputs | 1 |
| Operating Supply Voltage | 42V |
| Output Configuration | Positive |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 41.1V |
| Package/Case | HSOP |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 146uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | Eco-Mode™ |
| Synchronous Rectifier | No |
| Thickness | 1.48mm |
| Width | 3.9mm |
