INA199A1DCKR
Single-channel, surface-mount current sense amplifier with 1.5% accuracy and 80kHz bandwidth. Features a 26V maximum supply voltage, 150µV input offset voltage, and 65µA operating supply current. Offers 100dB CMRR and 140dB PSRR, with a voltage gain of 33.98dB. Packaged in a 6-pin SC-70 for tape and reel distribution.
Similar Components
LM567CM/NOPB
Tone Decoder IC, 0.5MHz, 4.75-9V, SOIC
CD4013BE
Dual D-type flip-flop IC featuring positive edge clock triggering and a maximum operating frequency of 24MHz. This CMOS logic component offers two independent flip-flop elements, each with a single input and output. Operating from 3V to 18V, it provides ±4.2mA output current and is housed in a 14-pin PDIP package for through-hole mounting. The device operates across a wide temperature range of -55°C to 125°C and is RoHS compliant.
MAX232D
Dual Transmitter/Receiver RS-232 Interface IC, full duplex operation with two transmitters and two receivers. Features 120Kbps data rate, 5V operating supply voltage (4.5V to 5.5V range), and 10mA max supply current. Surface mountable in a 16-pin SOIC package (3.91mm width, 9.9mm length, 1.58mm height) with ESD protection. Operating temperature range from -40°C to 85°C, lead-free and RoHS compliant.
CD4511
The CD4511BF3A is a CMOS decoder/latch IC with 4 inputs and 7 outputs. It operates over a supply voltage range of 3V to 18V and can withstand temperatures between -55°C and 125°C. The device is packaged in a DIP-16 configuration and features a non-inverting polarity. The IC has a propagation delay of 1320ns and a turn-on delay time of 1320ns, with a quiescent current of 100uA. The CD4511BF3A is not radiation hardened and is not RoHS compliant.
INA128PA
Single-channel instrumentation amplifier featuring a 1.3MHz bandwidth and 110dB common-mode rejection ratio. Offers a wide dual supply voltage range from ±2.25V to ±18V, with a maximum supply voltage of 36V. Key specifications include 25µV input offset voltage, 10nA input bias current, and 8nV/√Hz input voltage noise density. This amplifier operates with a 700µA quiescent current and provides a 4V/µs slew rate, housed in an 8-pin PDIP package.
ULN2003ADR
Seven-channel NPN Darlington transistor array for surface mounting in a 16-SOIC package. Features a 50V collector-emitter breakdown voltage and a maximum collector current of 500mA. Operates within a temperature range of -20°C to 70°C. This RoHS compliant component is designed for automotive applications and AEC-Q100 qualification.
About INA199A1DCKR

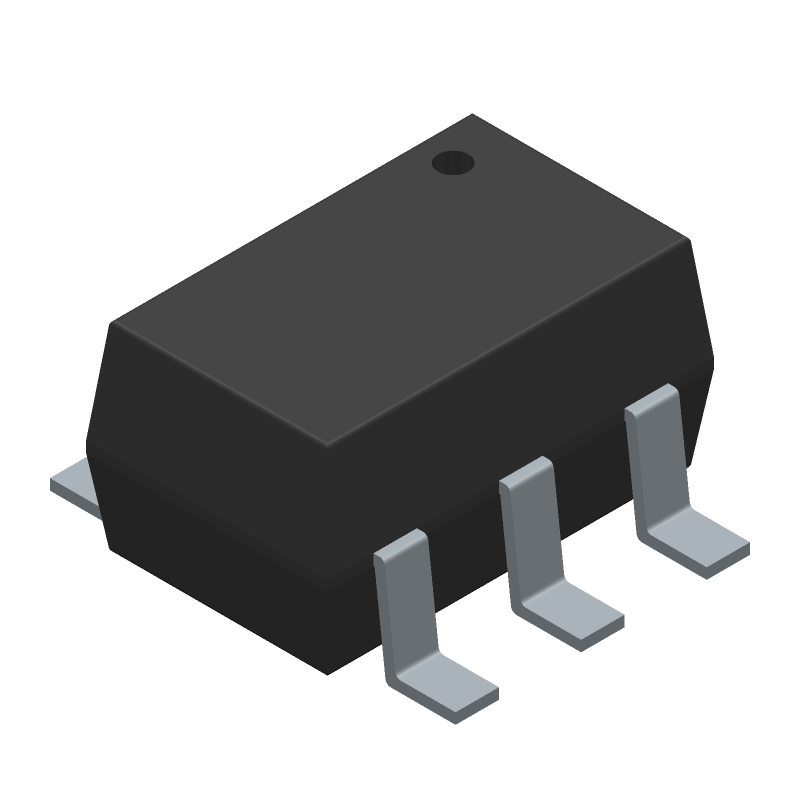

The Texas Instruments INA199A1DCKR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single-channel, surface-mount current sense amplifier with 1.5% accuracy and 80kHz bandwidth. Features a 26V maximum supply voltage, 150µV input offset voltage, and 65µA operating supply current. Offers 100dB CMRR and 140dB PSRR, with a voltage gain of 33.98dB. Packaged in a 6-pin SC-70 for tape and reel distribution.. Key parameters include Accuracy: 1.5%, Bandwidth: 80kHz, Common Mode Rejection Ratio: 100dB, Gain Bandwidth Product: 14kHz, and Height: 1.1mm. INA199A1DCKR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about INA199A1DCKR specifications
Click to ask a quick question:
Parameters
| Accuracy | 1.5% |
| Bandwidth | 80kHz |
| Common Mode Rejection Ratio | 100dB |
| Gain Bandwidth Product | 14kHz |
| Height | 1.1mm |
| Input Bias Current | 28uA |
| Input Offset Voltage (Vos) | 150uV |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 26V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 65uA |
| Output Type | Voltage |
| Package/Case | SC |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 140dB |
| Quest | 1,69735——$1.404——View offer |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 0.4V/µs |
| Thickness | 900um |
| Unity Gain Bandwidth Product | 14kHz |
| Voltage Gain | 33.98dB |
| Weight | 0.00127oz |
| Width | 1.25mm |
