OPA2277UA
Dual operational amplifier featuring low offset voltage (20µV) and high common-mode rejection ratio (115dB). This general-purpose amplifier offers a 1MHz bandwidth and 140dB voltage gain, suitable for industrial temperature ranges (-40°C to 85°C). It operates with dual supply voltages from ±2V to ±18V, drawing 790µA per channel. The component is surface-mount in an 8-pin SOIC package with gold-plated gull-wing terminals.
Similar Components
MAX232
Dual EIA-232 driver and receiver in a 16-PDIP through-hole package. Features 2 drivers and 2 receivers for full-duplex communication, supporting data rates up to 120Kbps. Operates with a 5V supply voltage (4.5V to 5.5V) and offers a wide temperature range of -40°C to 85°C. Includes 8 I/Os with 500mV receiver hysteresis and a propagation delay of 0.5us. This RoHS compliant component is lead-free.
TPA3116
Audio Amp Speaker 1-CH Mono/2-CH Stereo 50W Class-D 32-Pin HTSSOP EP Tube
OPA1642AIDR
2-Channel Stereo Class-AB Audio Amplifier IC with Rail-to-Rail output. Features a typical Gain Bandwidth Product of 11 MHz and a typical PSRR of 137.07 dB. Housed in an 8-pin SOIC (Small Outline IC) package with gull-wing leads, designed for surface mounting. Operating temperature range from -40 °C to 85 °C.
CD4071BE
CMOS OR Gate IC, 4-Element, 2-IN, 14-Pin PDIP
LM2901DR
Quad differential comparator IC, featuring 4 independent comparator channels. Operates with a wide supply voltage range from 1V to 30V, with a maximum dual supply voltage of 15V. Offers a typical response time of 1.3µs and a voltage gain of 100dB. Designed for surface mounting in a SOIC package, this component boasts a maximum operating temperature of 125°C and a minimum of -40°C. Key electrical characteristics include an input bias current of 250nA and an input offset voltage of 7mV.
LM3914
10-channel dot/bar display driver IC for LCD applications. Features 10 outputs, each capable of driving up to 30mA. Operates from a 3V to 25V supply voltage with a typical supply current of 6.1mA. Packaged in a 20-PLCC surface-mount format, this lead-free and RoHS-compliant component offers a maximum power dissipation of 1.365W and operates within a temperature range of 0°C to 70°C.
About OPA2277UA

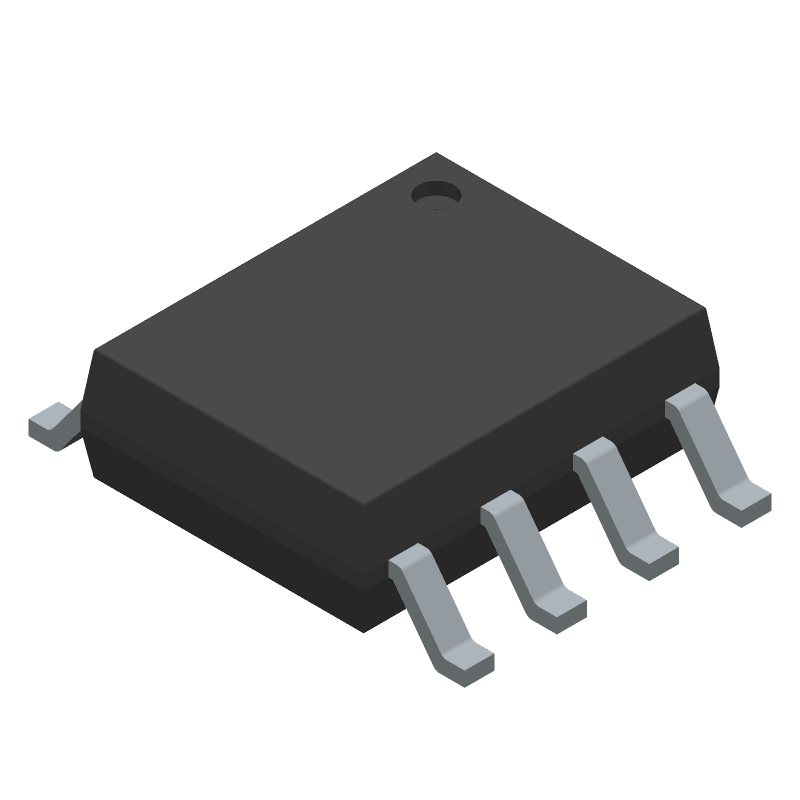

The Texas Instruments OPA2277UA Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Dual operational amplifier featuring low offset voltage (20µV) and high common-mode rejection ratio (115dB). This general-purpose amplifier offers a 1MHz bandwidth and 140dB voltage gain, suitable for industrial temperature ranges (-40°C to 85°C). It operates with dual supply voltages from ±2V to ±18V, drawing 790µA per channel. The component is surface-mount in an 8-pin SOIC package with gold-plated gull-wing terminals.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 1MHz, Common Mode Rejection Ratio: 115dB, Conrad: 261$1.7339————View offer, and Dual Supply Voltage: 9V. OPA2277UA is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about OPA2277UA specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Common Mode Rejection Ratio | 115dB |
| Conrad | 261$1.7339————View offer |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 1MHz |
| Height | 1.58mm |
| Input Bias Current | 2.8nA |
| Input Offset Voltage (Vos) | 20uV |
| JESD-30 Code | R-PDSO-G8 |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Dual Supply Voltage | 18V |
| Max I/O Voltage | 50uV |
| Max Operating Temperature | 85°C |
| Min Dual Supply Voltage | 2V |
| Min Operating Temperature | -40°C |
| Moisture Sensitivity Level | 3 |
| Nominal Gain Bandwidth Product | 1MHz |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Functions | 2 |
| Operating Supply Current | 790uA |
| Operating Supply Voltage | 18V |
| Output Current per Channel | 35mA |
| Package Body Material | Plastic |
| Package/Case | D |
| Package Quantity | 75 |
| Package Shape | Rectangular |
| Packaging | Rail/Tube |
| Peak Reflow Temperature (Cel) | 260°C |
| Quest | 341$7.11$4.74———View offer |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 7575———$5.4234TubeView offer |
| Schukat | 2,3755——$1.3062——View offer |
| Slew Rate | 0.8V/µs |
| Supply Current | 1.65mA |
| Surface Mount | Yes |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Gold |
| Terminal Form | Gull Wing |
| Terminal Position | DUAL |
| Thickness | 1.58mm |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 140dB |
| Width | 3.91mm |
