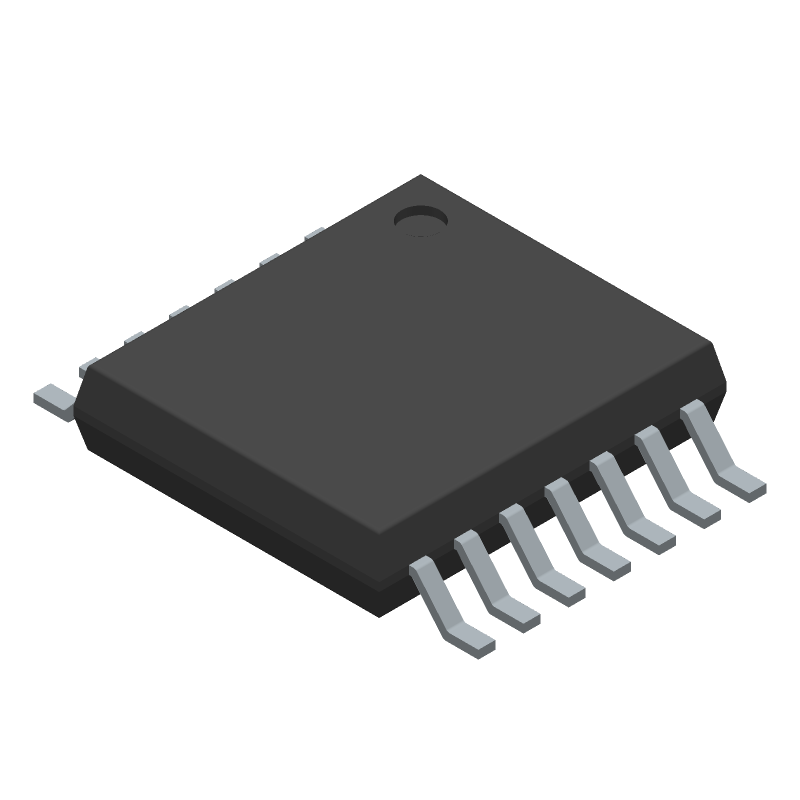

TXB0104PWR
4-channel bidirectional voltage level translator, ideal for logic applications. Features a 1.2V to 5.5V operating supply range and supports data rates up to 100Mbps. This surface mount component is housed in a 14-pin TSSOP package with 3-state output capability. Operating temperature range is -40°C to 85°C, with a propagation delay of 31ns.
Similar Components
CD4030
The CD4030BE is a dual XOR gate IC with 14 terminals in a 14-pin DIP package. It operates over a temperature range of -55C to 125C and has a supply voltage range of 3V to 18V. The IC has a propagation delay of 280ns and a maximum power supply current of 30uA. It is a member of the 4000/14000/40000 logic IC family and is not a Schmitt trigger device.
CD4071
CMOS OR Gate IC, featuring 4 independent 2-input OR gate elements. This integrated circuit utilizes a push-pull output type and operates within a wide temperature range of -55°C to 125°C. Housed in a 14-pin PDIP (Plastic Dual In-line Package) with through-hole mounting, it offers a 2.54mm pin pitch and conforms to the MS-001AA JEDEC standard. The plastic package measures 19.69mm in length, 6.6mm in width, and has a height ranging from 0.51mm to 5.08mm.
CD4532BE
8-Bit Priority Encoder CMOS 3-Output 16-Pin PDIP
CD4511
The CD4511BF3A is a CMOS decoder/latch IC with 4 inputs and 7 outputs. It operates over a supply voltage range of 3V to 18V and can withstand temperatures between -55°C and 125°C. The device is packaged in a DIP-16 configuration and features a non-inverting polarity. The IC has a propagation delay of 1320ns and a turn-on delay time of 1320ns, with a quiescent current of 100uA. The CD4511BF3A is not radiation hardened and is not RoHS compliant.
LF356N/NOPB
JFET Op Amp, 5MHz BW, 12V/µs SR, 8-PDIP, Through Hole
CD4001
CMOS NOR Gate IC, featuring 4 independent 2-input NOR gates. Operates with a supply voltage range of 3V to 18V. Offers a propagation delay of 50ns and a quiescent current of 5uA. Packaged in a 14-TSSOP with gold contact plating, suitable for surface mount applications. Rated for an operating temperature range of -55°C to 125°C.
About TXB0104PWR
The Texas Instruments TXB0104PWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 4-channel bidirectional voltage level translator, ideal for logic applications. Features a 1.2V to 5.5V operating supply range and supports data rates up to 100Mbps. This surface mount component is housed in a 14-pin TSSOP package with 3-state output capability. Operating temperature range is -40°C to 85°C, with a propagation delay of 31ns.. Key parameters include Channel Type: Bidirectional, Data Rate: 100Mbps, Height: 1.15mm, High Level Output Current: -20uA, and Lead Free: Lead Free. TXB0104PWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TXB0104PWR specifications
Click to ask a quick question:
Parameters
| Channel Type | Bidirectional |
| Data Rate | 100Mbps |
| Height | 1.15mm |
| High Level Output Current | -20uA |
| Lead Free | Lead Free |
| Length | 5mm |
| Logic Function | Translator |
| Low Level Output Current | 20uA |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.2V |
| Min Supply Voltage (DC) | 1.2V |
| Mount | Surface Mount |
| Nominal Supply Current | 5uA |
| Number of Bits | 4 |
| Number of Circuits | 1 |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Output Current | 20uA |
| Output Type | 3-STATE |
| Package/Case | TSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Propagation Delay | 31ns |
| Quiescent Current | 3.5uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 3,41025——$1.1468—ReelView offer |
| Thickness | 1mm |
| Turn-On Delay Time | 7.4ns |
| Weight | 0.002018oz |
| Width | 4.4mm |
