MMSZ5248B
Single Zener Diode, 18V DC rated voltage with 5% tolerance. Features 500mW power dissipation, 21 Ohm impedance, and a maximum reverse leakage current of 100nA. This surface mount component is housed in a 2-pin SOD-123 package, measuring 2.85mm in length, 1.8mm in width, and 1.18mm in height. Operating temperature range is -55°C to 150°C. Packaged on tape and reel with 3000 units per package.
Similar Components
LM741CN
General purpose operational amplifier IC featuring a 1.5MHz gain bandwidth product and 0.5V/µs slew rate. This single-channel amplifier offers a 70dB common mode rejection ratio and 77dB power supply rejection ratio. It operates with a maximum dual supply voltage of 18V and a typical supply current of 1.5mA. The component is housed in a lead-free 8-pin DIP package for through-hole mounting.
MMSZ5256B
500 mW, 30 V ±5% Zener Diode Voltage Regulator, 3000-REEL
2N3906G
PNP bipolar junction transistor (BJT) in a TO-92 package, suitable for general-purpose applications. Features a maximum collector-emitter voltage (VCEO) of 40V and a continuous collector current (IC) of 200mA. Offers a minimum DC current gain (hFE) of 60 and a transition frequency (fT) of 250MHz. With a maximum power dissipation of 625mW, this through-hole component operates across a wide temperature range from -55°C to 150°C. The TO-92 package has a body height of 5.33mm and is supplied in bulk packaging.
MMSZ5242B
Surface mount Zener diode with a 12V DC rated voltage and 5% voltage tolerance. Features 500mW power dissipation, 30 Ohm impedance, and a maximum reverse leakage current of 1uA at 12V. Operates across a temperature range of -55°C to 150°C. Packaged in tape and reel, this RoHS compliant component is ideal for voltage regulation applications.
1N4001
General purpose rectifier diode with a 1A forward current and 50V reverse voltage rating. Features a 30A peak non-repetitive surge current capability and 3W power dissipation. Encased in a DO-41 package with tin, matte contact plating, this through-hole component operates from -55°C to 175°C. It offers a low 5uA reverse current and 15pF capacitance.
ES1D
General purpose rectifier diode with a 200V repetitive reverse voltage and 1A average rectified current. Features a 30A peak non-repetitive surge current and 15ns reverse recovery time. This surface mount diode is housed in a DO-214AC package, measuring 4.75mm in length, 2.95mm in width, and 2.2mm in height. Operating temperature range is -50°C to 150°C, with a power dissipation of 1.47W. RoHS compliant and lead-free.
About MMSZ5248B

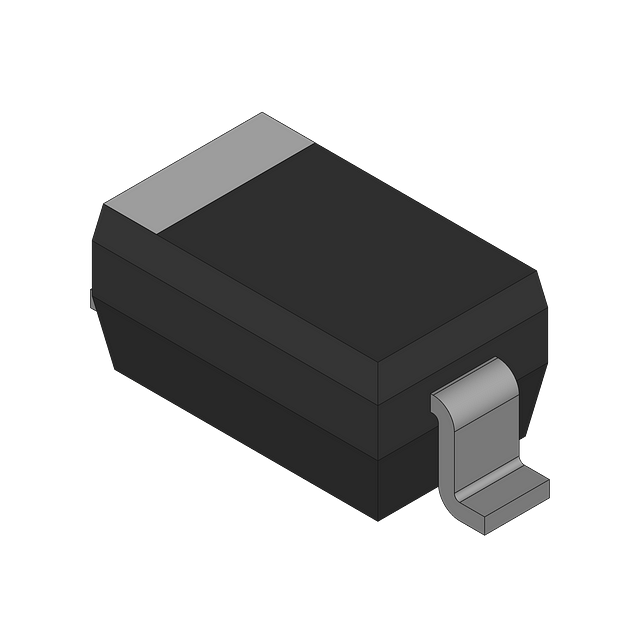

The Onsemi MMSZ5248B Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single Zener Diode, 18V DC rated voltage with 5% tolerance. Features 500mW power dissipation, 21 Ohm impedance, and a maximum reverse leakage current of 100nA. This surface mount component is housed in a 2-pin SOD-123 package, measuring 2.85mm in length, 1.8mm in width, and 1.18mm in height. Operating temperature range is -55°C to 150°C. Packaged on tape and reel with 3000 units per package.. Key parameters include DC Rated Voltage: 18V, Height: 1.18mm, Impedance: 21R, Length: 2.85mm, and Max Operating Temperature: 150°C. MMSZ5248B is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about MMSZ5248B specifications
Click to ask a quick question:
Parameters
| DC Rated Voltage | 18V |
| Height | 1.18mm |
| Impedance | 21R |
| Length | 2.85mm |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 500mW |
| Max Reverse Current | 100nA |
| Max Reverse Leakage Current | 100nA |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 14V |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Weight | 0.03g |
| Width | 1.8mm |
| Working Voltage | 18V |
| Zener Current | 7mA |
| Zener Voltage | 18V |
