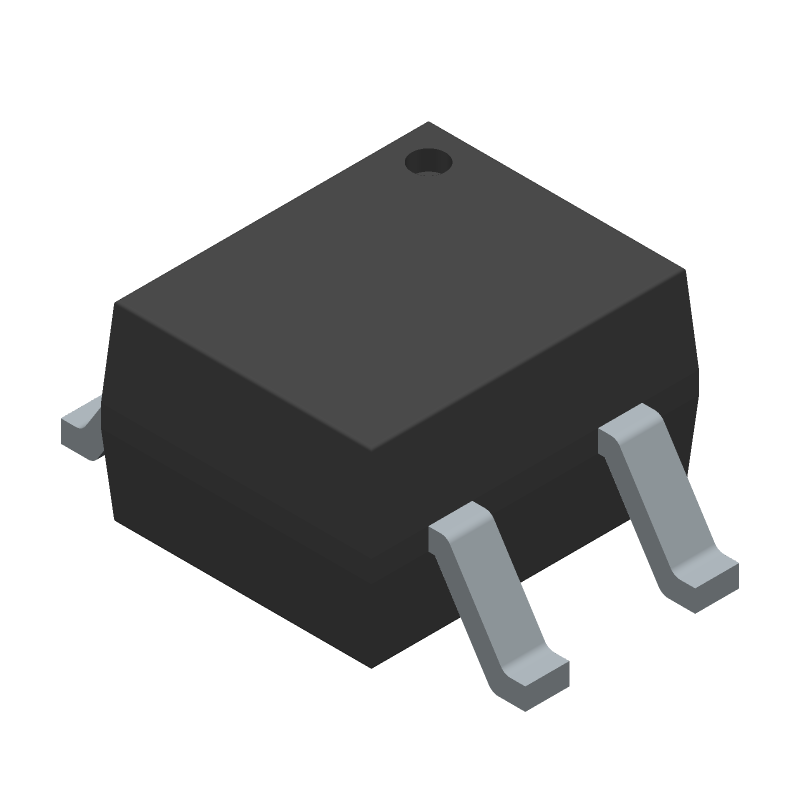

MB6S
Surface mount bridge rectifier diode with 600V repetitive reverse voltage and 500mA average rectified current. Features a 4-pin SOIC package, 35A maximum forward surge current, and operates from -55°C to 150°C. This RoHS compliant component offers 1.4W power dissipation and is supplied in tape and reel packaging.
Similar Components
MBR120ESF
The MBR120ESFT3G is a single-element general purpose rectifier diode with a maximum operating temperature of 150°C and a minimum operating temperature of -65°C. It has a maximum reverse voltage of 20V and a maximum reverse leakage current of 10uA. The diode is packaged in a 2-pin plastic case and is RoHS compliant. It is available in quantities of 10,000 units per reel.
IRF830
N-channel enhancement mode power MOSFET featuring 500V maximum drain-source voltage and 4.5A continuous drain current. This single-element silicon transistor is housed in a 3-pin TO-220 package with through-hole mounting. Key specifications include a maximum drain-source resistance of 1500 mOhm at 10V and a typical gate charge of 22 nC at 10V. Operating temperature range is -55°C to 150°C, with a maximum power dissipation of 75W.
2N7002DW
Dual N-Channel MOSFET, 60V Vds, 115mA ID, 7.5 Ohm Rds(on). Surface mount SC package with 1.25mm width, 2mm length, and 1mm height. Features 50pF input capacitance, 5.85ns turn-on delay, and 12.5ns turn-off delay. Operating temperature range from -55°C to 150°C with 200mW power dissipation. RoHS compliant.
LM555CN
Single timer IC for clock generation and synthesis, operating from a 4.5V to 16V supply. Features a 2MHz frequency capability and a 7.5mA operating supply current. This through-hole component offers 200mA output current with a 50mA low-level output and -200mA high-level output. Packaged in PDIP with lead-free and RoHS compliance, it has a maximum power dissipation of 600mW and operates between 0°C and 70°C.
RS1J
General purpose rectifier diode with a 1A average rectified current and 600V maximum repetitive reverse voltage. Features a 1A forward current, 30A peak non-repetitive surge current, and 250ns reverse recovery time. This surface mount component is housed in a DO-214AC (SMA) package, measuring 4.75mm in length, 2.95mm in width, and 2.2mm in height. It operates across a temperature range of -55°C to 150°C and offers 1.19W power dissipation. RoHS compliant and lead-free.
MMBTA42
NPN bipolar junction transistor (BJT) for surface mount applications in a SOT-23 package. Features a maximum collector-emitter voltage (VCEO) of 300V and a continuous collector current (IC) of 500mA. Offers a minimum DC current gain (hFE) of 40 and a transition frequency (fT) of 50MHz. Maximum power dissipation is 240mW, with operating temperatures ranging from -55°C to 150°C. RoHS compliant and lead-free.
About MB6S
The Onsemi MB6S Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Surface mount bridge rectifier diode with 600V repetitive reverse voltage and 500mA average rectified current. Features a 4-pin SOIC package, 35A maximum forward surge current, and operates from -55°C to 150°C. This RoHS compliant component offers 1.4W power dissipation and is supplied in tape and reel packaging.. Key parameters include Average Rectified Current: 500mA, Current Rating: 500mA, DC Rated Voltage: 600V, Forward Current: 500mA, and Height: 2.7mm. MB6S is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about MB6S specifications
Click to ask a quick question:
Parameters
| Average Rectified Current | 500mA |
| Current Rating | 500mA |
| DC Rated Voltage | 600V |
| Forward Current | 500mA |
| Height | 2.7mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Forward Surge Current (Ifsm) | 35A |
| Max Operating Temperature | 150°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 500uA |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 35A |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Output Current | 500mA |
| Package/Case | SOIC |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.4W |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Weight | 0.228g |
| Width | 4.2mm |
