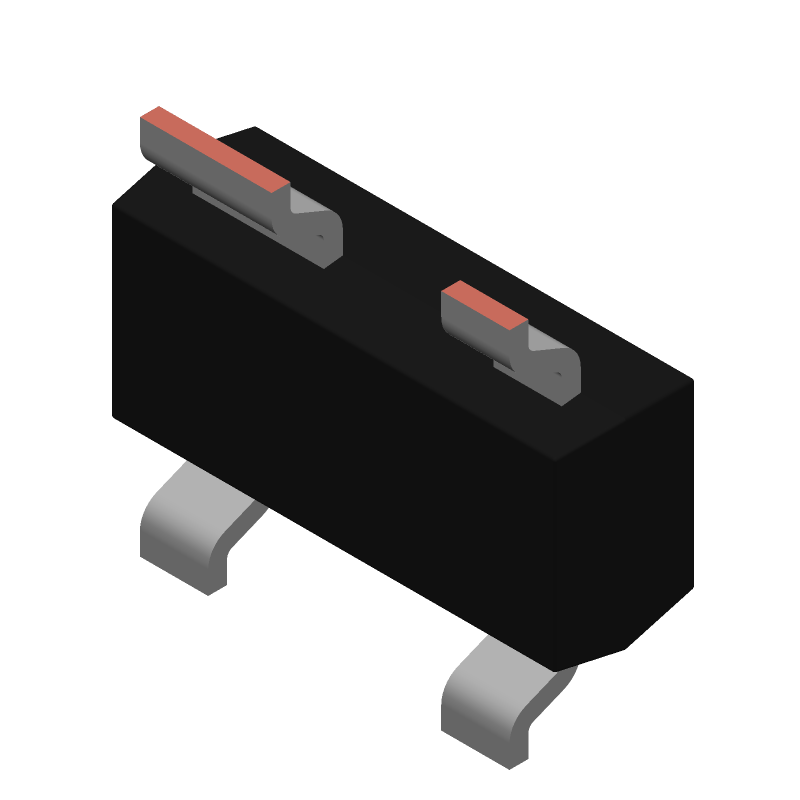

PRTR5V0U2X
Trans Voltage Suppressor Diode
Similar Components
74HC164PW-Q100J
74HC164-Q100; 74HCT164-Q100 - 8-bit serial-in, parallel-out shift register TSSOP 14-Pin
74HC595D,118
8-bit serial-in, parallel-out shift register with true output polarity. Operates from a 2V to 6V supply voltage range, with a nominal 5V. Features a 265ns propagation delay and a maximum operating frequency of 24MHz. Housed in a 16-pin SOIC package with dual terminal positions, suitable for automotive temperature grades (-40°C to 125°C).
74HC14D,653
CMOS Hex Schmitt Trigger Inverter IC featuring six independent inverter functions. Operating across a wide temperature range of -40°C to 125°C, this logic component supports supply voltages from 2V to 6V, with a nominal 5V. It offers a propagation delay of 190ns and is housed in a 14-pin SOIC package (JEDEC R-PDSO-G14) with dual terminal positions.
74LVC1T45GW
Bidirectional 1-channel voltage level translator, surface mount, in a 6-pin TSSOP package with a 0.65mm pin pitch. Features CMOS process technology, LVC logic family, and 3-state output with maximum output currents of 32mA (low) and -32mA (high). Operates across a temperature range of -40°C to 125°C.
PMV16XNR
PMV16XN - 20 V, N-channel Trench MOSFET TO-236 3-Pin
74HCT595
The Nexperia 74HCT595D-Q100,118 is an 8-bit serial-in parallel-out shift register with a supply voltage range of 4.5 to 5.5V. It operates over a temperature range of -40 to 125°C and is compliant with AEC-Q100. The device features a propagation delay of 63ns and a maximum frequency of 20MHz. It is packaged in a 16-pin SOP package with a width of 3.9mm and a length of 9.9mm.
About PRTR5V0U2X
The Nexperia PRTR5V0U2X Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Trans Voltage Suppressor Diode. Key parameters include Breakdown Voltage-Max: 9, Breakdown Voltage-Min: 6, Diode Element Material: SILICON, Diode Type: TRANS VOLTAGE SUPPRESSOR DIODE, and Eccn Code: EAR99. PRTR5V0U2X is manufactured by Nexperia as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Nexperia
- Category
- Semiconductors
Ask AI Assistant
Ask questions about PRTR5V0U2X specifications
Click to ask a quick question:
Parameters
| Breakdown Voltage-Max | 9 |
| Breakdown Voltage-Min | 6 |
| Diode Element Material | SILICON |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Eccn Code | EAR99 |
| HTS Code | 8541.10.00.50 |
| Military Spec | False |
| Number of Elements | 1 |
| Number of Terminals | 4 |
| Polarity | UNIDIRECTIONAL |
| REACH | Compliant |
| Rep Pk Reverse Voltage-Max | 5.5 |
| RoHS | Yes |
| Terminal Position | DUAL |
