MAC97A8

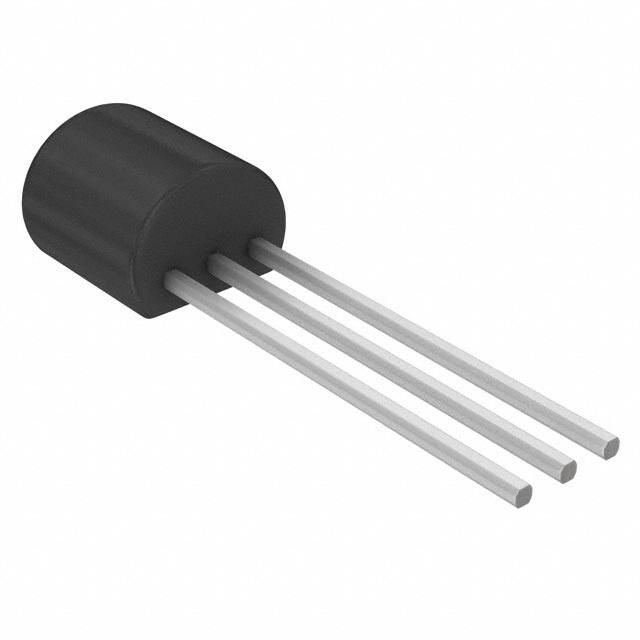

The MAC97A8 is a TRIAC from Onsemi with a DC rated voltage of 600V and a current rating of 600mA. It operates over a temperature range of -40°C to 110°C and is packaged in a TO-92-3 case. The device is lead free and RoHS compliant, making it suitable for a variety of applications.
Similar Components
CD4538BCM
CMOS Dual Retriggerable Monostable Multivibrator IC SOIC
BAT54C
Schottky diode array, surface mount, SOT-23 package. Features 30V reverse voltage, 200mA average rectified current, and 600mA peak non-repetitive surge current. Offers a low capacitance of 10pF and a fast 5ns reverse recovery time. Operates across a wide temperature range from -55°C to 150°C. RoHS compliant with tin-matte contact plating.
MMBF0202PLT1G
300mA, 20V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET, TO-236, LEAD FREE, CASE 318-08, 3 PIN
SMBJ3.3CA
Bidirectional Transient Voltage Suppressor (TVS) diode for power distribution, featuring a 33V reverse standoff voltage and 600W peak pulse power. This surface mount component offers a 53.3V clamping voltage and operates across a wide temperature range from -55°C to 150°C. It handles a peak pulse current of 11.3A with a maximum reverse leakage current of 5µA. Packaged in a DO-214AA case, it is supplied on tape and reel.
BSS123
N-channel MOSFET transistor in a SOT-23 package, featuring a 100V drain-source breakdown voltage and a continuous drain current of 170mA. This surface-mount component offers a low drain-source on-resistance of 6 Ohms. Operating across a wide temperature range of -55°C to 150°C, it boasts fast switching speeds with a turn-on delay of 1.7ns and a fall time of 9ns. The device is RoHS compliant and designed for tape and reel packaging.
MMBD4148CC
Ultra-fast switching diode featuring a 4ns reverse recovery time and 100V repetitive reverse voltage. This general-purpose rectifier offers a 200mA average rectified current and a 2A maximum surge current. Housed in a SOT-23 surface mount package, it operates from -55°C to 150°C with a 350mW power dissipation. The common cathode element configuration and RoHS compliance make it suitable for various electronic applications.
About MAC97A8
The Onsemi MAC97A8 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The MAC97A8 is a TRIAC from Onsemi with a DC rated voltage of 600V and a current rating of 600mA. It operates over a temperature range of -40°C to 110°C and is packaged in a TO-92-3 case. The device is lead free and RoHS compliant, making it suitable for a variety of applications.. Key parameters include Current Rating: 600mA, DC Rated Voltage: 600V, Hold Current: 10mA, Lead Free: Lead Free, and Max Operating Temperature: 110°C. MAC97A8 is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about MAC97A8 specifications
Click to ask a quick question:
Parameters
| Current Rating | 600mA |
| DC Rated Voltage | 600V |
| Hold Current | 10mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Package/Case | TO-92-3 |
| Package Quantity | 5000 |
| Packaging | Bulk |
| RMS Current (Irms) | 600mA |
| RoHS | Compliant |
| RoHS Compliant | Yes |
