MBRS130LT3G

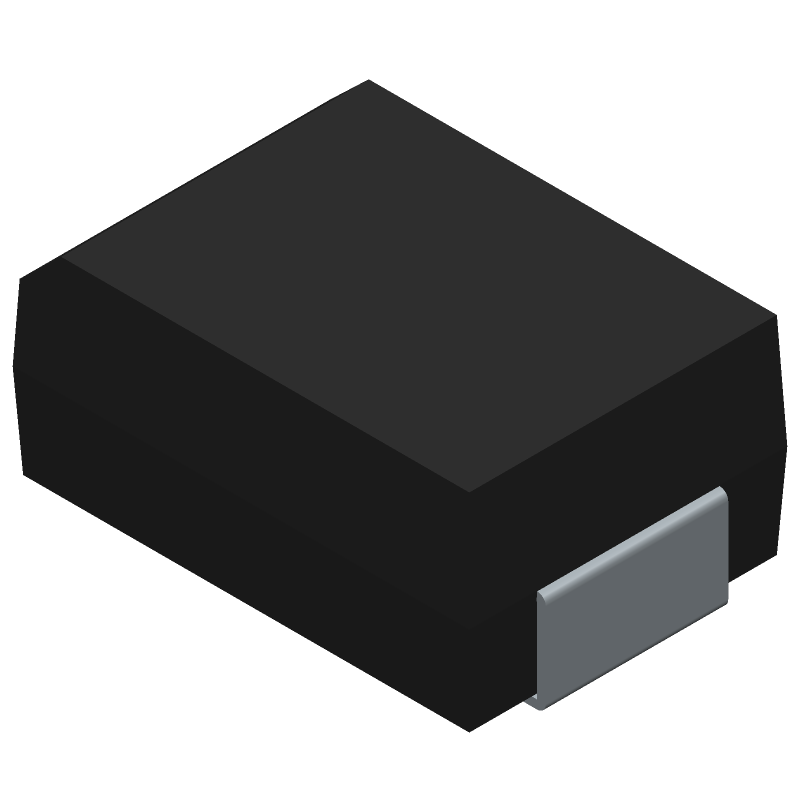

Surface mount Schottky power rectifier featuring a 30V repetitive peak reverse voltage and a 1.0A forward current rating. This dual-terminal diode offers a wide operating temperature range from -65°C to 125°C. Constructed with silicon, it serves as a general-purpose rectifier.
Similar Components
MMSZ5228B
Surface mount Zener diode with a 3.9V working voltage and 5% tolerance. Features 500mW power dissipation, 23 Ohm impedance, and a maximum reverse leakage current of 10uA. Operates across a temperature range of -55°C to 150°C. Packaged in SOD123 for efficient surface mounting.
P6SMB6.8CA
Bi-directional Transient Voltage Suppressor (TVS) diode for circuit protection. Features a 58.1V reverse stand-off voltage and 600W peak pulse power dissipation. This single element device offers a maximum clamping voltage of 92V and a maximum peak pulse current of 6.5A. Packaged in a 2-pin SMB (DO-214AA) surface-mount plastic package with J-lead configuration, it operates across a wide temperature range of -65°C to 150°C.
LM393DR2G
Dual general-purpose comparator IC featuring low input offset voltage of 5mV and 1.3µs response time. Operates with a wide supply voltage range from 1V to 36V, with a nominal 18V. This bipolar technology component offers 2 channels, 16mA output current, and a 570mW power dissipation. Packaged in a narrow SOIC-8, it is halogen-free, lead-free, and RoHS compliant, supplied in a 2500-piece tape and reel.
1N4448
General purpose rectifier diode featuring 200mA average rectified current and 4A peak non-repetitive surge current. This through-hole component offers a fast 4ns reverse recovery time and a maximum repetitive reverse voltage of 100V. With a 500mW power dissipation and a compact DO-35 package, it operates across a wide temperature range from -65°C to 175°C.
BC337
NPN bipolar junction transistor in TO-92 package, featuring a 45V collector-emitter breakdown voltage and 800mA maximum collector current. Offers a 100MHz transition frequency and a minimum hFE of 100. Designed for through-hole mounting with a maximum power dissipation of 625mW. Operates across a wide temperature range from -55°C to 150°C.
MMSZ5229B
The MMSZ5229B is a surface mount zener diode with a working voltage of 4.3V and a tolerance of 5%. It has a maximum power dissipation of 500mW and can operate between -55°C and 150°C. The diode is lead free and RoHS compliant, packaged in tape and reel for surface mount applications.
About MBRS130LT3G
The Onsemi MBRS130LT3G Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Surface mount Schottky power rectifier featuring a 30V repetitive peak reverse voltage and a 1.0A forward current rating. This dual-terminal diode offers a wide operating temperature range from -65°C to 125°C. Constructed with silicon, it serves as a general-purpose rectifier.. Key parameters include Diode Element Material: SILICON, Diode Type: RECTIFIER DIODE, Eccn Code: EAR99, HTS Code: 8541.10.00.80, and Lead Free: Yes. MBRS130LT3G is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about MBRS130LT3G specifications
Click to ask a quick question:
Parameters
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Eccn Code | EAR99 |
| HTS Code | 8541.10.00.80 |
| Lead Free | Yes |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -65 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Pin Count | 2 |
| REACH | not_compliant |
| Rep Pk Reverse Voltage-Max | 30 |
| Terminal Position | DUAL |
