LM7915CT
1.5A negative linear voltage regulator, fixed at -15V output with 4% accuracy. Features a 1.1V dropout voltage and a maximum input voltage of -23V. Operates from 0°C to 125°C in a TO-220 through-hole package. Offers 70dB power supply rejection ratio and 3mA quiescent current.
Similar Components
LM2577T-ADJ/NOPB
Adjustable Boost Converter 3A 40V In, 60V Out TO-220
LM7815CT/NOPB
15V 1A Positive Linear Voltage Regulator, TO-220
TPS63020DSJT
Buck-Boost Converter, 3A, 5.5V, 96% Eff, 1.8-5.5V In, VSON
TPS63020
High efficiency single inductor buck-boost converter, featuring a 4A switch and 96% peak efficiency. This power management IC offers adjustable output voltage from 1.2V to 5.5V, supporting up to 3A output current. Designed for surface mount installation in a compact VSON package (4.15mm x 3.15mm x 0.95mm), it operates from 1.8V to 5.5V input voltage. With a quiescent current of 50µA and a wide operating temperature range of -40°C to 85°C, this RoHS compliant component is ideal for power-sensitive applications.
LM7905CT
Negative linear voltage regulator, fixed -5V output, 1.5A output current. Features 4% output voltage accuracy and a 1.1V dropout voltage. Operates with input voltages from -25V to -10V, with a maximum operating temperature of 125°C. Packaged in a TO-220 through-hole mount.
TL431ACLP
Adjustable precision shunt regulator, a single-channel integrated circuit, offers a 2.495V reference voltage with 1% tolerance. It operates with a cathode current of 600µA and supports an output current up to 100mA, with a maximum output voltage of 36V. This component features a TO-92 package, a maximum input voltage of 37V, and a wide operating temperature range from -40°C to 125°C. It is RoHS compliant and lead-free.
About LM7915CT
The Texas Instruments LM7915CT Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 1.5A negative linear voltage regulator, fixed at -15V output with 4% accuracy. Features a 1.1V dropout voltage and a maximum input voltage of -23V. Operates from 0°C to 125°C in a TO-220 through-hole package. Offers 70dB power supply rejection ratio and 3mA quiescent current.. Key parameters include Accuracy: 4%, Current Rating: 1.5A, Dropout Voltage: 1.1V, Height: 8.89mm, and Lead Free: Lead Free. LM7915CT is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about LM7915CT specifications
Click to ask a quick question:
Parameters
| Accuracy | 4% |
| Current Rating | 1.5A |
| Dropout Voltage | 1.1V |
| Height | 8.89mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Input Voltage | -23V |
| Max Operating Temperature | 125°C |
| Max Output Current | 50mA |
| Min Input Voltage | -17.5V |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Nominal Output Voltage | -15V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | -15V |
| Output Voltage Accuracy | 4% |

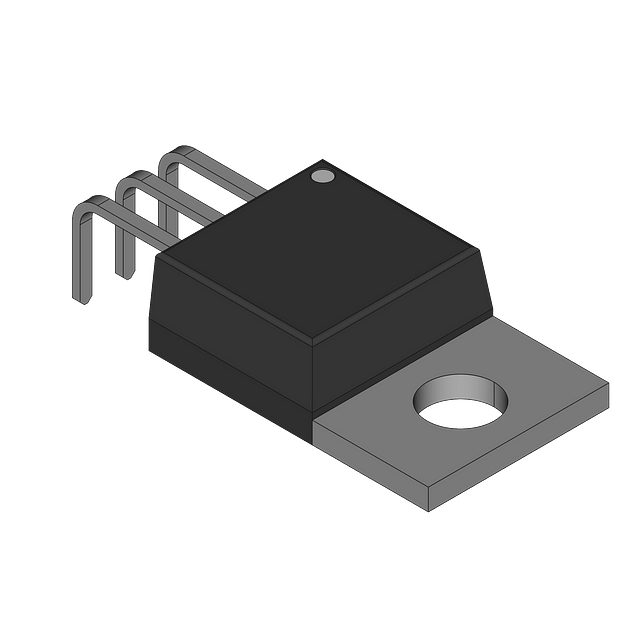

| Package/Case | TO-220 |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Polarity | Negative |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Quiescent Current | 3mA |
| Reach SVHC Compliant | No |
| RoHS | Not Compliant |
| RoHS Compliant | No |
| Width | 4.7mm |
