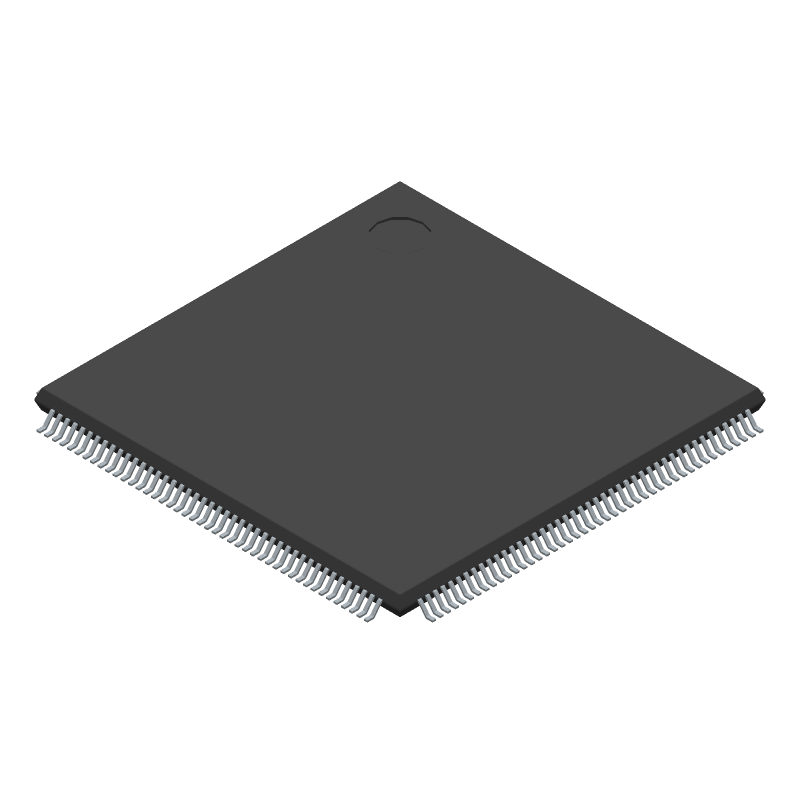

TMS320F28379DPTPS
32-bit RISC microcontroller featuring 800 MIPS performance, dual 32-bit CPUs, and dual C28x™ Control Law Accelerators (CLAs). Integrated Floating Point Unit (FPU) and Trigonometric Math Unit (TMU) accelerate complex calculations. Offers 1024 KB Flash memory, configurable logic blocks (CLBs), and external memory interface (EMIF). Includes a 16-bit Analog-to-Digital Converter (ADC) with 97 I/O lines, DMA, and DAC channels. Operates across an automotive temperature range of -40°C to 125°C, housed in a 176-terminal S-PQFP-G176 package.
Similar Components
MSP430FR5969IRGZT
16-bit RISC microcontroller featuring 64KB of Ferroelectric RAM (FRAM) and 2KB of SRAM. Operates at a maximum clock frequency of 24 MHz, with a typical speed of 16 MHz. Includes an integrated 12-bit Analog-to-Digital Converter (ADC), comparator, and DMA controller. Supports UART, SPI, and I2C communication interfaces. Packaged in a 48-VQFN with a temperature grade of INDUSTRIAL (-40°C to 85°C).
MSP430G2553IN20
16-bit RISC microcontroller operating at up to 16 MHz. Features 16KB of FLASH program memory and 512 bytes of SRAM. Includes a 10-bit Analog-to-Digital Converter (ADC), comparator, and multiple communication interfaces: UART, SPI, and I2C. Offers 16 I/O lines and a timer with PWM capabilities. Supplied in a 20-pin PDIP package, rated for industrial temperature ranges of -40°C to 85°C.
MSP430F5529IPN
16-bit microcontroller operating at 25MHz, featuring 128KB Flash and 8KB RAM. This MCU offers a 12-bit ADC with 16 channels, a comparator, and DMA for efficient data transfer. Integrated peripherals include UART, SPI, I2C, and USB, alongside a hardware multiplier. Packaged in an 80-pin LQFP, it supports a wide operating temperature range of -40°C to 85°C and a supply voltage from 1.8V to 3.6V.
About TMS320F28379DPTPS
The Texas Instruments TMS320F28379DPTPS Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 32-bit RISC microcontroller featuring 800 MIPS performance, dual 32-bit CPUs, and dual C28x™ Control Law Accelerators (CLAs). Integrated Floating Point Unit (FPU) and Trigonometric Math Unit (TMU) accelerate complex calculations. Offers 1024 KB Flash memory, configurable logic blocks (CLBs), and external memory interface (EMIF). Includes a 16-bit Analog-to-Digital Converter (ADC) with 97 I/O lines, DMA, and DAC channels. Operates across an automotive temperature range of -40°C to 125°C, housed in a 176-terminal S-PQFP-G176 package.. Key parameters include Bit Size: 32, Clock Frequency-Max: 100, DAC Channels: YES, DMA Channels: YES, and Eccn Code: 3A991A2. TMS320F28379DPTPS is manufactured by Texas Instruments as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about TMS320F28379DPTPS specifications
Click to ask a quick question:
Parameters
| Bit Size | 32 |
| Clock Frequency-Max | 100 |
| DAC Channels | YES |
| DMA Channels | YES |
| Eccn Code | 3A991A2 |
| Has ADC | YES |
| JEDEC Package Code | S-PQFP-G176 |
| Lead Free | Yes |
| Length | 24 |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of I/O Lines | 97 |
| Number of Terminals | 176 |
| PWM Channels | YES |
| RAM (bytes) | 208896 |
| REACH | Compliant |
| RoHS | Yes |
| ROM Programmability | FLASH |
| ROM (words) | 524288 |
| Speed | 200 |
| Supply Current-Max | 495 |
| Supply Voltage-Max | 1.26 |
| Supply Voltage-Min | 1.14 |
| Supply Voltage-Nom | 1.2 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | QUAD |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Width | 24 |
