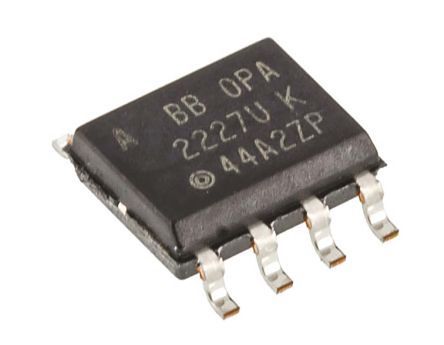

OPA2227UA
Dual high precision, low noise operational amplifier featuring an 8MHz bandwidth and 2.3V/µs slew rate. This general-purpose amplifier offers a 160dB voltage gain and 120dB common mode rejection ratio, operating from a minimum dual supply voltage of 2.5V up to 18V. Housed in an 8-SOIC package with gull-wing terminals, it provides 45mA output current per channel and operates within an industrial temperature range of -40°C to 85°C. This surface-mount component is RoHS compliant and constructed with gold-plated terminals.
Similar Components
CD4049
6-channel CMOS buffer/inverter IC, operating from 3V to 18V, features 6 independent inverting logic gates. This surface-mount device in a 16-SOIC package offers a high level output current of -5.2mA and a low level output current of 4.3mA. With a propagation delay of 50ns and a quiescent current of 4uA, it supports a wide operating temperature range of -55°C to 125°C. The component is lead-free, RoHS compliant, and utilizes gold contact plating.
LM380
Mono audio amplifier IC delivering 2.5W output power into an 8-ohm load. Features a voltage gain of 34dB and a bandwidth of 100kHz. Operates from a single supply voltage between 10V and 22V. Packaged in an 8-pin PDIP for through-hole mounting. RoHS compliant and lead-free.
OPA2134
Precision dual operational amplifier featuring 8MHz gain bandwidth product and 20V/µs slew rate. Offers low noise and distortion with 500µV input offset voltage and 5pA input bias current. Operates with dual supply voltages from 2.5V to 36V, supporting up to 18V dual supply. Delivers 35mA output current per channel and 120dB voltage gain, with 86dB common mode rejection ratio. Packaged in an 8-SOIC (D) case, this RoHS compliant component operates from -40°C to 85°C.
CD4052BM96
General-purpose multiplexer/demultiplexer IC featuring 2 channels and 4:1 configuration. Operates with dual supply voltages from 2.5V to 9V or single supply from 3V to 20V, supporting up to 18V operating supply. Offers 240 Ohm on-state resistance and 25MHz bandwidth. Packaged in a 16-SOIC surface-mount case with gold contact plating, this RoHS compliant component functions across a wide temperature range of -55°C to 125°C.
CD4030
The CD4030BE is a dual XOR gate IC with 14 terminals in a 14-pin DIP package. It operates over a temperature range of -55C to 125C and has a supply voltage range of 3V to 18V. The IC has a propagation delay of 280ns and a maximum power supply current of 30uA. It is a member of the 4000/14000/40000 logic IC family and is not a Schmitt trigger device.
TL074CN
Quad low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This general-purpose amplifier offers a 70dB common mode rejection ratio and a 200pA input bias current. Designed for dual supply operation from ±3.5V to ±18V, it boasts a 106dB voltage gain. The component is housed in a 14-PDIP package and operates across a wide temperature range of -40°C to 85°C.
About OPA2227UA
The Texas Instruments OPA2227UA Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Dual high precision, low noise operational amplifier featuring an 8MHz bandwidth and 2.3V/µs slew rate. This general-purpose amplifier offers a 160dB voltage gain and 120dB common mode rejection ratio, operating from a minimum dual supply voltage of 2.5V up to 18V. Housed in an 8-SOIC package with gull-wing terminals, it provides 45mA output current per channel and operates within an industrial temperature range of -40°C to 85°C. This surface-mount component is RoHS compliant and constructed with gold-plated terminals.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 8MHz, Common Mode Rejection Ratio: 120dB, Dual Supply Voltage: 9V, and Gain Bandwidth Product: 8MHz. OPA2227UA is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about OPA2227UA specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 8MHz |
| Common Mode Rejection Ratio | 120dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 8MHz |
| Height | 1.58mm |
| Input Bias Current | 10nA |
| Input Offset Voltage (Vos) | 200uV |
| JESD-30 Code | R-PDSO-G8 |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Dual Supply Voltage | 18V |
| Max I/O Voltage | 200uV |
| Max Operating Temperature | 85°C |
| Min Dual Supply Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Moisture Sensitivity Level | 3 |
| Nominal Gain Bandwidth Product | 8MHz |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Functions | 2 |
| Operating Supply Current | 3.7mA |
| Operating Supply Voltage | 18V |
| Output Current | 45mA |
| Output Current per Channel | 45mA |
| Package Body Material | Plastic |
| Package/Case | D |
| Package Quantity | 75 |
| Package Shape | Rectangular |
| Packaging | Rail/Tube |
| Peak Reflow Temperature (Cel) | 260°C |
| Power Supply Rejection Ratio (PSRR) | 126.02dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 2.3V/µs |
| Supply Current | 3.8mA |
| Surface Mount | Yes |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Gold |
| Terminal Form | Gull Wing |
| Terminal Position | DUAL |
| Unity Gain Bandwidth Product | 8MHz |
| Voltage Gain | 160dB |
| Width | 3.91mm |
