TPS54340DDAR

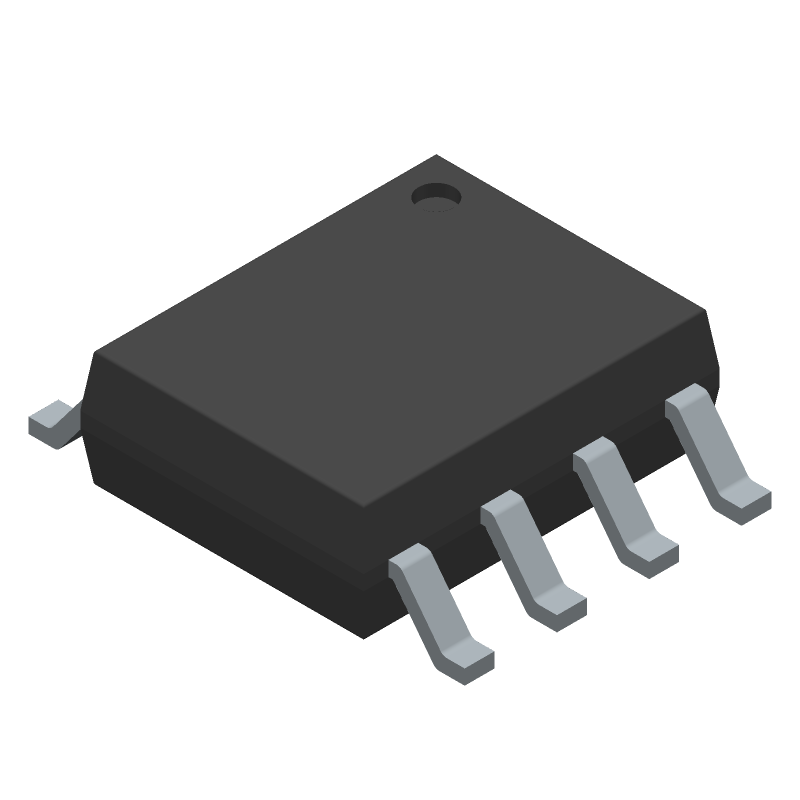

Step-down DC/DC converter with adjustable output voltage from 800mV to 41.1V, capable of delivering up to 3.5A output current. Features a wide input voltage range of 4.5V to 42V and operates efficiently with a quiescent current of 146µA. This surface mount component, housed in an 8-SO PowerPAD package, supports synchronous rectification and includes Eco-mode™ technology. Designed for operation across a temperature range of -40°C to 125°C, it is RoHS compliant and supplied on tape and reel.
Similar Components
LM2677S-ADJ/NOPB
5A Step-Down DC-DC Controller, Adj Output, 40V In, TO-263
LM338
Adjustable positive linear voltage regulator with a 5A output current capability. Features a maximum input voltage of 40V and a minimum output voltage of 1.24V, adjustable up to 32V. Offers a low dropout voltage of 3mV and a quiescent current of 3mA. Packaged in a TO-220 through-hole mount, this RoHS compliant component operates from 0°C to 125°C with a maximum power dissipation of 25W.
LM7805CT
Positive linear voltage regulator, 5V fixed output, 1A output current with 2% accuracy. Features a maximum input voltage of 35V and a dropout voltage of 2V. This through-hole component is housed in a TO-220 package, operating from 0°C to 70°C. Offers 80dB power supply rejection ratio and 8mA quiescent current.
TPS61099
0.7Vin Synchronous Boost Converter with 800 nA Ultra-Low Quiescent Current 6-DSBGA -40 to 85
LM7815
Positive fixed 15V linear voltage regulator, delivering 1A output current with 2% accuracy. Features a 2V dropout voltage and a maximum input voltage of 35V, operating from 17.7V minimum input. This through-hole component is housed in a TO-220 package, suitable for applications with ambient temperatures from 0°C to 125°C. Offers 70dB power supply rejection ratio and 8mA quiescent current.
LM2576
Adjustable DC-DC converter, step-down, single output, 3A max output current. Features a wide input voltage range of 4V to 40V and an adjustable output voltage from 1.23V to 37V. Operates at a 52kHz switching frequency with 77% efficiency. Packaged in a TO-263-5 surface mount case, this component is RoHS compliant and suitable for operation between -40°C and 125°C.
About TPS54340DDAR
The Texas Instruments TPS54340DDAR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Step-down DC/DC converter with adjustable output voltage from 800mV to 41.1V, capable of delivering up to 3.5A output current. Features a wide input voltage range of 4.5V to 42V and operates efficiently with a quiescent current of 146µA. This surface mount component, housed in an 8-SO PowerPAD package, supports synchronous rectification and includes Eco-mode™ technology. Designed for operation across a temperature range of -40°C to 125°C, it is RoHS compliant and supplied on tape and reel.. Key parameters include Lead Free: Lead Free, Max Input Voltage: 42V, Max Operating Temperature: 125°C, Max Output Current: 3.5A, and Max Output Voltage: 41.1V. TPS54340DDAR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TPS54340DDAR specifications
Click to ask a quick question:
Parameters
| Lead Free | Lead Free |
| Max Input Voltage | 42V |
| Max Operating Temperature | 125°C |
| Max Output Current | 3.5A |
| Max Output Voltage | 41.1V |
| Min Input Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 800mV |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 42V |
| Output Current | 3.5A |
| Output Type | Adjustable |
| Output Voltage | 41V |
| Package/Case | HSOP |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 146uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | Eco-Mode™ |
| Synchronous Rectifier | Yes |
