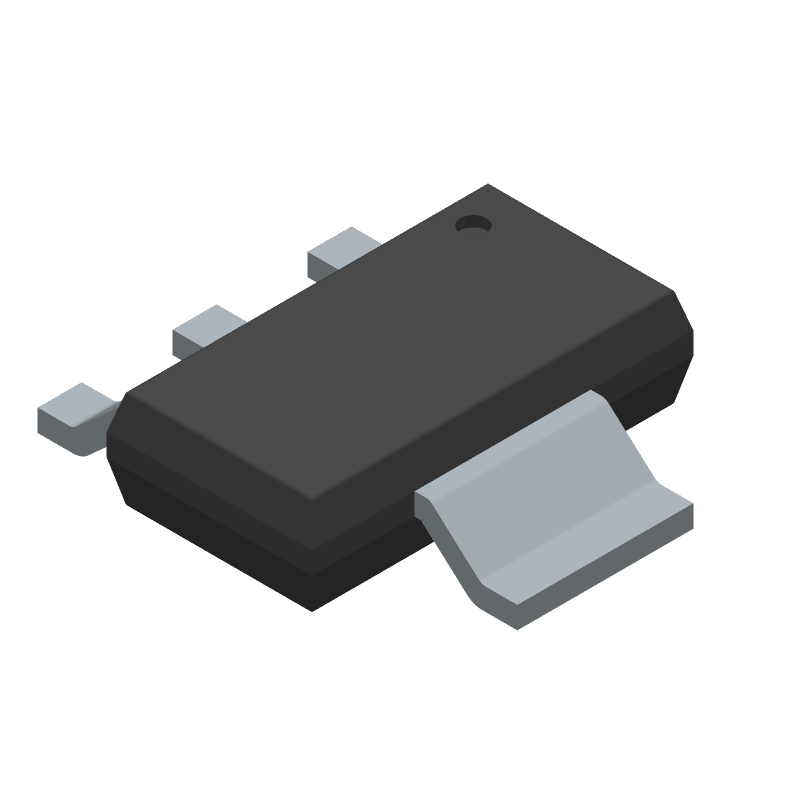

LM2940IMP-12/NOPB
1A, 12V fixed positive linear voltage regulator, surface mountable in a 4-SOT-223 package. Features a low dropout voltage of 500mV and a maximum input voltage of 26V. Operates across a wide temperature range from -40°C to 85°C with a quiescent current of 15mA. Offers a high Power Supply Rejection Ratio (PSRR) of 66dB.
Similar Components
TPS54331DR
3A, 570kHz step-down converter with adjustable output voltage from 800mV to 25V. Features a wide input voltage range of 3.5V to 28V and a maximum output current of 3A. Operates with a quiescent current of 110uA and includes Eco-mode for efficiency. Packaged in an 8-SOIC (D) case with dimensions of 5mm x 4mm x 1.58mm, this RoHS compliant component supports an operating temperature range of -40°C to 150°C.
LM2575T-ADJ/NOPB
1A Adj Step-Down DC/DC Regulator, 4V-40V In, TO-220
LM2596
12V fixed output, 3A step-down regulator with a 4.5V to 40V input range. This power management IC features a low component count and 90% efficiency. Packaged in a TO-263 surface mount case, it operates from -40°C to 125°C. The regulator offers a positive, single output configuration.
TPS63020DSJT
Buck-Boost Converter, 3A, 5.5V, 96% Eff, 1.8-5.5V In, VSON
LM2675
1A, 12V fixed output step-down regulator with a 6.5V to 40V input voltage range. Features 94% efficiency and operates from -40°C to 125°C. Surface mountable in an 8-SOIC package, this power management IC offers low component count and is RoHS compliant.
TPS61099
0.7Vin Synchronous Boost Converter with 800 nA Ultra-Low Quiescent Current 6-DSBGA -40 to 85
About LM2940IMP-12/NOPB
The Texas Instruments LM2940IMP-12/NOPB Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 1A, 12V fixed positive linear voltage regulator, surface mountable in a 4-SOT-223 package. Features a low dropout voltage of 500mV and a maximum input voltage of 26V. Operates across a wide temperature range from -40°C to 85°C with a quiescent current of 15mA. Offers a high Power Supply Rejection Ratio (PSRR) of 66dB.. Key parameters include Current Rating: 1A, Dropout Voltage: 500mV, Lead Free: Lead Free, Max Input Voltage: 26V, and Max Operating Temperature: 85°C. LM2940IMP-12/NOPB is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about LM2940IMP-12/NOPB specifications
Click to ask a quick question:
Parameters
| Current Rating | 1A |
| Dropout Voltage | 500mV |
| Lead Free | Lead Free |
| Max Input Voltage | 26V |
| Max Operating Temperature | 85°C |
| Max Output Current | 1A |
| Max Output Voltage | 12V |
| Max Supply Current | 15mA |
| Min Input Voltage | 13.6V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package/Case | SOT-223 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 66dB |
| Quest | 1693—$3.75$2.5——View offer |
| Quiescent Current | 15mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 1.6mm |
