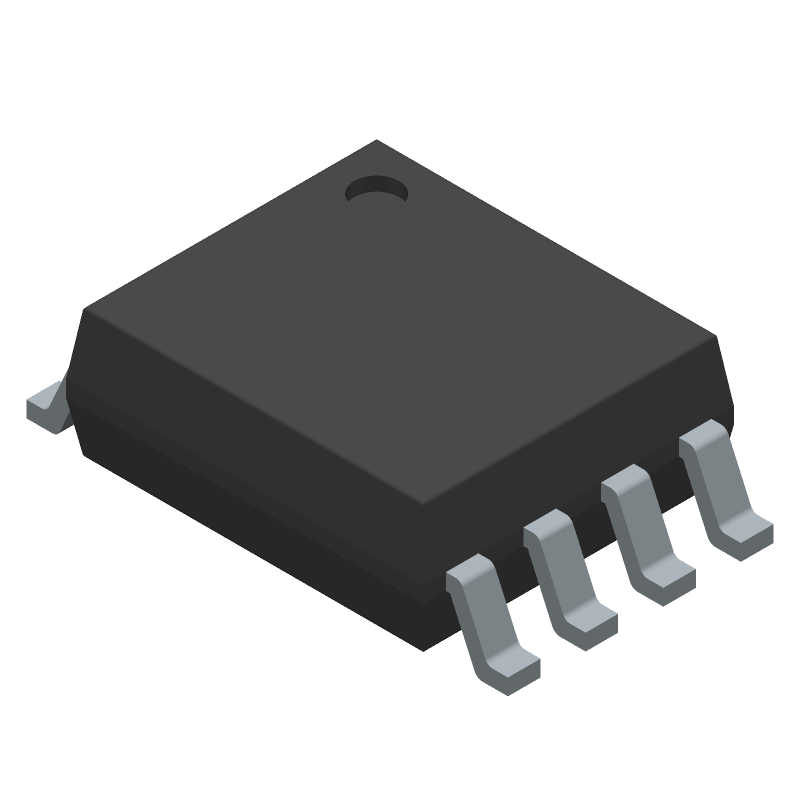

PCA9306DCUR
2-bit bidirectional voltage level translator for I2C/SMBus applications, operating up to 400 kHz. Features include a 1.5 ns propagation delay and 1.4 ns turn-on delay, supporting a wide supply voltage range from 0V to 5V. This integrated circuit offers two channels with 64mA output current, housed in an 8-VSSOP package with SMD/SMT termination. Designed for reliability, it operates across a temperature range of -40°C to 85°C and is RoHS compliant.
Similar Components
LM567
Surface mount tone decoder IC featuring a 0.5MHz operating frequency and a 4.75V to 9V supply voltage range. This integrated circuit offers a 12mA operating supply current and a maximum power dissipation of 1.1W. Packaged in an 8-pin SOIC with dimensions of 4.9mm length, 3.9mm width, and 1.45mm height, it operates within a temperature range of 0°C to 70°C. The component is lead-free and RoHS compliant.
LMC555CMM/NOPB
Single Timer IC, 3MHz, 15V, 150uA, MSOP, Surface Mount
CD40174BM
CMOS Hex D-Type Flip-Flop, 16MHz, 18V, SOIC
MAX232
Dual EIA-232 driver and receiver in a 16-PDIP through-hole package. Features 2 drivers and 2 receivers for full-duplex communication, supporting data rates up to 120Kbps. Operates with a 5V supply voltage (4.5V to 5.5V) and offers a wide temperature range of -40°C to 85°C. Includes 8 I/Os with 500mV receiver hysteresis and a propagation delay of 0.5us. This RoHS compliant component is lead-free.
CD4081BE
4-ch CMOS AND Gate IC, 3-18V, 14-PDIP, Military
CD4532
CMOS priority encoder IC, featuring 8 input lines to 3 output lines, with a bandwidth of 8MHz. This through-hole mounted component operates with a minimum supply voltage of 3V and a maximum of 18V, offering a propagation delay of 110ns. It supports a high-level output current of 6.8mA and a low-level output current of 6.8mA, with a maximum operating temperature of 125°C. The device is RoHS compliant and packaged in a 16-pin PDIP tube.
About PCA9306DCUR
The Texas Instruments PCA9306DCUR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 2-bit bidirectional voltage level translator for I2C/SMBus applications, operating up to 400 kHz. Features include a 1.5 ns propagation delay and 1.4 ns turn-on delay, supporting a wide supply voltage range from 0V to 5V. This integrated circuit offers two channels with 64mA output current, housed in an 8-VSSOP package with SMD/SMT termination. Designed for reliability, it operates across a temperature range of -40°C to 85°C and is RoHS compliant.. Key parameters include Channel Type: Bidirectional, Frequency: 400kHz, Lead Free: Lead Free, Logic Function: Translator, and Max Operating Temperature: 85°C. PCA9306DCUR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about PCA9306DCUR specifications
Click to ask a quick question:
Parameters
| Channel Type | Bidirectional |
| Frequency | 400kHz |
| Lead Free | Lead Free |
| Logic Function | Translator |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 0V |
| Number of Channels | 2 |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Output Current | 64mA |
| Package/Case | VSSOP |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 1.5ns |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 7,9103000———$0.4573ReelView offer |
| Termination | SMD/SMT |
| Thickness | 850um |
| TME | 3,7261$0.84$0.62$0.444$0.328pcsView offer |
| Turn-On Delay Time | 1.4ns |
| Weight | 0.000339oz |
