LMC6484IM/NOPB

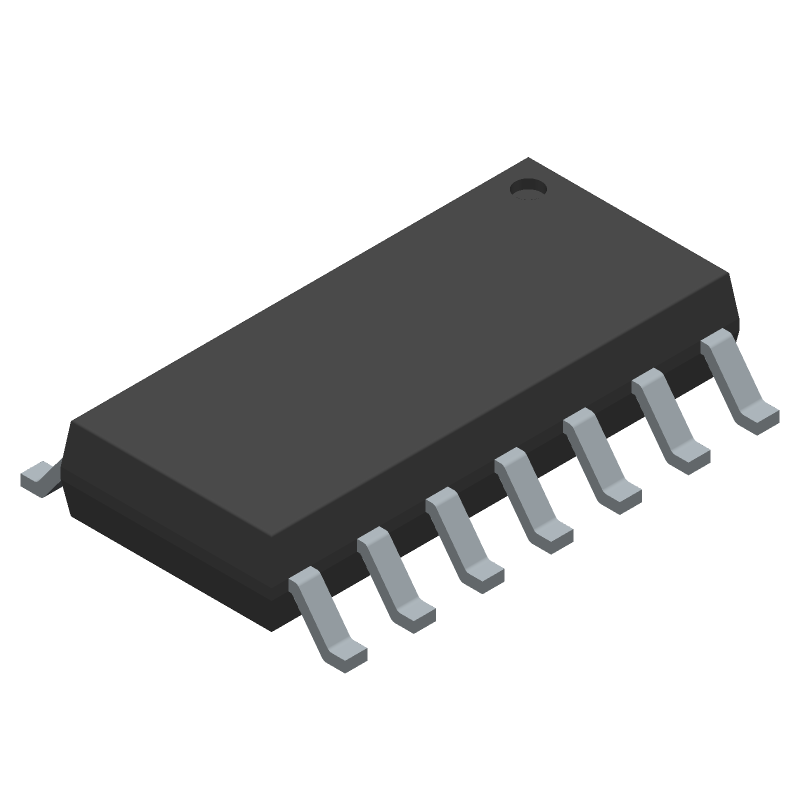

Precision CMOS operational amplifier featuring rail-to-rail input and output capabilities. This quad amplifier offers ultra-low input bias current of 0.02pA and a low input offset voltage of 110µV. With a 1.5MHz bandwidth and 1.3V/µs slew rate, it is suitable for general-purpose applications. The device operates from a 3V to 15.5V supply range and is housed in a 14-SOIC surface-mount package.
Similar Components
DRV8871DDA
45V 3.6A H-Bridge Motor Driver, 8-SO PowerPAD
LM380N-8/NOPB
1-CH Audio Amp 2.5W Class-AB 8-Pin PDIP 100kHz
ADS1015IDGSR
A precision 12-bit Analog-to-Digital Converter (ADC) offers up to four single-ended or two differential input channels, featuring an integrated programmable gain amplifier (PGA), internal reference, and oscillator for streamlined sensor measurement. It provides flexible sampling rates ranging from 128 SPS to 3300 SPS, leveraging a Sigma-Delta architecture to achieve high accuracy across PGA input ranges from ±256 mV to ±6.144 V. Designed for space-constrained applications, it communicates via an I2C-compatible interface supporting four pin-selectable addresses. Operating over a wide supply voltage range of 2.0V to 5.5V, the ADC maintains a low typical current consumption of 150 µA in continuous-conversion mode, suitable for extended operation in environments from -40°C to +125°C. Additional integrated features include a programmable comparator and single-shot mode with auto power-down, all housed in an ultra-small 10-pin VSSOP package. The ADS1015 is an ultra-small, low-power, 12-bit precision analog-to-digital converter (ADC) featuring an internal reference, oscillator, and a programmable gain amplifier (PGA). It is designed for space-constrained sensor measurement applications with an I2C-compatible interface.
TL071CP
JFET input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This single-channel amplifier offers a 200pA input bias current and 10mV input offset voltage. Operating with dual supply voltages from 3.5V to 18V, it provides a 70dB common mode rejection ratio and 106.02dB voltage gain. Packaged in a 1-amplifier configuration, it operates within a -40°C to 85°C temperature range.
LM675T/NOPB
Power Op Amp, 5.5MHz BW, 3A Out, TO-220, 8-30V Dual Supply
CD4051BE
Single 8:1 analog multiplexer, featuring an 8:1 multiplexer architecture with 8 inputs and 1 output. This through-hole component is housed in a 16-pin PDIP plastic dual in-line package with a 2.54mm pin pitch. Operating temperature range spans from -55°C to 125°C, with a maximum on-resistance of 1000 Ohms.
About LMC6484IM/NOPB
The Texas Instruments LMC6484IM/NOPB Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Precision CMOS operational amplifier featuring rail-to-rail input and output capabilities. This quad amplifier offers ultra-low input bias current of 0.02pA and a low input offset voltage of 110µV. With a 1.5MHz bandwidth and 1.3V/µs slew rate, it is suitable for general-purpose applications. The device operates from a 3V to 15.5V supply range and is housed in a 14-SOIC surface-mount package.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 1.5MHz, Common Mode Rejection Ratio: 65dB, Gain Bandwidth Product: 1.5MHz, and Height: 1.45mm. LMC6484IM/NOPB is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about LMC6484IM/NOPB specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1.5MHz |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 1.5MHz |
| Height | 1.45mm |
| Input Bias Current | 0.02pA |
| Input Offset Voltage (Vos) | 110uV |
| Lead Free | Lead Free |
| Length | 8.64mm |
| Max Operating Temperature | 85°C |
| Max Supply Current | 2.8mA |
| Max Supply Voltage | 15.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 2.6mA |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Package/Case | SOIC |
| Package Quantity | 55 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Slew Rate | 1.3V/µs |
| Supply Current | 2.6mA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 1.5MHz |
| Voltage | 15V |
| Voltage Gain | 116.47dB |
| Width | 3.91mm |
