LP2985-33DBVR

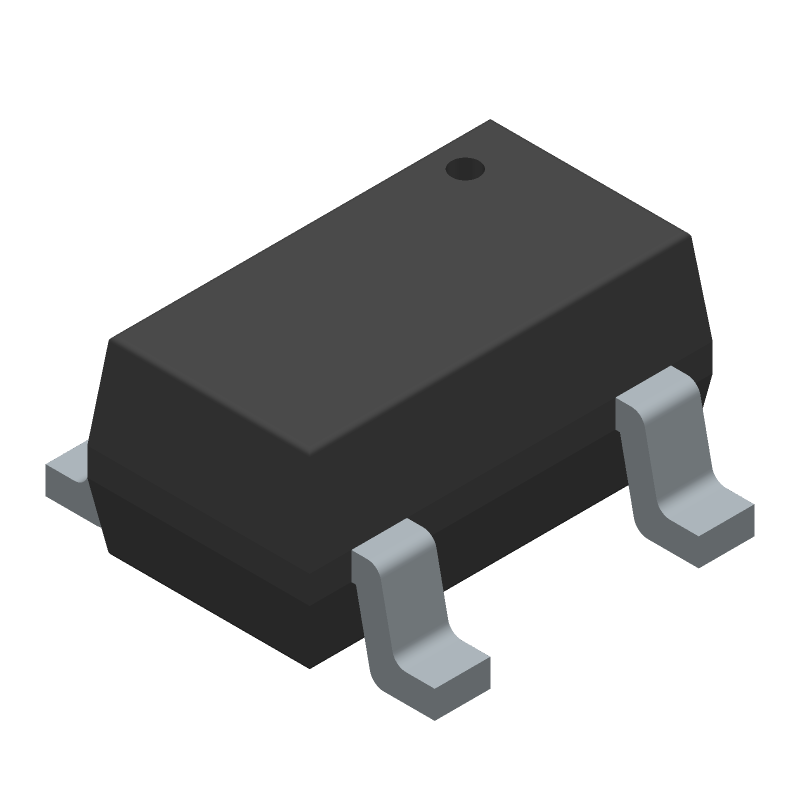

150mA, 3.3V fixed output positive linear voltage regulator with 1.5% accuracy. Features a low dropout voltage of 280mV and a maximum input voltage of 16V. Operates across a wide temperature range of -40°C to 125°C. Packaged in a compact SOT-23 (5-pin) surface-mount case, supplied on tape and reel. RoHS compliant.
Similar Components
TPS61040DBVR
Boost DC-DC converter with adjustable output voltage from 1.8V to 28V. Features a 1MHz operating frequency, 86% efficiency, and supports input voltages from 1.8V to 6V. Delivers up to 400mA output current with a high-level output current of 90mA. Packaged in a 5-pin SOT-23, this RoHS compliant component operates from -40°C to 85°C.
LM2596S-ADJ
7.5A SWITCHING REGULATOR, 173kHz SWITCHING FREQ-MAX, PSSO5, TO-263, SMT-5
LM338
Adjustable positive linear voltage regulator with a 5A output current capability. Features a maximum input voltage of 40V and a minimum output voltage of 1.24V, adjustable up to 32V. Offers a low dropout voltage of 3mV and a quiescent current of 3mA. Packaged in a TO-220 through-hole mount, this RoHS compliant component operates from 0°C to 125°C with a maximum power dissipation of 25W.
LM2576S-ADJ
The LM2576S-ADJ is a DC/DC controller with a maximum operating temperature of 125°C and a temperature grade of AUTOMOTIVE. It has a single terminal position and a pin count of 4. The device is packaged in a TO-263 with dimensions of 8.635mm in width and 10.16mm in length. It can handle input voltages between 8V and 40V.
LM2576S-ADJ/NOPB
Adjustable DC-DC Conv, 3A, 40V In, 37V Out, TO-263
LM338T/NOPB
5A Adj. LDO Regulator, 40V In, TO-220, 1.24-32V Out
About LP2985-33DBVR
The Texas Instruments LP2985-33DBVR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 150mA, 3.3V fixed output positive linear voltage regulator with 1.5% accuracy. Features a low dropout voltage of 280mV and a maximum input voltage of 16V. Operates across a wide temperature range of -40°C to 125°C. Packaged in a compact SOT-23 (5-pin) surface-mount case, supplied on tape and reel. RoHS compliant.. Key parameters include Accuracy: 1.5%, Dropout Voltage: 280mV, Height: 1.45mm, Input Bias Current: 850uA, and Lead Free: Lead Free. LP2985-33DBVR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about LP2985-33DBVR specifications
Click to ask a quick question:
Parameters
| Accuracy | 1.5% |
| Dropout Voltage | 280mV |
| Height | 1.45mm |
| Input Bias Current | 850uA |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Input Voltage | 16V |
| Max Operating Temperature | 125°C |
| Max Output Current | 150mA |
| Max Supply Current | 2.5mA |
| Max Supply Voltage | 16V |
| Min Input Voltage | 2.2V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.2V |
| Nominal Output Voltage | 3.3V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Output Voltage Accuracy | 1.5% |
| Package/Case | SOT-23 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 45dB |
| Quiescent Current | 850uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Thickness | 1.2mm |
| TME | 3,4711$0.49$0.34$0.308$0.269pcsView offer |
| Width | 1.6mm |
