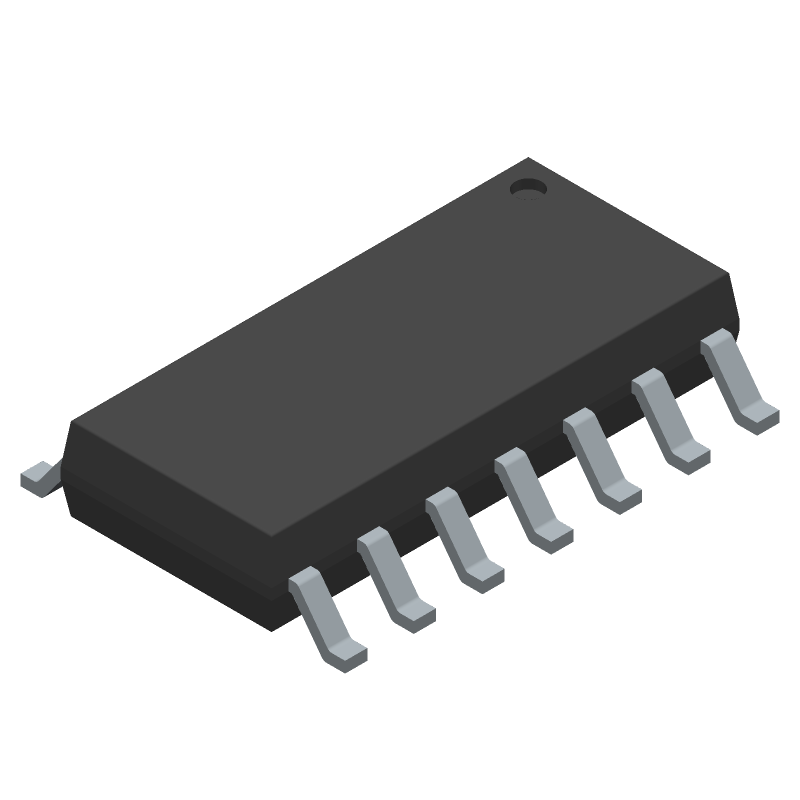

CD4066BM
10-pA on-state leakage current, 20-V, 1:1 (SPST), 4-channel analog switch 14-SOIC -55 to 125
Similar Components
CD4071BE
CMOS OR Gate IC, 4-Element, 2-IN, 14-Pin PDIP
DRV8825PWPR
45V 2.5A Stepper Motor Driver IC, HTSSOP, 1/32 Microstepping
CD4069UBF
CMOS Hex Inverter 14-CDIP -55 to 125
LM3914
10-channel dot/bar display driver IC for LCD applications. Features 10 outputs, each capable of driving up to 30mA. Operates from a 3V to 25V supply voltage with a typical supply current of 6.1mA. Packaged in a 20-PLCC surface-mount format, this lead-free and RoHS-compliant component offers a maximum power dissipation of 1.365W and operates within a temperature range of 0°C to 70°C.
TPA3116D2DAD
Audio Amp Speaker 1-CH Mono/2-CH Stereo 50W Class-D 32-Pin HTSSOP EP Tube
CD4049UBD
6-Ch CMOS Buffer/Inverter IC, 3-18V, 125°C, SOIC
About CD4066BM
The Texas Instruments CD4066BM Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 10-pA on-state leakage current, 20-V, 1:1 (SPST), 4-channel analog switch 14-SOIC -55 to 125. Key parameters include Eccn Code: EAR99, HTS Code: 8542.39.00.01, JEDEC Package Code: R-PDSO-G14, Lead Free: Yes, and Length: 8.65. CD4066BM is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about CD4066BM specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| JEDEC Package Code | R-PDSO-G14 |
| Lead Free | Yes |
| Length | 8.65 |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -55 |
| Neg Supply Voltage-Nom (Vsup) | -5 |
| Number of Channels | 4 |
| Number of Functions | 4 |
| Number of Terminals | 14 |
| Pin Count | 14 |
| REACH | Compliant |
| RoHS | Yes |
| Schukat | —50—$1.0366$0.7405——View offer |
| Supply Voltage-Max (Vsup) | 18 |
| Supply Voltage-Min (Vsup) | 3 |
| Supply Voltage-Nom (Vsup) | 5 |
| Temperature Grade | MILITARY |
| Terminal Position | DUAL |
| Width | 3.91 |
