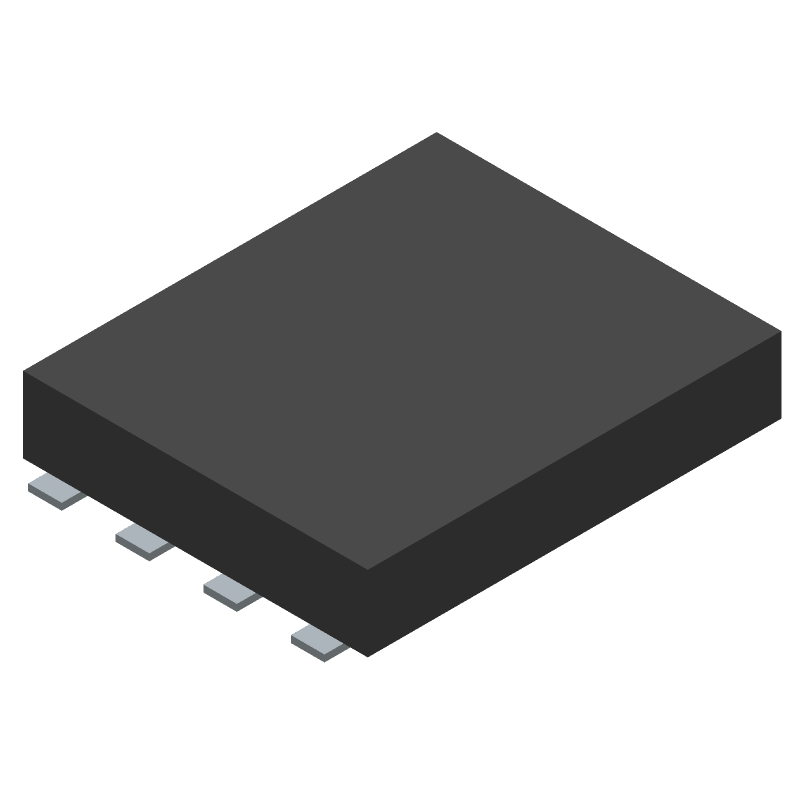

FDMS86180
N-Channel Shielded Gate PowerTrench® MOSFET 100V, 151A, 3.2mΩ, 3000-REEL
Similar Components
MMSZ5245B
Surface mount Zener diode, 500mW power dissipation, featuring a 15V Zener voltage with a 5% tolerance. This voltage regulator offers a low impedance of 16 Ohms and a maximum reverse leakage current of 100nA. Operating across a wide temperature range from -55°C to 150°C, it is RoHS compliant and packaged in a 3000-piece reel.
BZX84C5V6
Surface mount Zener diode with a 5.6V working voltage and 350mW power dissipation. Features a 5.6V Zener voltage with a 7% tolerance and 5% voltage tolerance. Operating temperature range from -55°C to 150°C. Housed in a compact SOT-23 package with a capacitance of 200pF and impedance of 40 Ohms.
LM555CN
Single timer IC for clock generation and synthesis, operating from a 4.5V to 16V supply. Features a 2MHz frequency capability and a 7.5mA operating supply current. This through-hole component offers 200mA output current with a 50mA low-level output and -200mA high-level output. Packaged in PDIP with lead-free and RoHS compliance, it has a maximum power dissipation of 600mW and operates between 0°C and 70°C.
MMSZ5235B
Surface mount Zener diode featuring a 6.8V working voltage with 5% tolerance. This component offers 500mW power dissipation and a low impedance of 5 Ohms. Operating across a wide temperature range from -55°C to 150°C, it is RoHS compliant and packaged in tape and reel for efficient assembly.
FAN7382MX
High-side/low-side gate driver IC featuring 625V output voltage and 0.65A sink/0.35A source current. This surface mount SOIC package component operates with TTL input logic compatibility and offers a maximum supply voltage of 20V. Key specifications include a 300ns propagation delay, 80ns fall time, and a maximum power dissipation of 625mW. Designed for robust performance, it operates within a temperature range of -40°C to 125°C and is RoHS compliant.
MBR0530T1G
Surface mount Schottky power rectifier with a maximum repetitive peak reverse voltage of 30 V and a continuous forward current of 500 mA. Features a 2-terminal, dual terminal configuration with a silicon diode element. Operates within a temperature range of -65°C to 125°C.
About FDMS86180
The Onsemi FDMS86180 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: N-Channel Shielded Gate PowerTrench® MOSFET 100V, 151A, 3.2mΩ, 3000-REEL. Key parameters include JEDEC Package Code: MO-240AA, Lead Free: Yes, Max Operating Temperature: 150, Military Spec: False, and Min Operating Temperature: -55. FDMS86180 is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about FDMS86180 specifications
Click to ask a quick question:
Parameters
| JEDEC Package Code | MO-240AA |
| Lead Free | Yes |
| Max Operating Temperature | 150 |
| Military Spec | False |
| Min Operating Temperature | -55 |
| Number of Elements | 1 |
| Number of Terminals | 5 |
| REACH | not_compliant |
| Terminal Position | DUAL |
