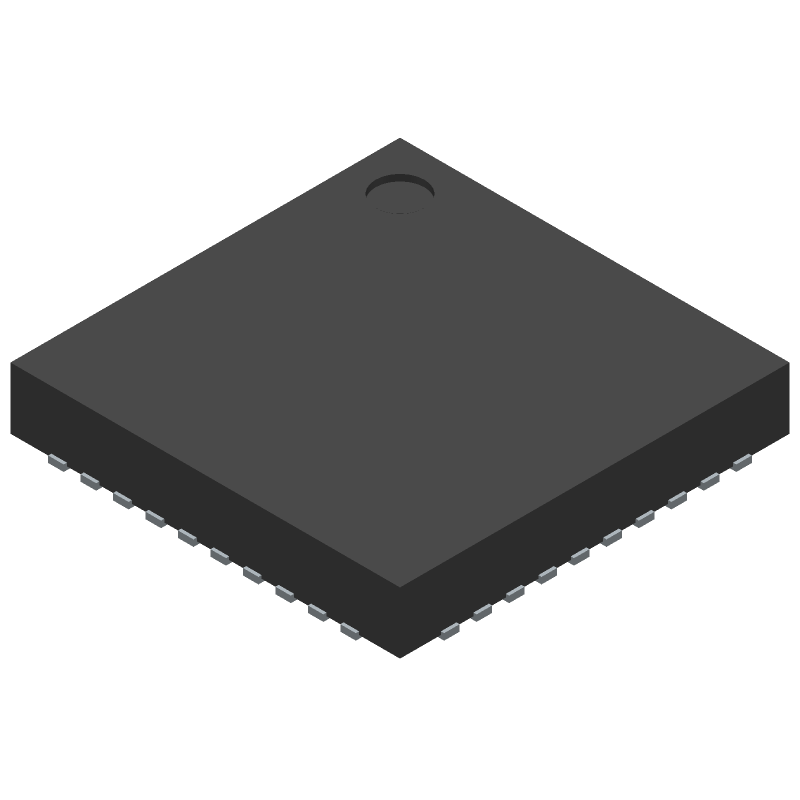

CC2530F256RHAR
802.15.4/ZigBee/RF4CE System-on-Chip (SoC) operating at 2.4GHz with a data rate of 250Kbps. Features 256KB FLASH memory, 8KB RAM, and an 8051 core architecture. Offers 21 GPIOs, SPI, USART, UART, and 2-Wire interfaces. Operates from 2V to 3.6V with a receiving current of 24.3mA and transmitting current of 33.5mA. Packaged in a 40-pin VQFN with gold contact plating, suitable for surface mounting.
Similar Components
CC2500-RTY1
2.4GHz RF Transceiver IC, SPI, VQFN EP, 500Kbps, 1.8-3.6V
CC2591
LNA/PA RF Front End 4.8dB 22dB 16-Pin VQFN EP T/R
CC1101
RF and Wireless IC for cellular applications, featuring a 300MHz to 928MHz frequency range and a maximum data rate of 600Kbps. This surface mount component offers a sensitivity of -116dBm and a maximum output power of 10dBm. Operating with a supply voltage between 1.8V and 3.6V, it utilizes an SPI interface and consumes 17.1mA during receiving and 34.2mA during transmitting. The VQFN package measures 4mm x 4mm x 0.85mm and operates within a temperature range of -40°C to 85°C.
CC2541
KIT EVAL MODULE FOR CC2541
CC2591RGVR
LNA/PA RF Front End 4.8dB 22dB 16-Pin VQFN EP T/R
CC1101RTK
RF Transceiver IC, 300-928MHz, 600Kbps, SPI, VQFN, 10dBm
About CC2530F256RHAR
The Texas Instruments CC2530F256RHAR Rf Wireless datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 802.15.4/ZigBee/RF4CE System-on-Chip (SoC) operating at 2.4GHz with a data rate of 250Kbps. Features 256KB FLASH memory, 8KB RAM, and an 8051 core architecture. Offers 21 GPIOs, SPI, USART, UART, and 2-Wire interfaces. Operates from 2V to 3.6V with a receiving current of 24.3mA and transmitting current of 33.5mA. Packaged in a 40-pin VQFN with gold contact plating, suitable for surface mounting.. Key parameters include Contact Plating: Gold, Core Architecture: 8051, Current - Receiving: 24.3mA, Current - Transmitting: 33.5mA, and Data Bus Width: 8b. CC2530F256RHAR is manufactured by Texas Instruments as part of their Rf Wireless product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Rf Wireless
Ask AI Assistant
Ask questions about CC2530F256RHAR specifications
Click to ask a quick question:
Parameters
| Contact Plating | Gold |
| Core Architecture | 8051 |
| Current - Receiving | 24.3mA |
| Current - Transmitting | 33.5mA |
| Data Bus Width | 8b |
| Data Rate | 250Kbps |
| Frequency | 2.4GHz |
| Interface | SPI, USART, UART, 2-Wire |
| Lead Free | Lead Free |
| Max Frequency | 2.507GHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Frequency | 2.394GHz |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of ADC Channels | 8 |
| Number of GPIO | 21 |
| Number of I/Os | 21 |
| Number of Programmable I/O | 21 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 1 |
| Operating Frequency | 2.4 GHz |
| Output Power (dBm) | 4.5dBm |
| Package/Case | VQFN |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Sensitivity | -97dBm |
| Watchdog Timer | Yes |
| Weight | 0.002822oz |
