PCM5102APWR

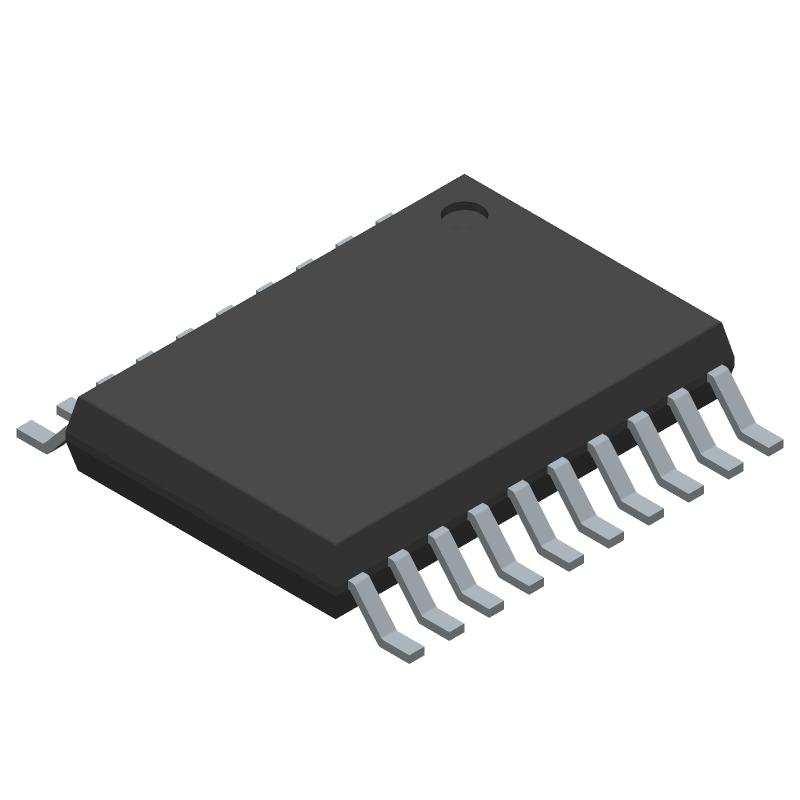

High-fidelity stereo digital-to-analog converter (DAC) featuring 32-bit resolution and a 384kHz sampling rate. This audio DAC offers 112dB signal-to-noise ratio and 2VRMS DirectPath™ output. It supports serial I2S interface and operates within a -25°C to 85°C temperature range. Packaged in a 20-TSSOP for surface mounting, this component is lead-free and RoHS compliant.
Similar Components
LMC555
Single timer IC, surface mount, MSOP package. Features a 3MHz frequency, 1.5V to 15V supply voltage range, and 150µA operating supply current. Offers 100mA output current with a 100ns propagation delay and turn-on delay time. Operates from -40°C to 125°C with 555mW power dissipation. RoHS compliant and lead-free.
LM3915N-1/NOPB
Dot/Bar Display Driver IC, 10-Seg, 3-25V, 30mA, PDIP
NE5532
DUAL OP-AMP, 4000uV OFFSET-MAX, 10MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, DIP-8
NE5532P
Dual-channel, general-purpose operational amplifier with a 10MHz bandwidth and 9V/µs slew rate. Features low noise, 100dB voltage gain, and 70dB common mode rejection ratio. Operates from a 5V to 15V dual supply voltage, with a 26V output swing. Housed in an 8-PDIP package, this RoHS compliant component is suitable for audio applications within a 0°C to 70°C temperature range.
LM2901DR
Quad differential comparator IC, featuring 4 independent comparator channels. Operates with a wide supply voltage range from 1V to 30V, with a maximum dual supply voltage of 15V. Offers a typical response time of 1.3µs and a voltage gain of 100dB. Designed for surface mounting in a SOIC package, this component boasts a maximum operating temperature of 125°C and a minimum of -40°C. Key electrical characteristics include an input bias current of 250nA and an input offset voltage of 7mV.
CD4051BM96
16-pin SOIC analog multiplexer, featuring an 8:1 channel configuration and logic-level conversion. Operates across a wide supply voltage range from 3V to 20V, with a maximum input voltage of 20.5V and a minimum of -0.5V. This component supports a broad operating temperature range of -55°C to 125°C, suitable for military applications. The device offers a single function with dual terminal positioning and a JEDEC package code of R-PDSO-G16.
About PCM5102APWR
The Texas Instruments PCM5102APWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High-fidelity stereo digital-to-analog converter (DAC) featuring 32-bit resolution and a 384kHz sampling rate. This audio DAC offers 112dB signal-to-noise ratio and 2VRMS DirectPath™ output. It supports serial I2S interface and operates within a -25°C to 85°C temperature range. Packaged in a 20-TSSOP for surface mounting, this component is lead-free and RoHS compliant.. Key parameters include Conversion Rate: 384KS/s, Interface: Serial, I2S, Lead Free: Lead Free, Max Operating Temperature: 85°C, and Max Power Dissipation: 187mW. PCM5102APWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about PCM5102APWR specifications
Click to ask a quick question:
Parameters
| Conversion Rate | 384KS/s |
| Interface | Serial, I2S |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 187mW |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Analog Outputs | 2 |
| Number of Bits | 32 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of DAC Channels | 2 |
| Output Type | Voltage |
| Package/Case | TSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Consumption | 59.4mW |
| Quest | 4005—$3.425$3.014——View offer |
| Reach SVHC Compliant | No |
| Resolution | 32b |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Sampling Rate | 384KS/s |
| Series | DirectPath™ |
| Signal to Noise Ratio (SNR) | 112dB |
| Supply Type | Analog, Digital |
