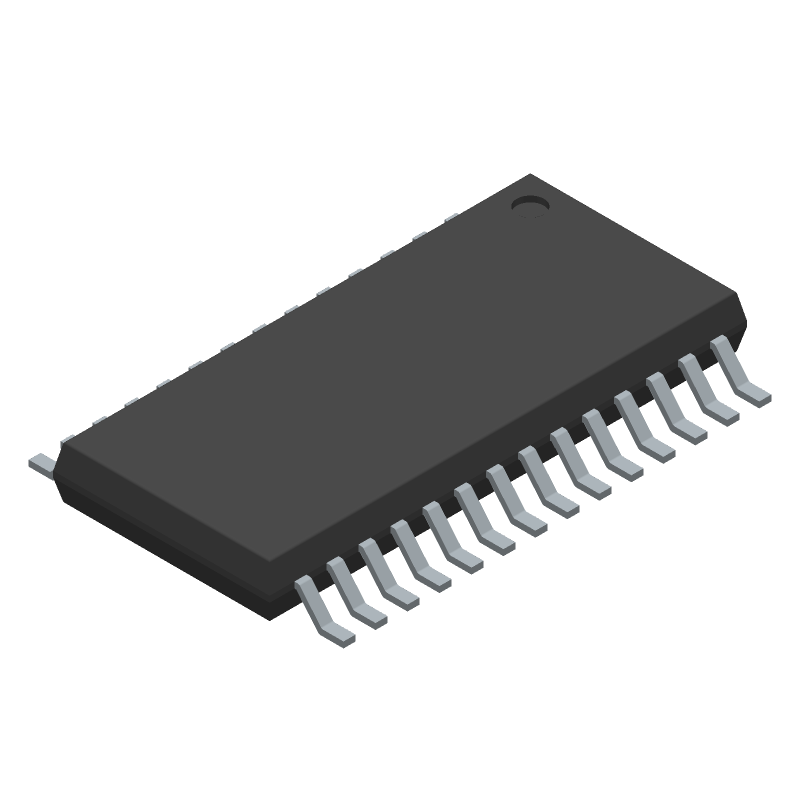

DRV8313PWPR
Triple half-bridge motor driver IC featuring a parallel interface and surface mount HTSSOP package. Operates from 8V to 60V supply voltage with a maximum output current of 1.75A per channel. Designed for a wide temperature range of -40°C to 125°C, this lead-free and RoHS compliant component is supplied in tape and reel packaging.
Similar Components
NE5534
Low-noise operational amplifier featuring a 10MHz bandwidth and 13V/µs slew rate. This general-purpose, bipolar amplifier offers a 100dB voltage gain and a 38mA output current. Designed for dual supply operation from ±5V to ±15V, it boasts a 70dB common-mode rejection ratio and a 500µV input offset voltage. Packaged in an 8-SOIC case, this RoHS compliant component operates within a 0°C to 70°C temperature range.
SN65HVD3082
Half-duplex RS-485 transceiver with a 200Kbps data rate. Features a single driver and receiver, operating from a 4.5V to 5.5V supply voltage with a typical 5V operating voltage and 900uA supply current. Encased in an 8-PDIP package, this lead-free component operates within a temperature range of -40°C to 85°C.
DRV8833CRTET
10.8-V, 1-A dual H-bridge motor driver with current regulation 16-WQFN -40 to 85
DRV8871DDA
45V 3.6A H-Bridge Motor Driver, 8-SO PowerPAD
CD4001UBPW
4-Ch CMOS NOR Gate IC, 3-18V, 2-Input, 50ns, 14-TSSOP
LM2904D
Dual-channel, general-purpose operational amplifier featuring a 700kHz gain bandwidth product and 0.3V/µs slew rate. This bipolar IC offers a wide operating supply voltage range from 3V to 26V, with a maximum dual supply voltage of 13V. Designed for surface mounting, it comes in an 8-SOIC package with dimensions of 4.9mm (L) x 3.91mm (W) x 1.58mm (H). Operating across a temperature range of -40°C to 125°C, it provides 100dB voltage gain and 30mA output current per channel.
About DRV8313PWPR
The Texas Instruments DRV8313PWPR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Triple half-bridge motor driver IC featuring a parallel interface and surface mount HTSSOP package. Operates from 8V to 60V supply voltage with a maximum output current of 1.75A per channel. Designed for a wide temperature range of -40°C to 125°C, this lead-free and RoHS compliant component is supplied in tape and reel packaging.. Key parameters include Interface: Parallel, Lead Free: Lead Free, Max Operating Temperature: 125°C, Max Supply Voltage: 60V, and Min Operating Temperature: -40°C. DRV8313PWPR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about DRV8313PWPR specifications
Click to ask a quick question:
Parameters
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 60V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1.75A |
| Package/Case | HTSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS | Compliant |
| RoHS Compliant | Yes |
