MAX3232
The transceiver integrates two drivers and two receivers for RS-232 serial links from a 3.0 V to 5.5 V single supply. It uses a capacitor charge pump with four 0.1 µF external capacitors and supports guaranteed data rates to 120 kbit/s. Receiver inputs tolerate ±25 V and transmitter outputs deliver RS-232 levels with at least ±5 V swing into standard loads. Multiple 16-pin package options exist for commercial and extended temperature suffixes.
Similar Components
T60100-2C
This 600V fuse features a 100A current rating and is constructed with a polyester body. It is approved to UL and CSA standards and has a flammability rating of UL94 V-0. The fuse is mounted via a lug termination and is available in bulk packaging.
MM1Z18B
Zener Diode,
TIP42
PNP Bipolar Junction Transistor (BJT) in a TO-220 package, featuring a maximum collector current of 6A and a collector-emitter breakdown voltage of 40V. This through-hole mounted transistor offers a minimum DC current gain (hFE) of 15 and a transition frequency of 3MHz. With a maximum power dissipation of 2W and an operating temperature range of -65°C to 150°C, it is RoHS compliant and lead-free.
SMAJ24CA
Bidirectional transient voltage suppressor diode, 400W peak pulse power, 24V DC rated voltage. Features 10.3A peak pulse current and 3.3W power dissipation. Offers a 26.7V minimum breakdown voltage and 38.9V clamping voltage. Packaged in a DO-214AC surface mount case, this silicon diode is RoHS compliant.
BK/MDL-1-2/10-R
The MDL Series fuse holder is a time delay type, rated for 1.2A and 250V AC. It has a nickel-plated contact and is lead free. The holder is available in a bulk packaging quantity of 100. It is RoHS compliant and suitable for general use.
VG95328M20-16SW
CIRCULAR, SIZE 20, 16WAY, SKT; Product Range:MIL-C-26482 Series I (VG95328); Gender:Plug; No. of Contacts:16; Contact Gender:Socket; Contact Termination Type:Crimp; Connector Mounting:Cable Mount; Insert Arrangement:20-16; Connector Body Material:Aluminium Body; Connector Type:Circular Military; Contact Material:Copper Alloy; Contact Plating:Gold Plated Contacts; Connector Shell Size:20; SVHC:Cadmium (15-Jun-2015); Contact Termination:Crimp
About MAX3232

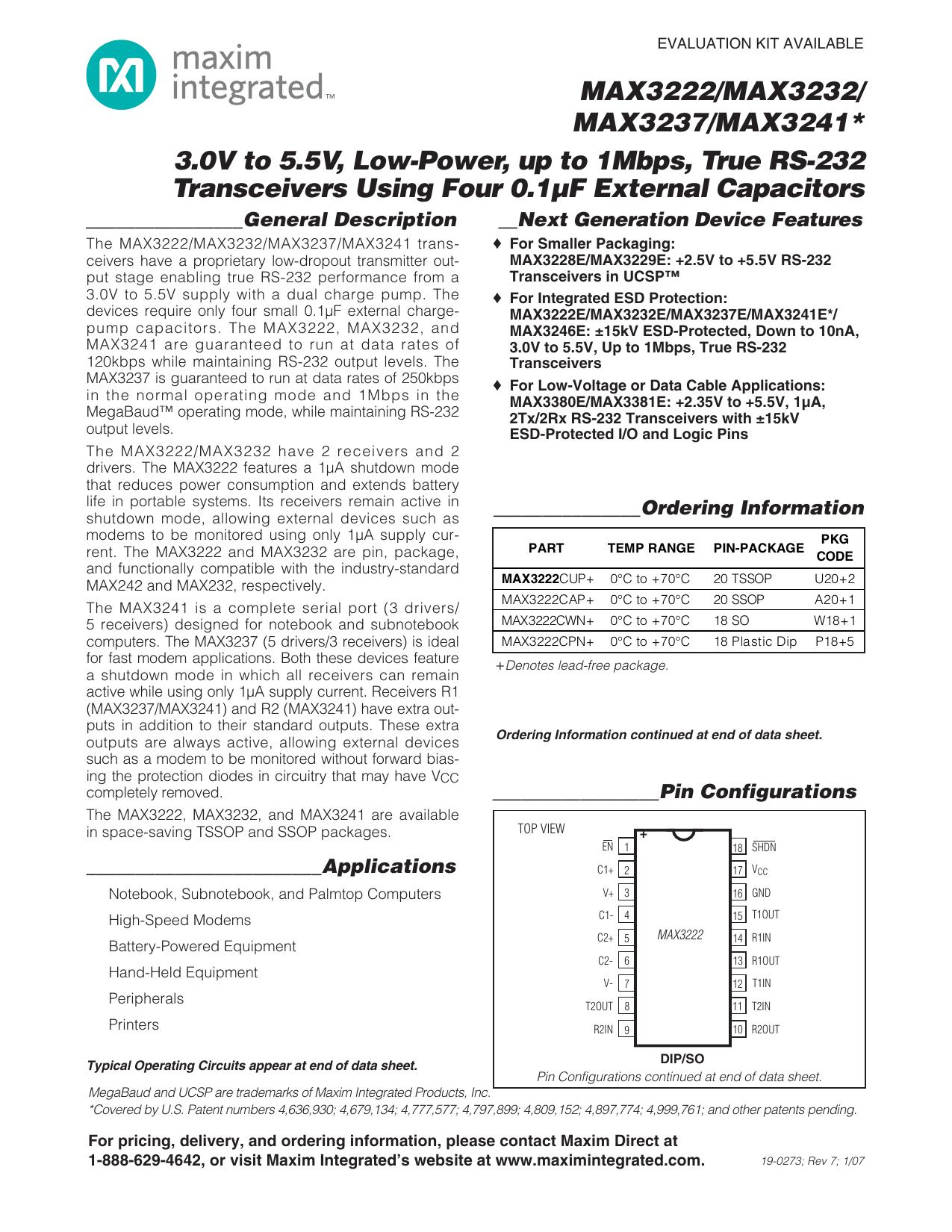

The Maxim Integrated MAX3232 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The transceiver integrates two drivers and two receivers for RS-232 serial links from a 3.0 V to 5.5 V single supply. It uses a capacitor charge pump with four 0.1 µF external capacitors and supports guaranteed data rates to 120 kbit/s. Receiver inputs tolerate ±25 V and transmitter outputs deliver RS-232 levels with at least ±5 V swing into standard loads. Multiple 16-pin package options exist for commercial and extended temperature suffixes.. Key parameters include External Charge-Pump Capacitors: 4 × 0.1, Guaranteed Data Rate: 120, Interface: RS-232, Number of Drivers: 2, and Number of Receivers: 2. MAX3232 is manufactured by Maxim Integrated as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
