TPS63020DSJR
High efficiency single inductor buck-boost converter, featuring 96% peak efficiency and a 4A switch. This power management IC supports adjustable output voltages from 1.2V to 5.5V with a maximum output current of 3A. Operating across an input voltage range of 1.8V to 5.5V, it offers a 100% maximum duty cycle and a low quiescent current of 50µA. Packaged in a compact 3mm x 4mm x 1mm VSON surface mount package, this RoHS compliant component is ideal for space-constrained applications.
Similar Components
LM7905CT/NOPB
-5V 1.5A Negative LDO Regulator, TO-220, 0-125°C
TPS54531DDAR
5A, 570kHz step-down converter with adjustable output voltage from 800mV to 26.04V. Features a wide input voltage range of 3.5V to 28V and a maximum output current of 5A. Operates within a temperature range of -40°C to 85°C. Includes Eco-mode for improved efficiency and is packaged in a lead-free, surface-mount 8-SO PowerPAD.
LM2596
12V fixed output, 3A step-down regulator with a 4.5V to 40V input range. This power management IC features a low component count and 90% efficiency. Packaged in a TO-263 surface mount case, it operates from -40°C to 125°C. The regulator offers a positive, single output configuration.
TPS5430
Automotive 3A DC/DC buck converter with adjustable output voltage from 1.22V to 31V. Features a 5.5V to 36V input voltage range, 500kHz fixed frequency operation, and up to 95% efficiency. This surface mount component is housed in an 8-SO PowerPAD package, operating from -40°C to 125°C. It offers a single adjustable output and is RoHS compliant.
LM2675M-12/NOPB
12V 1A Step-Down Regulator, 6.5-40V In, 94% Eff, SOIC
LM2940CT-15/NOPB
15V LDO 1A TO-220 Positive Fixed Output Regulator
About TPS63020DSJR

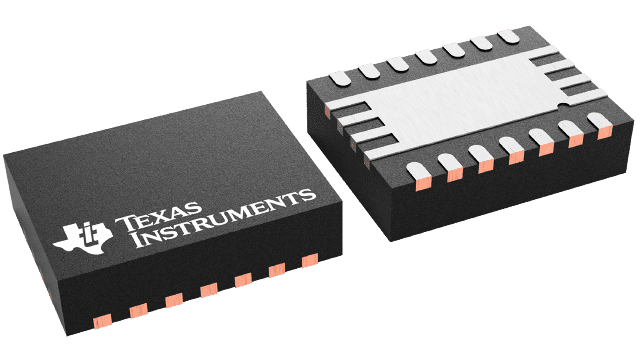

The Texas Instruments TPS63020DSJR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High efficiency single inductor buck-boost converter, featuring 96% peak efficiency and a 4A switch. This power management IC supports adjustable output voltages from 1.2V to 5.5V with a maximum output current of 3A. Operating across an input voltage range of 1.8V to 5.5V, it offers a 100% maximum duty cycle and a low quiescent current of 50µA. Packaged in a compact 3mm x 4mm x 1mm VSON surface mount package, this RoHS compliant component is ideal for space-constrained applications.. Key parameters include Efficiency: 96%, Height: 1mm, Lead Free: Lead Free, Length: 3mm, and Max Duty Cycle: 100%. TPS63020DSJR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TPS63020DSJR specifications
Click to ask a quick question:
Parameters
| Efficiency | 96% |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Duty Cycle | 100% |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 3A |
| Max Output Voltage | 5.5V |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 1.8V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.2V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package/Case | VSON |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 50uA |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Supply Current | 50uA |
| Synchronous Rectifier | Yes |
| Thickness | 900um |
| TME | —1$4.24$4.01—$3.67pcsView offer |
| Topology | Buck-Boost |
| Width | 4mm |
