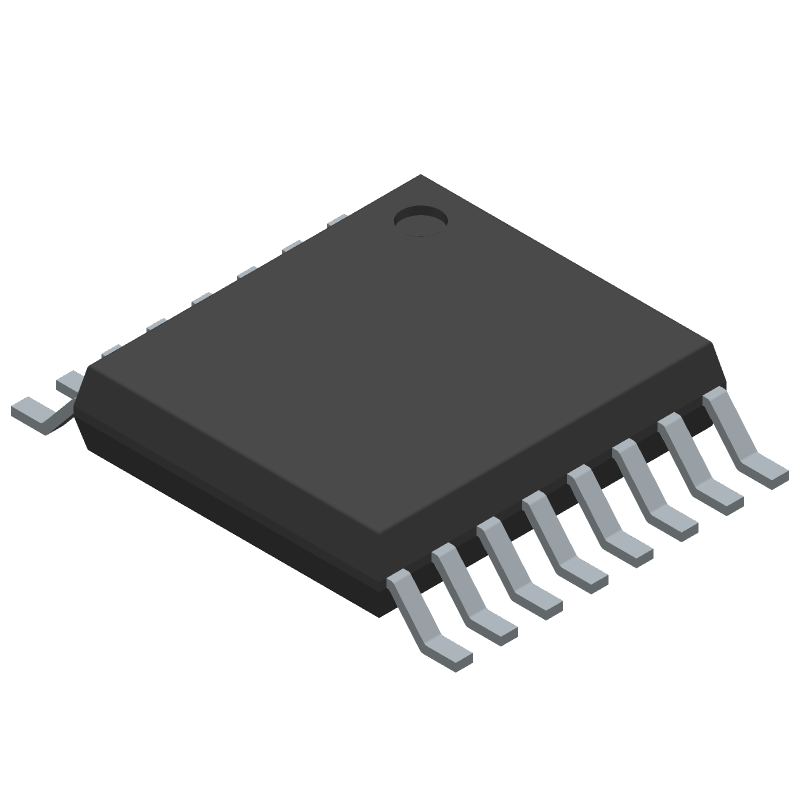

TCA9534PWR
8-bit I<sup>2</sup>C low-power I/O expander featuring 8 push-pull outputs and interrupt capability. Operates with a supply voltage range of 1.65V to 5.5V and supports I<sup>2</sup>C frequencies up to 400kHz. Packaged in a 16-TSSOP, this surface-mount component offers 8 configurable I/O channels. Designed for a wide operating temperature range of -40°C to 85°C, it is lead-free and RoHS compliant.
Similar Components
CD4049
6-channel CMOS buffer/inverter IC, operating from 3V to 18V, features 6 independent inverting logic gates. This surface-mount device in a 16-SOIC package offers a high level output current of -5.2mA and a low level output current of 4.3mA. With a propagation delay of 50ns and a quiescent current of 4uA, it supports a wide operating temperature range of -55°C to 125°C. The component is lead-free, RoHS compliant, and utilizes gold contact plating.
CD4511
The CD4511BF3A is a CMOS decoder/latch IC with 4 inputs and 7 outputs. It operates over a supply voltage range of 3V to 18V and can withstand temperatures between -55°C and 125°C. The device is packaged in a DIP-16 configuration and features a non-inverting polarity. The IC has a propagation delay of 1320ns and a turn-on delay time of 1320ns, with a quiescent current of 100uA. The CD4511BF3A is not radiation hardened and is not RoHS compliant.
OPA2350UA
Dual, single-supply, rail-to-rail operational amplifier featuring 38MHz bandwidth and 22V/µs slew rate. This general-purpose amplifier offers low input bias current of 10pA and input voltage noise density of 7nV/sqrt Hz. Operating from 2.7V to 5.5V, it provides 40mA output current per channel and boasts a 122dB voltage gain. The 8-SOIC package is RoHS compliant and suitable for operation between -40°C and 85°C.
LM324N
Four-channel operational amplifier featuring a 1.2MHz gain bandwidth product and 100dB voltage gain. This bipolar IC offers a 40mA output current per channel and operates with single or dual supplies from 3V to 32V. Key specifications include an 80dB common mode rejection ratio and a 1.5mA operating supply current. Packaged in a 14-PDIP, this component is suitable for operation between 0°C and 70°C.
CD4051BM96
16-pin SOIC analog multiplexer, featuring an 8:1 channel configuration and logic-level conversion. Operates across a wide supply voltage range from 3V to 20V, with a maximum input voltage of 20.5V and a minimum of -0.5V. This component supports a broad operating temperature range of -55°C to 125°C, suitable for military applications. The device offers a single function with dual terminal positioning and a JEDEC package code of R-PDSO-G16.
LM555CN/NOPB
Timer IC, Single, 100kHz, 4.5-16V, 0-70°C, PDIP
About TCA9534PWR
The Texas Instruments TCA9534PWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 8-bit I<sup>2</sup>C low-power I/O expander featuring 8 push-pull outputs and interrupt capability. Operates with a supply voltage range of 1.65V to 5.5V and supports I<sup>2</sup>C frequencies up to 400kHz. Packaged in a 16-TSSOP, this surface-mount component offers 8 configurable I/O channels. Designed for a wide operating temperature range of -40°C to 85°C, it is lead-free and RoHS compliant.. Key parameters include Frequency: 400kHz, Height: 1.2mm, Interface: I2C, Lead Free: Lead Free, and Length: 5mm. TCA9534PWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TCA9534PWR specifications
Click to ask a quick question:
Parameters
| Frequency | 400kHz |
| Height | 1.2mm |
| Interface | I2C |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Channels | 8 |
| Number of I/Os | 8 |
| Number of Outputs | 8 |
| Output Type | PUSH-PULL |
| Package/Case | TSSOP |
| Packaging | Cut Tape |
| Quest | 209—$1.148—$0.7175—View offer |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Thickness | 1mm |
| Width | 4.4mm |
