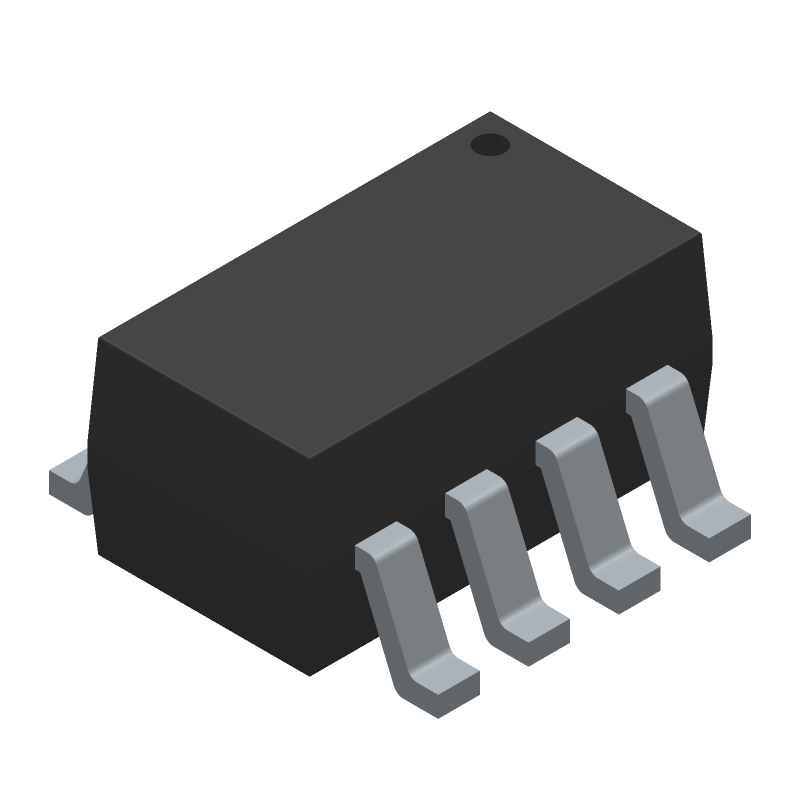

INA219AIDCNR
High-precision digital current and voltage monitor with I²C interface. Features a 1% accuracy, 3.4MHz bandwidth, and a wide operating voltage range of 3V to 5.5V, with a maximum input voltage of 26V. This single-amplifier integrated circuit is housed in a compact SOT-23-8 package, offering a 100dB common mode rejection ratio and a low input offset voltage of 100µV. Operating with a typical supply current of 1mA, it is RoHS compliant and suitable for temperatures from -40°C to 125°C.
Similar Components
INA219BIDCNT
3V-5.5V 26V Max Supervisory IC, 0.5% Acc, SOT-23-8
INA226
Current shunt and power monitor measures shunt voltage and bus supply voltage through an I2C- or SMBus-compatible interface. The device senses bus voltages from 0 V to 36 V and operates from a 2.7 V to 5.5 V supply. It provides 16-bit resolution with programmable calibration, conversion time, averaging, and alert-limit functions. The monitor supports high-side or low-side sensing, 16 programmable addresses, and operation from -40 °C to 125 °C in a 10-pin VSSOP package.
INA219
High-precision current and voltage monitoring IC with 0.5% accuracy. Features a 3V to 5.5V operating supply voltage range and a maximum input voltage of 26V. This single-amplifier device offers a 100dB Common Mode Rejection Ratio and a low input offset voltage of 40uV. Packaged in an 8-pin SOT-23-8, it operates from -40°C to 125°C and is RoHS compliant.
About INA219AIDCNR
The Texas Instruments INA219AIDCNR Sensors Transducers datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High-precision digital current and voltage monitor with I²C interface. Features a 1% accuracy, 3.4MHz bandwidth, and a wide operating voltage range of 3V to 5.5V, with a maximum input voltage of 26V. This single-amplifier integrated circuit is housed in a compact SOT-23-8 package, offering a 100dB common mode rejection ratio and a low input offset voltage of 100µV. Operating with a typical supply current of 1mA, it is RoHS compliant and suitable for temperatures from -40°C to 125°C.. Key parameters include Accuracy: 1%, Bandwidth: 3.4MHz, Common Mode Rejection Ratio: 100dB, Features: I²C, and Height: 1.3mm. INA219AIDCNR is manufactured by Texas Instruments as part of their Sensors Transducers product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Sensors Transducers
Ask AI Assistant
Ask questions about INA219AIDCNR specifications
Click to ask a quick question:
Parameters
| Accuracy | 1% |
| Bandwidth | 3.4MHz |
| Common Mode Rejection Ratio | 100dB |
| Features | I²C |
| Height | 1.3mm |
| Input Offset Voltage (Vos) | 100uV |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 26V |
| Max Operating Temperature | 125°C |
| Max Supply Current | 5mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 0V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Number of Amplifiers | 1 |
| Operating Supply Current | 1mA |
| Output Current | 10mA |
| Output Current per Channel | 10mA |
| Output Type | Digital |
| Package/Case | SOT-23-8 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 700uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | Zero-Drift |
| Supply Current | 700uA |
| Weight | 0.001411oz |
| Width | 1.75mm |
