TPA6120A2DWPR
High-fidelity stereo audio amplifier IC featuring analog input, 128 dB dynamic range, and 1.5W output power. Operates with dual supply voltages from 5V to 33V, with a maximum dual supply of 15V and maximum supply of 30V. Designed for 32-ohm load impedance, delivering 80mW maximum output power. Packaged in a 20-SO PowerPAD (HSOP) with a wide operating temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Similar Components
LF356
JFET input operational amplifier featuring a 5MHz bandwidth and 12V/µs slew rate. This single-channel amplifier offers a 3mV input offset voltage and 30pA input bias current, with a 1.5µs settling time. Designed for through-hole mounting in an 8-PDIP package, it operates from a dual supply voltage range of ±10V to ±18V, with a maximum supply voltage of ±36V. Key performance metrics include 80dB common mode rejection ratio and 80dB power supply rejection ratio.
LM2901DR
Quad differential comparator IC, featuring 4 independent comparator channels. Operates with a wide supply voltage range from 1V to 30V, with a maximum dual supply voltage of 15V. Offers a typical response time of 1.3µs and a voltage gain of 100dB. Designed for surface mounting in a SOIC package, this component boasts a maximum operating temperature of 125°C and a minimum of -40°C. Key electrical characteristics include an input bias current of 250nA and an input offset voltage of 7mV.
OPA2134UAE4
Dual Op Amp, 8MHz GBW, 35mA Out, 20V/µs SR, 86dB CMRR, 2CH, 8-SOIC
NE5534D
10MHz Low-Noise Op Amp, 15V, 1-Ch, 8-SOIC
ADS1115
16-bit delta-sigma analog-to-digital converter (ADC) featuring 4 input channels and a sampling rate of 860 samples/second. Offers a programmable gain amplifier (PGA), internal oscillator, voltage reference, and comparator. Operates from a 2V to 5.5V supply voltage with a maximum power dissipation of 500µW. Interface is I2C, and the component is housed in a 10-X2QFN package with gold contact plating. Suitable for operation between -40°C and 125°C.
DRV8833
10.8-V, 1-A dual H-bridge motor driver with current regulation 16-WQFN -40 to 85
About TPA6120A2DWPR
The Texas Instruments TPA6120A2DWPR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High-fidelity stereo audio amplifier IC featuring analog input, 128 dB dynamic range, and 1.5W output power. Operates with dual supply voltages from 5V to 33V, with a maximum dual supply of 15V and maximum supply of 30V. Designed for 32-ohm load impedance, delivering 80mW maximum output power. Packaged in a 20-SO PowerPAD (HSOP) with a wide operating temperature range of -40°C to 85°C. RoHS compliant and lead-free.. Key parameters include Dual Supply Voltage: 12V, Input Offset Voltage (Vos): 5mV, Lead Free: Lead Free, Load Impedance: 32R, and Max Dual Supply Voltage: 15V. TPA6120A2DWPR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TPA6120A2DWPR specifications
Click to ask a quick question:
Parameters
| Dual Supply Voltage | 12V |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Load Impedance | 32R |
| Max Dual Supply Voltage | 15V |
| Max Operating Temperature | 85°C |
| Max Output Power | 80mW |
| Max Power Dissipation | 2.8W |
| Max Supply Voltage | 30V |
| Min Dual Supply Voltage | 5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 10V |
| Number of Channels | 2 |
| Output Power | 1.5W |

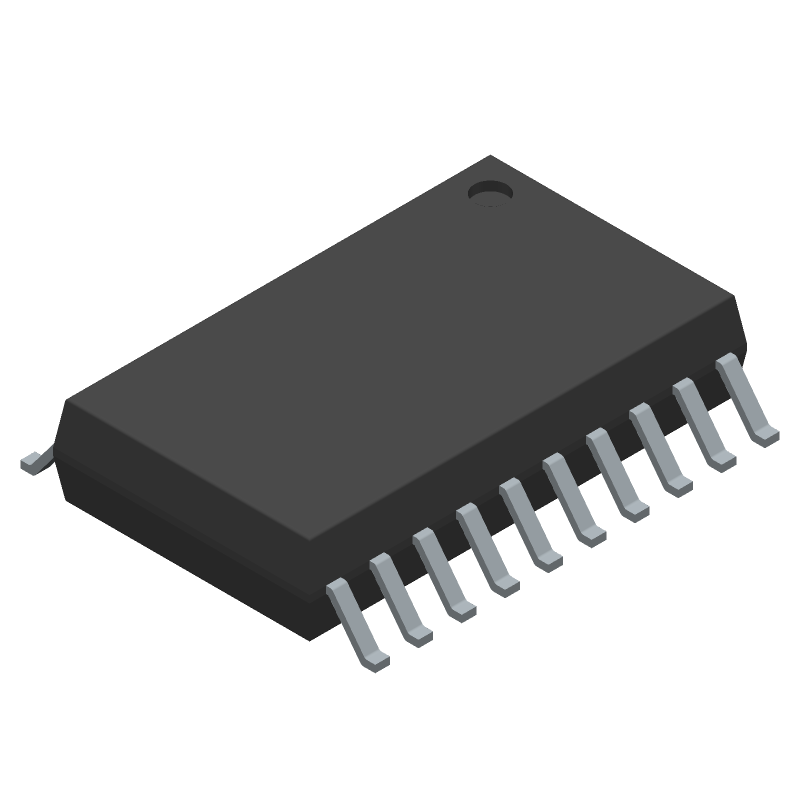

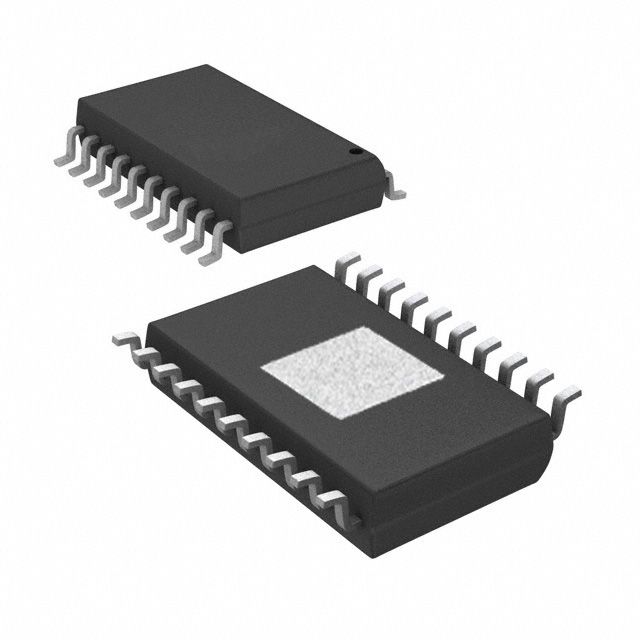

| Package/Case | HSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.8W |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Supply Current | 26mA |
| Supply Type | Single, Dual |
| Weight | 0.01787oz |
