DRV8837CDSGR

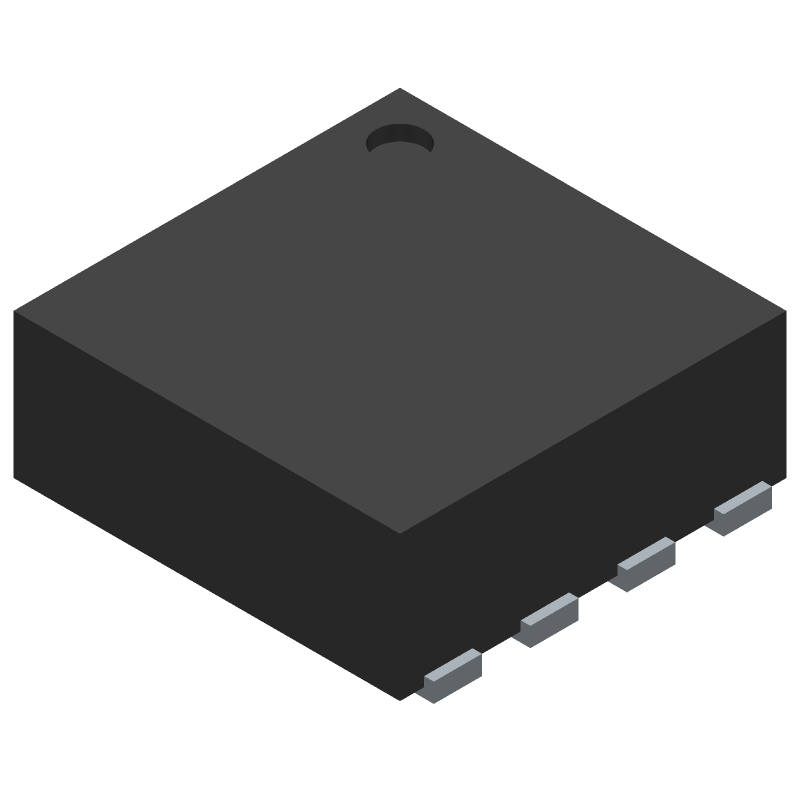

Industrial temperature grade H-bridge motor driver with a maximum output current of 1 A and a supply voltage range of 1.8 V to 7 V. Features 8 terminals in a 2mm x 2mm WSON package, supporting a single motor drive function. Operates reliably across an industrial temperature range of -40°C to 85°C.
Similar Components
DRV8871DDA
45V 3.6A H-Bridge Motor Driver, 8-SO PowerPAD
OPA2134
Precision dual operational amplifier featuring 8MHz gain bandwidth product and 20V/µs slew rate. Offers low noise and distortion with 500µV input offset voltage and 5pA input bias current. Operates with dual supply voltages from 2.5V to 36V, supporting up to 18V dual supply. Delivers 35mA output current per channel and 120dB voltage gain, with 86dB common mode rejection ratio. Packaged in an 8-SOIC (D) case, this RoHS compliant component operates from -40°C to 85°C.
CD4030
The CD4030BE is a dual XOR gate IC with 14 terminals in a 14-pin DIP package. It operates over a temperature range of -55C to 125C and has a supply voltage range of 3V to 18V. The IC has a propagation delay of 280ns and a maximum power supply current of 30uA. It is a member of the 4000/14000/40000 logic IC family and is not a Schmitt trigger device.
LM386N-1
Single-channel audio amplifier IC featuring 325mW output power into an 8Ω load. Offers a 46dB voltage gain and a 300kHz unity gain bandwidth. Operates from a single supply voltage range of 4V to 12V. Maximum power dissipation is 1.25W, with a quiescent current of 8mA. Packaged in an 8-pin PDIP (DIP-8) format.
CD4017
CMOS Hex D-Type Flip-Flop, featuring 6 bits per element, operates with positive edge clock triggering. This surface mount device offers a maximum operating frequency of 16MHz and a propagation delay of 100ns. It supports a wide supply voltage range from 3V to 18V, with a low quiescent current of 4uA. The component boasts gold contact plating and is RoHS compliant, functioning across an extended temperature range of -55°C to 125°C.
LM3915N-1/NOPB
Dot/Bar Display Driver IC, 10-Seg, 3-25V, 30mA, PDIP
About DRV8837CDSGR
The Texas Instruments DRV8837CDSGR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Industrial temperature grade H-bridge motor driver with a maximum output current of 1 A and a supply voltage range of 1.8 V to 7 V. Features 8 terminals in a 2mm x 2mm WSON package, supporting a single motor drive function. Operates reliably across an industrial temperature range of -40°C to 85°C.. Key parameters include Eccn Code: EAR99, JEDEC Package Code: S-PDSO-N8, Lead Free: Yes, Length: 2, and Max Operating Temperature: 85. DRV8837CDSGR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about DRV8837CDSGR specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| JEDEC Package Code | S-PDSO-N8 |
| Lead Free | Yes |
| Length | 2 |
| Max Operating Temperature | 85 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| REACH | Compliant |
| RoHS | Yes |
| Supply Voltage-Max (Vsup) | 7 |
| Supply Voltage-Min (Vsup) | 1.8 |
| Supply Voltage-Nom (Vsup) | 3 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| TME | 5661$0.71$0.586$0.531—pcsView offer |
| Width | 2 |
