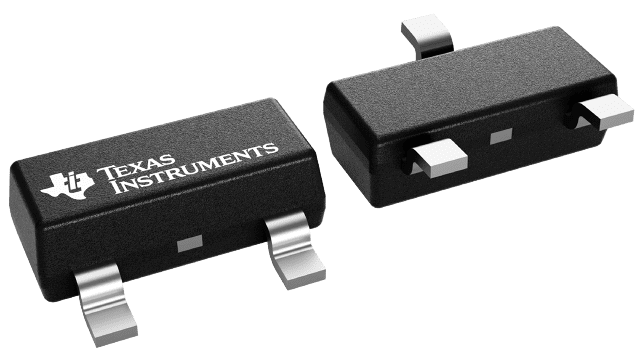

TL431ACDBZR
Adjustable precision shunt regulator 3-SOT-23 0 to 70
Similar Components
LM2675M-12/NOPB
12V 1A Step-Down Regulator, 6.5-40V In, 94% Eff, SOIC
LM2588S-ADJ/NOPB
Adjustable Flyback/Boost Regulator, 4-40V IN, 5A OUT, TO-263
TPS7A4700RGWT
Positive adjustable LDO regulator with 1A maximum output current, offering an output voltage range of 1.4V to 20.5V. Features include ±1% accuracy, low dropout voltage (0.216V typical at 0.5A), and excellent line/load regulation. Operates from a 3V to 36V input, with typical PSRR of 78 dB and low output noise of 4.67 uVrms. Packaged in a 20-pin VQFN EP (5.15x5.15mm) for surface mounting, with integrated current limit and thermal shutdown protection.
TPS5450DDAR
5A, 500kHz step-down DC/DC converter with adjustable output voltage from 1.22V to 31V. Features a wide input voltage range of 5.5V to 36V and a maximum output current of 5A. Operates efficiently up to 90% and is housed in a compact 8-pin HSOP PowerPAD package for surface mounting. This RoHS compliant component offers a broad operating temperature range of -40°C to 125°C.
TPS5430QDDARQ1
3A Buck Converter, 5.5-36V In, 31V Out, 500kHz, 95% Eff, HSOP
TPS61099
0.7Vin Synchronous Boost Converter with 800 nA Ultra-Low Quiescent Current 6-DSBGA -40 to 85
About TL431ACDBZR
The Texas Instruments TL431ACDBZR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Adjustable precision shunt regulator 3-SOT-23 0 to 70. Key parameters include Cathode Current: 600uA, Lead Free: Lead Free, Max Input Voltage: 37V, Max Operating Temperature: 125°C, and Max Output Current: 100mA. TL431ACDBZR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TL431ACDBZR specifications
Click to ask a quick question:
Parameters
| Cathode Current | 600uA |
| Lead Free | Lead Free |
| Max Input Voltage | 37V |
| Max Operating Temperature | 125°C |
| Max Output Current | 100mA |
| Max Output Voltage | 36V |
| Min Input Voltage | 2.495V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.495V |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 36V |
| Package/Case | SOT-23 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt, Adjustable |
| Reference Voltage | 36V |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 1mm |
| TME | 3,0241$0.23$0.19$0.17$0.12pcsView offer |
| Tolerance | 1% |
