OPA4134UA

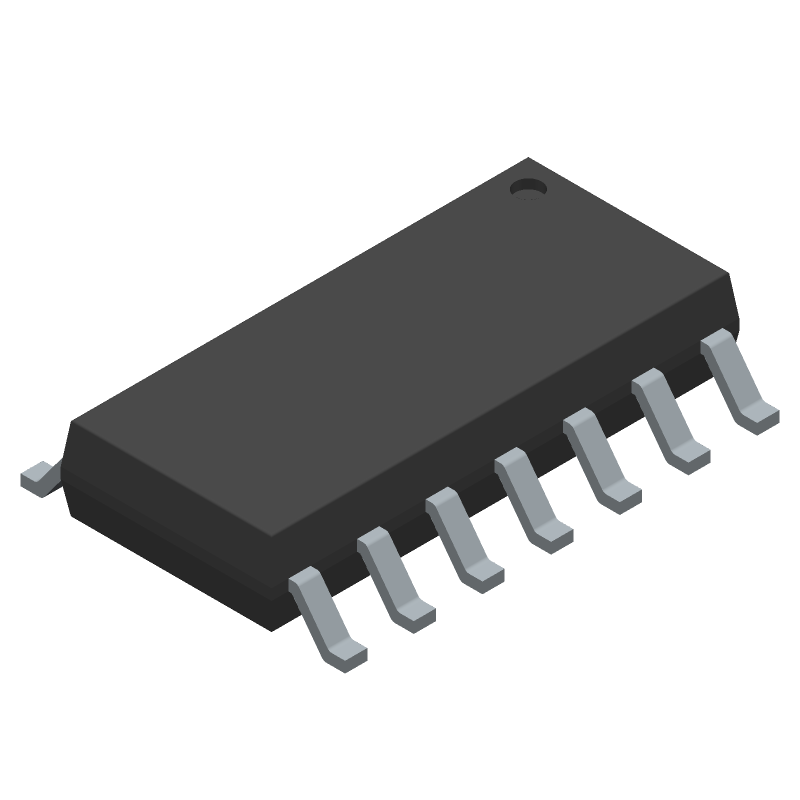

Quad operational amplifier featuring FET input technology for low bias current (5pA). Delivers 8MHz gain bandwidth product and 120dB voltage gain, with a 20V/µs slew rate. Supports dual supply operation from ±2.5V to ±18V, with a maximum operating voltage of 36V. Offers 86dB CMRR and 90dB PSRR, suitable for audio applications. Packaged in a 14-SOIC (D) with a 2kΩ load impedance capability.
Similar Components
CD40174BM
CMOS Hex D-Type Flip-Flop, 16MHz, 18V, SOIC
CD4066BE
Quad SPST Analog Switch IC, featuring 4 independent circuits for versatile signal routing. Operates with dual or single supply voltages from 1.5V to 18V, with a maximum dual supply of 9V. CMOS technology ensures low quiescent current of 20nA and a maximum supply current of 5uA. Offers a bandwidth of 40MHz and is housed in a 14-pin PDIP package for through-hole mounting. Contact plating is gold, and the component is RoHS compliant.
DRV8825
Bipolar stepper motor driver IC featuring 45V maximum supply voltage and 2.5A output current. This integrated circuit supports 1/32 microstepping for precise motor control. It operates across a temperature range of -40°C to 85°C and is housed in a 28-HTSSOP package for surface mounting. The device offers logic interface and is RoHS compliant.
NE5532
DUAL OP-AMP, 4000uV OFFSET-MAX, 10MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, DIP-8
CD4066
Quad SPST Analog Switch IC, featuring 4 independent circuits for versatile signal routing. Operates with dual or single supply voltages from 1.5V to 18V, with a maximum dual supply of 9V. CMOS technology ensures low quiescent current of 20nA and a maximum supply current of 5uA. Offers a bandwidth of 40MHz and is housed in a 14-pin PDIP package for through-hole mounting. Contact plating is gold, and the component is RoHS compliant.
NE5532DR
Dual-channel, general-purpose operational amplifier with a 10-MHz bandwidth and 9V/µs slew rate. Features 26-V output swing, 100-dB voltage gain, and 70-dB common mode rejection ratio. Operates from ±5V to ±15V dual supply voltages, with a typical supply current of 8mA. Packaged in an 8-SOIC (D) package, this lead-free, RoHS-compliant component is suitable for audio applications.
About OPA4134UA
The Texas Instruments OPA4134UA Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Quad operational amplifier featuring FET input technology for low bias current (5pA). Delivers 8MHz gain bandwidth product and 120dB voltage gain, with a 20V/µs slew rate. Supports dual supply operation from ±2.5V to ±18V, with a maximum operating voltage of 36V. Offers 86dB CMRR and 90dB PSRR, suitable for audio applications. Packaged in a 14-SOIC (D) with a 2kΩ load impedance capability.. Key parameters include Common Mode Rejection Ratio: 86dB, Dual Supply Voltage: 9V, Gain Bandwidth Product: 8MHz, Height: 1.58mm, and Input Bias Current: 5pA. OPA4134UA is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about OPA4134UA specifications
Click to ask a quick question:
Parameters
| Common Mode Rejection Ratio | 86dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 8MHz |
| Height | 1.58mm |
| Input Bias Current | 5pA |
| Input Offset Voltage (Vos) | 500uV |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Load Impedance | 2kR |
| Max Dual Supply Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Dual Supply Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 8MHz |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 4mA |
| Operating Supply Voltage | 36V |
| Output Current per Channel | 35mA |
| Package/Case | D |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 90dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | SoundPlus™ |
| Slew Rate | 20V/µs |
| Supply Current | 20mA |
| Supply Type | Dual |
| Technology | FET |
| TME | 1101$6.4$4.96$4.64$4.43pcsView offer |
| Unity Gain Bandwidth Product | 8MHz |
| Voltage Gain | 120dB |
| Weight | 0.004564oz |
| Width | 3.91mm |
