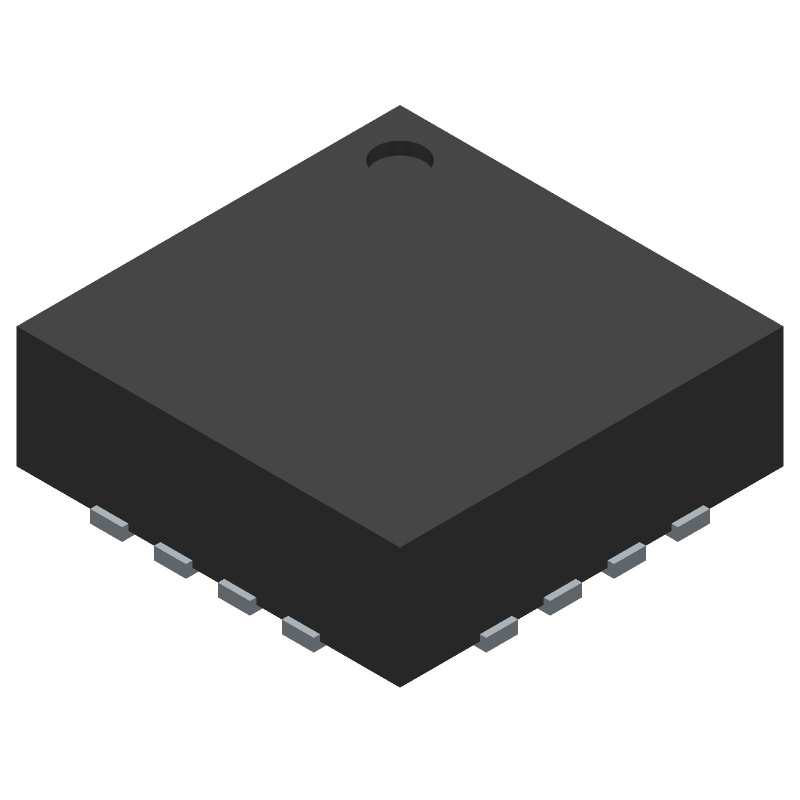

BQ24074RGTR
Linear Battery Charger Li-Ion/Li-Pol 1500mA 4.2V 16-Pin VQFN EP T/R
Similar Components
LM2587S-ADJ/NOPB
Adjustable Flyback Boost Regulator, 4-40V In, 5A Out, 115kHz, TO-263
LM2577
Adjustable DC-DC converter with a 3A maximum output current. Features a wide input voltage range from 3.5V to 40V and an adjustable output voltage from 1.23V up to 60V. This boost converter offers up to 80% efficiency and operates within a temperature range of -40°C to 125°C. Packaged in a 5-pin TO-220 through-hole mount, it supports a single positive output.
TPS63020DSJT
Buck-Boost Converter, 3A, 5.5V, 96% Eff, 1.8-5.5V In, VSON
LM2677S-ADJ/NOPB
5A Step-Down DC-DC Controller, Adj Output, 40V In, TO-263
LM2596S-12/NOPB
12V 3A Step-Down Regulator, 4.5-40V In, TO-263
LM2576
Adjustable DC-DC converter, step-down, single output, 3A max output current. Features a wide input voltage range of 4V to 40V and an adjustable output voltage from 1.23V to 37V. Operates at a 52kHz switching frequency with 77% efficiency. Packaged in a TO-263-5 surface mount case, this component is RoHS compliant and suitable for operation between -40°C and 125°C.
About BQ24074RGTR
The Texas Instruments BQ24074RGTR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Linear Battery Charger Li-Ion/Li-Pol 1500mA 4.2V 16-Pin VQFN EP T/R. Key parameters include Battery Chemistry: LITHIUM-ION, Battery Pack Voltage: 4.2V, Contact Plating: Gold, Fault Protection: Over Voltage, Over Temperature, Short Circuit, Reverse Current, and Interface: USB. BQ24074RGTR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about BQ24074RGTR specifications
Click to ask a quick question:
Parameters
| Battery Chemistry | LITHIUM-ION |
| Battery Pack Voltage | 4.2V |
| Contact Plating | Gold |
| Fault Protection | Over Voltage, Over Temperature, Short Circuit, Reverse Current |
| Interface | USB |
| Lead Free | Lead Free |
| Max Charge Current | 1.5A |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 10.2V |
| Min Input Voltage | 4.3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.35V |
| Number of Cells | 1 |
| Output Current | 1.5A |
| Output Voltage | 4.2V |
| Package/Case | VQFN EP |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Weight | 0.000808oz |
