TPA2012D2RTJR

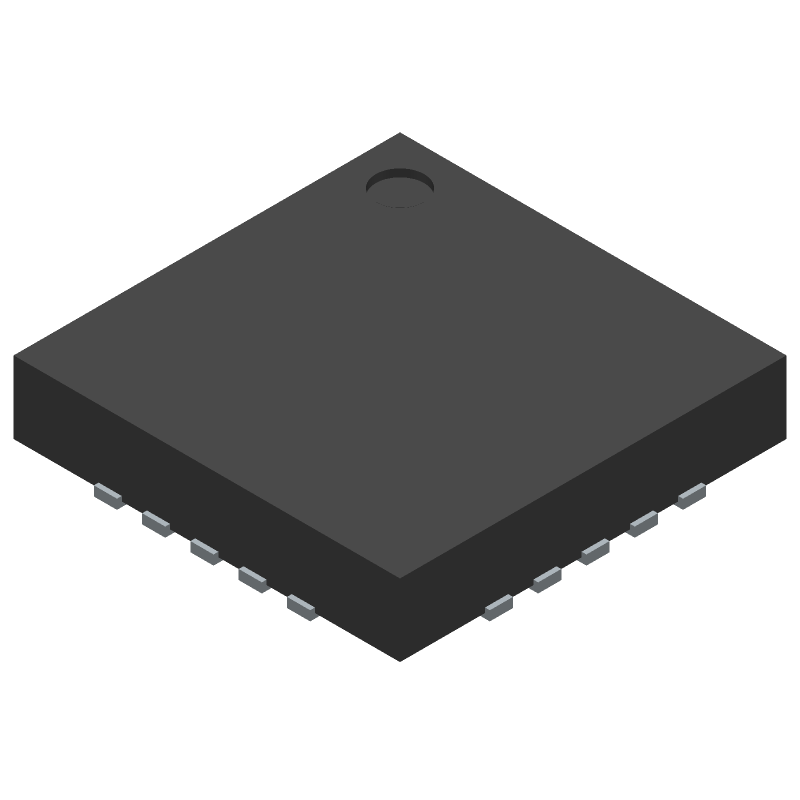

2.1-W stereo Class-D audio amplifier featuring 2 channels and a 4-ohm load impedance. Delivers 2.1W output power with a voltage gain of 24dB. Operates from a 2.5V to 5.5V single supply voltage, drawing a maximum of 9mA supply current. Housed in a 4mm x 4mm QFN package with a height of 800µm, this RoHS compliant component functions across a -40°C to 85°C temperature range.
Similar Components
CD4081BE
4-ch CMOS AND Gate IC, 3-18V, 14-PDIP, Military
ISO7741FDWR
Quad-channel, reinforced digital isolator featuring robust EMC performance. This interface circuit operates across a wide temperature range of -55°C to 125°C, with a nominal supply voltage of 2.5V, supporting a range of 2.25V to 5.5V. The device is housed in a 16-terminal SOIC package (JEDEC R-PDSO-G16) with dual terminal positions, measuring 7.5mm in width and 10.3mm in length.
CD4069
CMOS Hex Inverter 14-CDIP -55 to 125
DRV8833
10.8-V, 1-A dual H-bridge motor driver with current regulation 16-WQFN -40 to 85
CD4027BE
JK Flip-Flop IC, 2-Element, 24MHz, 18V, PDIP, CMOS
CD40174BM
CMOS Hex D-Type Flip-Flop, 16MHz, 18V, SOIC
About TPA2012D2RTJR
The Texas Instruments TPA2012D2RTJR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 2.1-W stereo Class-D audio amplifier featuring 2 channels and a 4-ohm load impedance. Delivers 2.1W output power with a voltage gain of 24dB. Operates from a 2.5V to 5.5V single supply voltage, drawing a maximum of 9mA supply current. Housed in a 4mm x 4mm QFN package with a height of 800µm, this RoHS compliant component functions across a -40°C to 85°C temperature range.. Key parameters include Height: 800um, Lead Free: Lead Free, Length: 4mm, Load Impedance: 4R, and Max Operating Temperature: 85°C. TPA2012D2RTJR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TPA2012D2RTJR specifications
Click to ask a quick question:
Parameters
| Height | 800um |
| Lead Free | Lead Free |
| Length | 4mm |
| Load Impedance | 4R |
| Max Operating Temperature | 85°C |
| Max Output Power | 2.1W |
| Max Power Dissipation | 5.2W |
| Max Supply Current | 9mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Number of Channels | 2 |
| Output Power | 2.1W |
| Package/Case | QFN |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 5.2W |
| Power Supply Rejection Ratio (PSRR) | -75dB |
| Quiescent Current | 6mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Supply Current | 9mA |
| Supply Type | Single |
| Thickness | 730um |
| Voltage Gain | 24dB |
| Weight | 0.001344oz |
| Width | 4mm |
