EP4CE6E22C8N

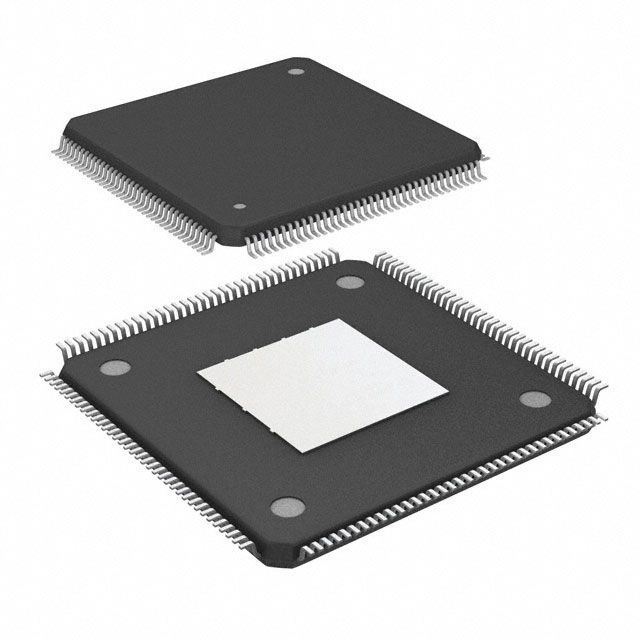

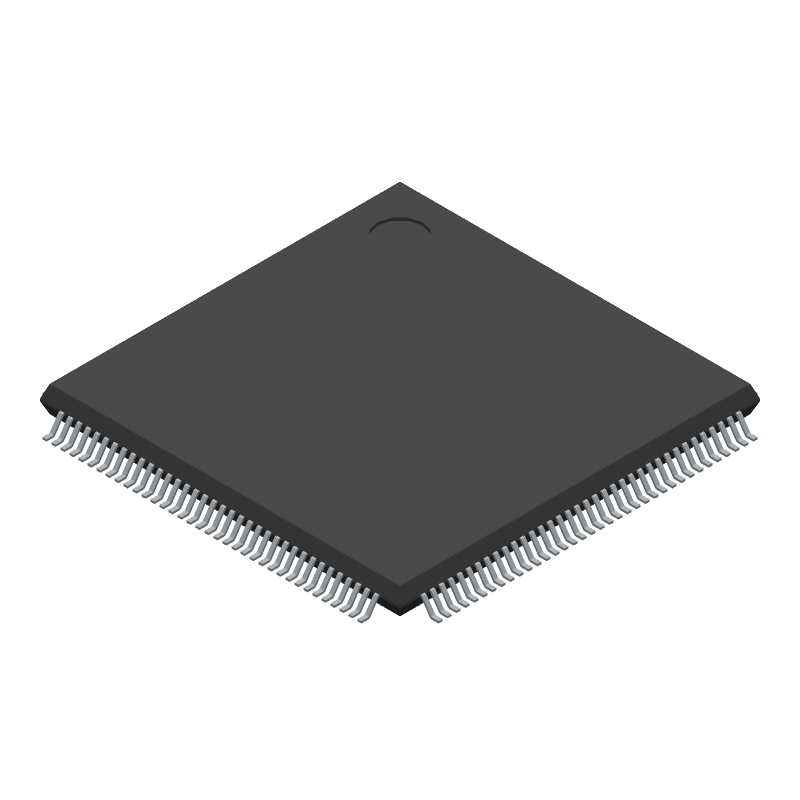

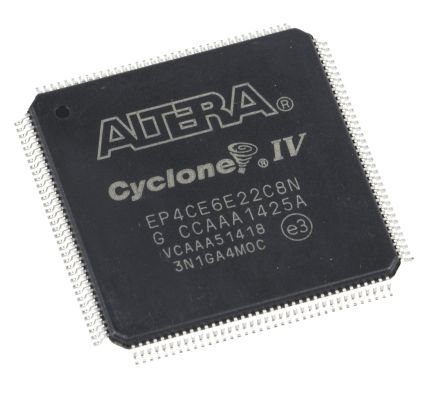

Field Programmable Gate Array (FPGA) with 6272 logic elements/cells and 392 logic blocks (LABs). Features 270Kb memory size and 276480 bits of RAM. Operates at a maximum frequency of 200MHz with a supply voltage range of 1.15V to 1.25V. Packaged in a 144-pin PQFP (EQFP-144) for surface mounting, with dimensions of 20mm x 20mm x 1.6mm. RoHS compliant and suitable for operation between 0°C and 85°C.
Similar Components
X540T2
Ethernet Converged Network Adapter PCI Interface
ARD-DI08A
DIGITAL REMOTE I/O; Current Rating:13mA; Accessory Type:Digital Remote Input / Output Device Net; External Depth:38.5mm; External Width:105mm; For Use With:Controllers; Length:52mm; No. of Digital Inputs:8; Voltage Rating:24VDC
03420848HXL
Fuse Holder Panel Mount
MCP2200-I/SO
USB 2.0 to UART Converter IC, 12Mbps, 3.3V/5V, SOIC
CD4538
Dual precision monostable multivibrator IC, featuring 100ns propagation delay and 600ns turn-on delay. Operates from 3V to 15V supply voltage with a quiescent current of 20uA. Offers independent circuits with 4.2mA high and low level output current. Packaged in a 16-pin SOIC for surface mounting, this CMOS component is RoHS compliant and operates across a -55°C to 125°C temperature range.
MPU-9250
The MPU-9250 is a specialized IC with a quad terminal position and industrial temperature grade. It operates within a supply voltage range of 2.4 to 3.6 volts and can withstand temperatures up to 85°C. The device has 24 terminals and is packaged in an HQCCN package type.
About EP4CE6E22C8N
The Intel EP4CE6E22C8N Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Field Programmable Gate Array (FPGA) with 6272 logic elements/cells and 392 logic blocks (LABs). Features 270Kb memory size and 276480 bits of RAM. Operates at a maximum frequency of 200MHz with a supply voltage range of 1.15V to 1.25V. Packaged in a 144-pin PQFP (EQFP-144) for surface mounting, with dimensions of 20mm x 20mm x 1.6mm. RoHS compliant and suitable for operation between 0°C and 85°C.. Key parameters include Height: 1.6mm, Length: 20mm, Max Frequency: 200MHz, Max Operating Temperature: 85°C, and Max Supply Voltage: 1.25V. EP4CE6E22C8N is manufactured by Intel as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Intel
- Category
- Semiconductors
Ask AI Assistant
Ask questions about EP4CE6E22C8N specifications
Click to ask a quick question:
Parameters
| Height | 1.6mm |
| Length | 20mm |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.25V |
| Memory Size | 270Kb |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.15V |
| Mount | Surface Mount |
| Number of I/Os | 91 |
| Number of Logic Blocks (LABs) | 392 |
| Number of Logic Elements/Cells | 6272 |
| Number of Macrocells | 6272 |
| Operating Supply Voltage | 1.2V |
| Package/Case | QFP |
| Package Quantity | 60 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 276480b |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | Cyclone IV E |
| Speed Grade | 8 |
| Width | 20mm |
