EP4CE15E22C8N

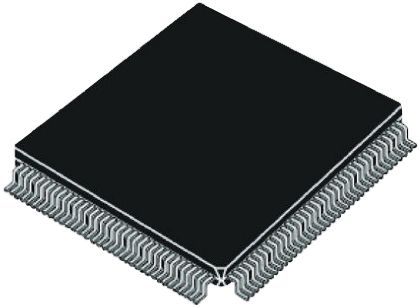

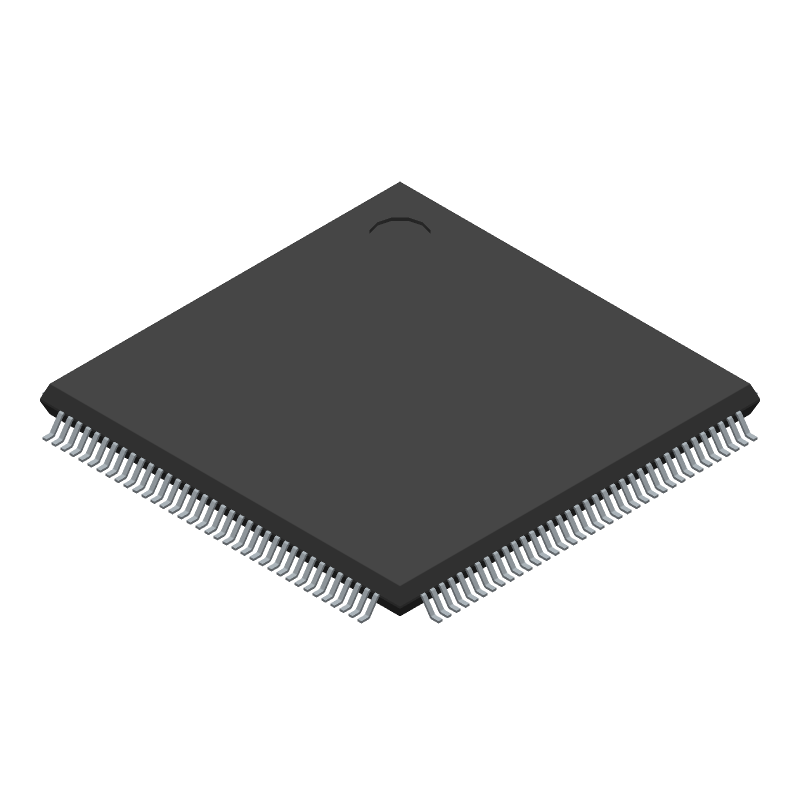

Field Programmable Gate Array (FPGA) with 15,408 logic elements/cells and 963 LABs. Features 504Kb memory, 516,096 bits RAM, and 81 I/Os. Operates at 1.2V with a maximum frequency of 200MHz. Packaged in a 144-pin EQFP, surface mountable, with dimensions of 20mm x 20mm x 1.6mm. Offers an operating temperature range of 0°C to 85°C.
Similar Components
X540T2
Ethernet Converged Network Adapter PCI Interface
80812500000
The TE5 808 fuse is a 450V, 2.5A radial through hole fuse with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It is available in a radial package with a depth, height, and width of 4.65mm, 4.65mm, and 8.9mm, respectively. The fuse is RoHS compliant and has a DC rated voltage of 450V and an AC voltage rating of 250V. It is packaged in an ammo pack with 1000 units per package and is approved by cULus.
DTC114EET1G
NPN digital bipolar transistor in SOT-416 package, featuring a 50V collector-emitter breakdown voltage and 100mA continuous collector current. Offers a maximum power dissipation of 200mW and a low collector-emitter saturation voltage of 250mV. Operates across a temperature range of -55°C to 150°C, with a minimum hFE of 35. This RoHS and Halogen Free component is supplied on tape and reel.
SI2301CDS-T1-GE3
P-channel MOSFET, TO-236 package, designed for general-purpose small signal applications. Features a continuous drain current of 2.3A and a drain-source voltage of -20V. Offers a low drain-source on-resistance of 112mR at a gate-source voltage of -4.5V. Operates within a temperature range of -55°C to 150°C with a maximum power dissipation of 1.6W. This surface-mount component is supplied in tape and reel packaging and is RoHS compliant.
MCP6001T-I/LT
Single-channel, general-purpose operational amplifier featuring a 1MHz bandwidth and 0.6V/µs slew rate. This CMOS device offers a 4.5mV maximum input offset voltage and 1pA input bias current. Operating from 1.8V to 6V supply voltages, it provides 23mA output current and a 112dB voltage gain. Packaged in a 5-pin SC-70 surface-mount plastic case, this RoHS-compliant component is supplied on tape and reel.
A3967SLB
Stepper Motor Controller, 0.85A, PDSO24, SOIC-24
About EP4CE15E22C8N
The Intel EP4CE15E22C8N Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Field Programmable Gate Array (FPGA) with 15,408 logic elements/cells and 963 LABs. Features 504Kb memory, 516,096 bits RAM, and 81 I/Os. Operates at 1.2V with a maximum frequency of 200MHz. Packaged in a 144-pin EQFP, surface mountable, with dimensions of 20mm x 20mm x 1.6mm. Offers an operating temperature range of 0°C to 85°C.. Key parameters include Height: 1.6mm, Length: 20mm, Max Frequency: 200MHz, Max Operating Temperature: 85°C, and Max Supply Voltage: 1.24V. EP4CE15E22C8N is manufactured by Intel as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Intel
- Category
- Semiconductors
Ask AI Assistant
Ask questions about EP4CE15E22C8N specifications
Click to ask a quick question:
Parameters
| Height | 1.6mm |
| Length | 20mm |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.24V |
| Memory Size | 504Kb |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.16V |
| Mount | Surface Mount |
| Number of I/Os | 81 |
| Number of Logic Blocks (LABs) | 963 |
| Number of Logic Elements/Cells | 15408 |
| Number of Macrocells | 15408 |
| Number of Registers | 15408 |
| Operating Supply Voltage | 1.2V |
| Package/Case | QFP |
| Package Quantity | 120 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 516096b |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | Cyclone® IV E |
| Speed Grade | 8 |
| Weight | 0.193407oz |
| Width | 20mm |
