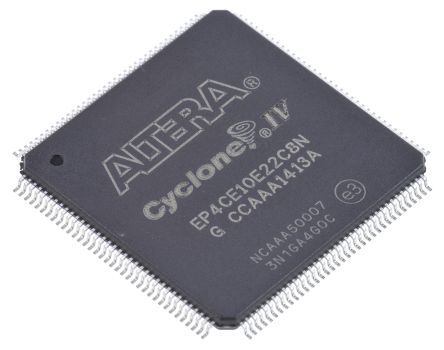

EP4CE10E22C8N
Field Programmable Gate Array (FPGA) with 10320 logic elements/cells and 645 logic array blocks (LABs). Features 414Kb memory size, 91 I/Os, and operates at a maximum frequency of 200MHz. This surface mount device utilizes 60nm technology and has an operating supply voltage of 1.2V, with a range of 1.15V to 1.25V. Packaged in a 144-pin EQFP (TQFP) measuring 20mm x 20mm x 1.6mm, it supports a temperature range of 0°C to 85°C.
Similar Components
X540T2
Ethernet Converged Network Adapter PCI Interface
SMBJ20CA
Surface mount bidirectional TVS diode offering 600W peak pulse power dissipation. Features a 20V DC rated voltage, 22.2V minimum breakdown voltage, and 32.4V clamping voltage. Designed for surge suppression with a 18.6A peak pulse current capability and 1uA leakage current. Packaged in a DO-214AA surface mount case, operating from -65°C to 150°C.
T30100-1CR
This 300V fuse features a current rating of 100A and is designed for chassis mount applications with a screw termination. The fuse is made from thermoplastic and has a flammability rating of UL94 V-0. It is approved for use in UL and CSA applications and is available in a bulk packaging configuration.
FNA-2/10
The Eaton FNA-2/10 fuse is a 200mA, 250V AC rated component with a clip termination style. It measures 10.31 X 46.81mm in size and weighs 0.192oz. The fuse is packaged in bulk quantities of 10 units. It meets UL and CSA approval standards and is CE compliant. The Eaton FNA series fuse is designed for general use in electrical applications.
SMAJ6.0CA
Bi-directional TVS diode for circuit protection, featuring a 60V reverse stand-off voltage and 400W peak pulse power dissipation. This single-element component offers a maximum clamping voltage of 96.8V and a maximum peak pulse current of 4.13A. Encased in a surface-mount SMA (DO-214AC) plastic package with J-lead configuration, it operates across a temperature range of -55°C to 150°C.
0LEC00CCX
This 600V 30A free hanging fuse features a copper contact material and a 0.394 Dia x 1.496 L (10mm x 38mm) size. It is illuminated and available in bulk packaging. The fuse is designed for general use and meets unspecified standards.
About EP4CE10E22C8N
The Intel EP4CE10E22C8N Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Field Programmable Gate Array (FPGA) with 10320 logic elements/cells and 645 logic array blocks (LABs). Features 414Kb memory size, 91 I/Os, and operates at a maximum frequency of 200MHz. This surface mount device utilizes 60nm technology and has an operating supply voltage of 1.2V, with a range of 1.15V to 1.25V. Packaged in a 144-pin EQFP (TQFP) measuring 20mm x 20mm x 1.6mm, it supports a temperature range of 0°C to 85°C.. Key parameters include Height: 1.6mm, Length: 20mm, Max Frequency: 200MHz, Max Operating Temperature: 85°C, and Max Supply Voltage: 1.25V. EP4CE10E22C8N is manufactured by Intel as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Intel
- Category
- Semiconductors
Ask AI Assistant
Ask questions about EP4CE10E22C8N specifications
Click to ask a quick question:
Parameters
| Height | 1.6mm |
| Length | 20mm |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.25V |
| Memory Size | 414Kb |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.15V |
| Mount | Surface Mount |
| Number of I/Os | 91 |
| Number of Logic Blocks (LABs) | 645 |
| Number of Logic Elements/Cells | 10320 |
| Number of Macrocells | 10320 |
| Number of Registers | 10320 |
| Operating Supply Voltage | 1.2V |
| Package/Case | TQFP |
| Package Quantity | 120 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 423936b |
| Reach SVHC Compliant | Unknown |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | Cyclone® IV E |
| Speed Grade | 8 |
| Termination | SMD/SMT |
| Width | 20mm |
