TCA9548APWR

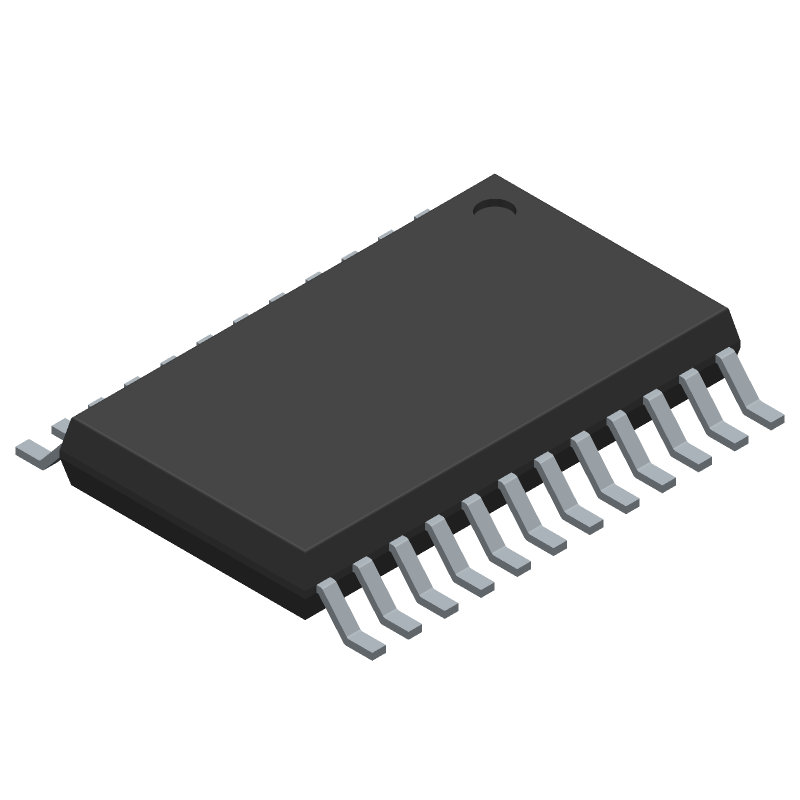

8-channel I2C bus switch, featuring a single independent circuit and surface mount capability. Operates within a 1.65V to 5.5V supply voltage range, with a maximum supply current of 80µA. This component supports a temperature range from -40°C to 85°C and is packaged in a 24-pin TSSOP on tape and reel. RoHS compliant and lead-free.
Similar Components
TLC5916
The TLC5916 is a constant-current LED sink driver designed to work alone or be cascaded. It contains an 8-bit shift register and data latches that convert serial input data into parallel output format. The device features eight regulated-current ports that provide uniform and constant current for driving LEDs with a wide range of forward voltage variations. It includes an external resistor to set the output current from 5 mA to 120 mA and provides excellent output current accuracy.
SN65HVD3082
Half-duplex RS-485 transceiver with a 200Kbps data rate. Features a single driver and receiver, operating from a 4.5V to 5.5V supply voltage with a typical 5V operating voltage and 900uA supply current. Encased in an 8-PDIP package, this lead-free component operates within a temperature range of -40°C to 85°C.
CD4049
6-channel CMOS buffer/inverter IC, operating from 3V to 18V, features 6 independent inverting logic gates. This surface-mount device in a 16-SOIC package offers a high level output current of -5.2mA and a low level output current of 4.3mA. With a propagation delay of 50ns and a quiescent current of 4uA, it supports a wide operating temperature range of -55°C to 125°C. The component is lead-free, RoHS compliant, and utilizes gold contact plating.
CD4011
The CD40117BPWE4 is an 8-bit termination IC from Texas Instruments, featuring a TSSOP-14 package and operating within a temperature range of -55°C to 125°C. This IC is designed to be RoHS compliant and is suitable for use with an operating supply voltage of 18V. It is available in quantities of 1080, packaged in rail/Tube packaging. The CD40117BPWE4 is a member of the 4000B series.
OPA1642AIDR
2-Channel Stereo Class-AB Audio Amplifier IC with Rail-to-Rail output. Features a typical Gain Bandwidth Product of 11 MHz and a typical PSRR of 137.07 dB. Housed in an 8-pin SOIC (Small Outline IC) package with gull-wing leads, designed for surface mounting. Operating temperature range from -40 °C to 85 °C.
OP07CDR
Single operational amplifier featuring a low input offset voltage of 150µV and a low offset voltage of 0.25mV. This general-purpose amplifier offers a 600kHz bandwidth and a gain bandwidth product of 600kHz. It operates with a dual supply voltage range of 3V to 18V, providing a typical supply current of 5mA and an output current per channel of 10mA. The amplifier boasts a high common mode rejection ratio of 100dB and a slew rate of 0.3V/µs. Packaged in an 8-SOIC (D) case, this RoHS compliant component is suitable for operation between 0°C and 70°C.
About TCA9548APWR
The Texas Instruments TCA9548APWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 8-channel I2C bus switch, featuring a single independent circuit and surface mount capability. Operates within a 1.65V to 5.5V supply voltage range, with a maximum supply current of 80µA. This component supports a temperature range from -40°C to 85°C and is packaged in a 24-pin TSSOP on tape and reel. RoHS compliant and lead-free.. Key parameters include Independent Circuits: 1, Lead Free: Lead Free, Max Operating Temperature: 85°C, Max Supply Current: 80uA, and Max Supply Voltage: 5.5V. TCA9548APWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TCA9548APWR specifications
Click to ask a quick question:
Parameters
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Current | 80uA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Package/Case | TSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | TCA |
| Supply Type | Single |
