DRV8825PW
Bipolar stepper motor driver IC featuring 45V maximum supply voltage and 2.5A output current. This integrated circuit supports 1/32 microstepping for precise motor control. It operates across a temperature range of -40°C to 85°C and is housed in a 28-HTSSOP package for surface mounting. The device offers logic interface and is RoHS compliant.
Similar Components
LMV321IDBVR
Single, general-purpose operational amplifier featuring rail-to-rail output. This BICMOS amplifier offers a 1MHz gain bandwidth product and a 1V/µs slew rate, suitable for low-voltage applications from 2.7V to 5.5V. With a 100dB voltage gain and 160mA output current, it operates across a -40°C to 125°C temperature range. The SOT-23-5 surface-mount package ensures compact integration.
LM358D
Dual operational amplifier featuring a 700kHz bandwidth and 100dB voltage gain. This general-purpose op-amp offers a 0.3V/µs slew rate and operates with a wide supply voltage range from 3V to 32V. Designed for surface mounting, it comes in an 8-SOIC package with a 65dB common mode rejection ratio. The component boasts a 250nA input bias current and 7mV input offset voltage, with a typical operating supply current of 1mA.
CD4066BE
Quad SPST Analog Switch IC, featuring 4 independent circuits for versatile signal routing. Operates with dual or single supply voltages from 1.5V to 18V, with a maximum dual supply of 9V. CMOS technology ensures low quiescent current of 20nA and a maximum supply current of 5uA. Offers a bandwidth of 40MHz and is housed in a 14-pin PDIP package for through-hole mounting. Contact plating is gold, and the component is RoHS compliant.
CD4026BE
CMOS Decade Counter/Divider, 16MHz, 3-18V, PDIP
CD4027
Dual JK-type master-slave flip-flop IC, positive edge triggered, featuring two independent elements. Operates with a 3V to 18V supply voltage, offering a maximum frequency of 24MHz. This CMOS logic component provides 4.2mA high-level and 4.2mA low-level output current, with a typical quiescent current of 4uA. Packaged in a 16-pin PDIP with gold contact plating, it supports through-hole mounting and is RoHS compliant.
CD4066
Quad SPST Analog Switch IC, featuring 4 independent circuits for versatile signal routing. Operates with dual or single supply voltages from 1.5V to 18V, with a maximum dual supply of 9V. CMOS technology ensures low quiescent current of 20nA and a maximum supply current of 5uA. Offers a bandwidth of 40MHz and is housed in a 14-pin PDIP package for through-hole mounting. Contact plating is gold, and the component is RoHS compliant.
About DRV8825PW

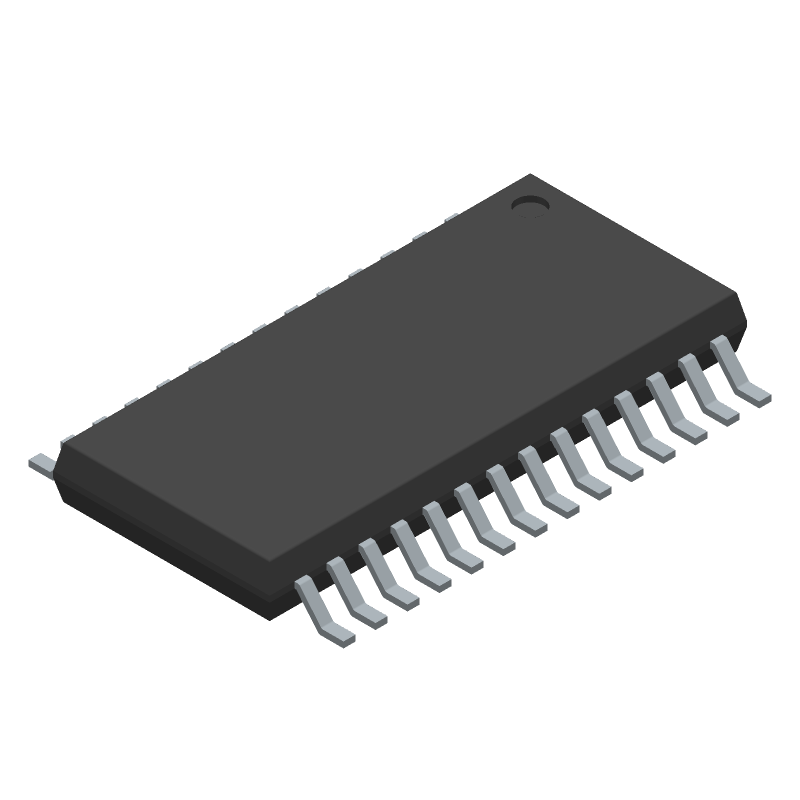

The Texas Instruments DRV8825PW Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Bipolar stepper motor driver IC featuring 45V maximum supply voltage and 2.5A output current. This integrated circuit supports 1/32 microstepping for precise motor control. It operates across a temperature range of -40°C to 85°C and is housed in a 28-HTSSOP package for surface mounting. The device offers logic interface and is RoHS compliant.. Key parameters include Height: 1.2mm, Interface: Logic, Lead Free: Lead Free, Length: 9.7mm, and Max Operating Temperature: 85°C. DRV8825PW is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about DRV8825PW specifications
Click to ask a quick question:
Parameters
| Height | 1.2mm |
| Interface | Logic |
| Lead Free | Lead Free |
| Length | 9.7mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 45V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 8V |
| Motor Type | Stepper |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Outputs | 4 |
| Output Current | 2.5A |
| Output Voltage | 24V |
| Package/Case | HTSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Supply Current | 2.5A |
| Thickness | 1mm |
| Type | Integrated Circuit (IC) |
| Width | 4.4mm |
