TMS320F28027PTT

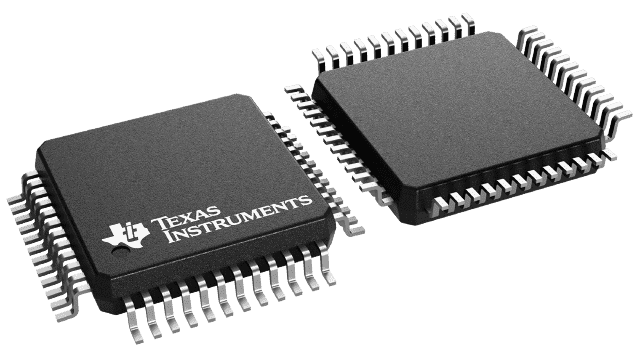

32-bit RISC microcontroller featuring a 60 MHz core clock speed and 64 KB of FLASH memory. This surface-mount device, housed in a 48-LQFP package, offers 13 analog-to-digital converter channels and 8 PWM channels. Integrated peripherals include I2C, SPI, UART, USART, SCI interfaces, and multiple timers/counters. Operating voltage ranges from 2.97V to 3.63V, with an operating temperature range of -40°C to 105°C.
Similar Components
MSP430FR5969IRGZT
16-bit RISC microcontroller featuring 64KB of Ferroelectric RAM (FRAM) and 2KB of SRAM. Operates at a maximum clock frequency of 24 MHz, with a typical speed of 16 MHz. Includes an integrated 12-bit Analog-to-Digital Converter (ADC), comparator, and DMA controller. Supports UART, SPI, and I2C communication interfaces. Packaged in a 48-VQFN with a temperature grade of INDUSTRIAL (-40°C to 85°C).
MSP430F5529IPN
16-bit microcontroller operating at 25MHz, featuring 128KB Flash and 8KB RAM. This MCU offers a 12-bit ADC with 16 channels, a comparator, and DMA for efficient data transfer. Integrated peripherals include UART, SPI, I2C, and USB, alongside a hardware multiplier. Packaged in an 80-pin LQFP, it supports a wide operating temperature range of -40°C to 85°C and a supply voltage from 1.8V to 3.6V.
MSP430G2553IN20
16-bit RISC microcontroller operating at up to 16 MHz. Features 16KB of FLASH program memory and 512 bytes of SRAM. Includes a 10-bit Analog-to-Digital Converter (ADC), comparator, and multiple communication interfaces: UART, SPI, and I2C. Offers 16 I/O lines and a timer with PWM capabilities. Supplied in a 20-pin PDIP package, rated for industrial temperature ranges of -40°C to 85°C.
About TMS320F28027PTT
The Texas Instruments TMS320F28027PTT Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 32-bit RISC microcontroller featuring a 60 MHz core clock speed and 64 KB of FLASH memory. This surface-mount device, housed in a 48-LQFP package, offers 13 analog-to-digital converter channels and 8 PWM channels. Integrated peripherals include I2C, SPI, UART, USART, SCI interfaces, and multiple timers/counters. Operating voltage ranges from 2.97V to 3.63V, with an operating temperature range of -40°C to 105°C.. Key parameters include Core Architecture: RISC, Data Bus Width: 32b, Frequency: 60MHz, Height: 1.45mm, and Interface: I2C, SPI, UART, USART, SCI. TMS320F28027PTT is manufactured by Texas Instruments as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about TMS320F28027PTT specifications
Click to ask a quick question:
Parameters
| Core Architecture | RISC |
| Data Bus Width | 32b |
| Frequency | 60MHz |
| Height | 1.45mm |
| Interface | I2C, SPI, UART, USART, SCI |
| Lead Free | Lead Free |
| Length | 7.2mm |
| Max Frequency | 60MHz |
| Max Operating Temperature | 105°C |
| Max Supply Voltage | 3.63V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Number of ADC Channels | 13 |
| Number of A/D Converters | 1 |
| Number of I2C Channels | 1 |
| Number of I/Os | 22 |
| Number of Programmable I/O | 22 |
| Number of PWM Channels | 8 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package/Case | LQFP |
| Package Quantity | 250 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 12KB |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | C2000™ C28x Piccolo™ |
| TME | —1——$7.56—pcsView offer |
| Watchdog Timer | Yes |
| Width | 7.2mm |
